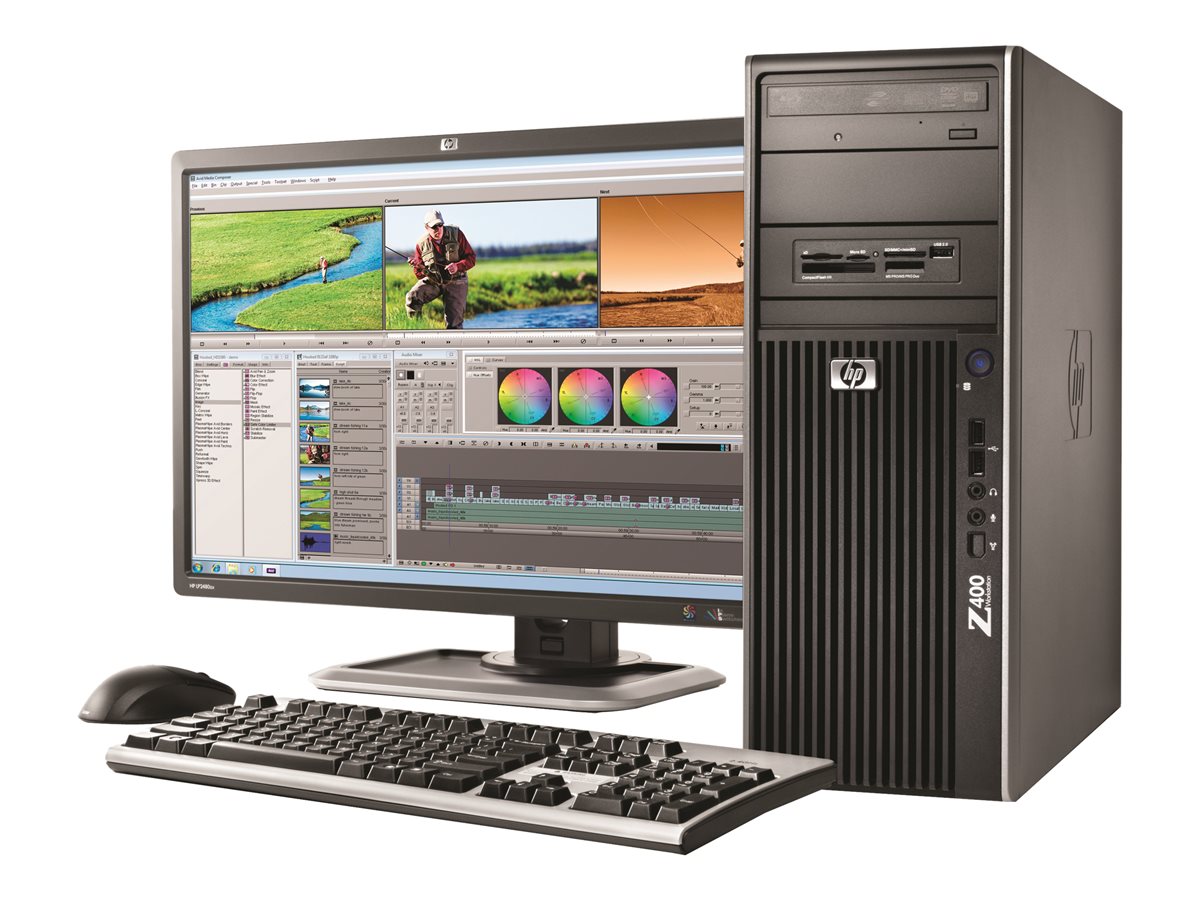

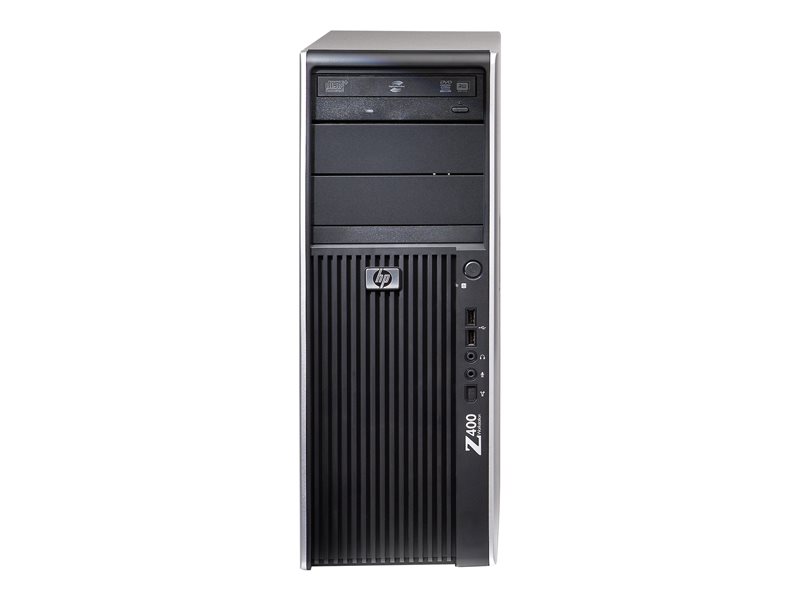

CMT - 1 x Xeon W3503 / 2.4 GHz - RAM 4 GB - HDD 500 GB - DVD SuperMulti - no graphics - Gigabit Ethernet - Win 7 Pro 64-bit - monitor: none - alloy metallic, jack black - CTO
| Main Specifications | |
|---|---|
| Product Description | HP Workstation z400 - CMT - Xeon W3503 2.4 GHz - 4 GB - HDD 500 GB |
| Type | Workstation - convertible mini tower - system password, power-on password, USB port control, audio ports control, network port control |
| Processor | 1 x Intel Xeon W3503 / 2.4 GHz (Dual-Core) |
| Processor Socket | LGA1366 Socket |
| Processor Main Features | Intel QuickPath Interconnect |
| Cache Memory | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | 4 GB (installed) / 24 GB (max) - DDR3 SDRAM - ECC |
| Storage Controller | RAID (SATA 3Gb/s) |
| Hard Drive | HDD 500 GB |
| Optical Storage | DVD SuperMulti |
| Graphics Controller | No graphics |
| Audio Output | Stereo - integrated |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition |
| Color | Alloy metallic, jack black |
| Dimensions (WxDxH) | 6.6 in x 17.9 in x 17.7 in |
| Weight | 29.76 lbs |
| Pricing Type | CTO |
| General | |
| Type | Workstation |
| Recommended Use | Small business, corporate business |
| Product Form Factor | Convertible mini tower |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Color | Alloy metallic, jack black |
| Expansion / Connectivity | |
| Bays | 3 (total) / 2 (free) x external 5.25" x 1/2H ¦ 2 (total) / 1 (free) x internal 3.5" x 1/3H |
| Slots | 6 DIMM 240-pin ¦ 1 (total) / 0 (free) x CPU ¦ 2 (total) / 2 (free) x PCI - full-length, full-height ¦ 2 (total) / 1 (free) x PCIe 2.0 x16 ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe x8 (x4 mode) |
| Interfaces | 8 x USB 2.0 (2 front, 6 rear) ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 1 x audio line-in ¦ 2 x microphone (1 in front) ¦ 1 x FireWire (1 in front) ¦ 1 x headphones (1 in front) |
| Miscellaneous | |
| Features | System password, power-on password, USB port control, audio ports control, network port control |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Compliant Standards | RoHS, ACPI 2.0c, WEEE |
| Pricing Type | CTO |
| RAM | |
| Installed Size | 4 GB / 24 GB (max) |
| Technology | DDR3 SDRAM - ECC |
| Form Factor | DIMM 240-pin |
| Slots | 6 (total) |
| Features | Unbuffered |
| Networking | |
| Type | Integrated |
| Interface (Bus) Type | PCI Express x1 |
| Ethernet Controller | Broadcom BCM5764M |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | ASF 2.0 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 475 Watt |
| 80 PLUS Certification | 80 PLUS |
| Efficiency | 85% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - integrated |
| Controller Interface Type | SATA 3Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | DVD±RW (±R DL) / DVD-RAM DVD SuperMulti - SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Audio Output | |
| Type | Integrated |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 500 GB |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 17.9 in |
| Height | 17.7 in |
| Weight | 29.76 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon W3503 |
| Clock Speed | 2.4 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel QuickPath Interconnect |
| CPU Socket | LGA1366 Socket |
| Chipset Type | Intel X58 Express |
