Power enclosure - 9 - 24 V - Ethernet 10/100
| Main Specifications | |
|---|---|

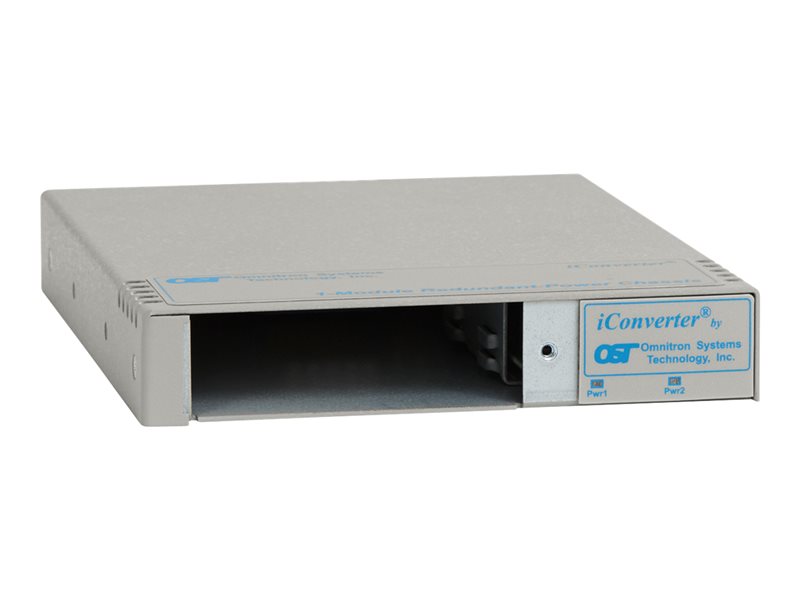

| Product Description | Omnitron iConverter 1-Module Redundant Power Chassis - power enclosure |
| Device Type | Power enclosure - external |
| Weight | 23.98 oz |
| Input Voltage | 9 - 24 V |
| Output Voltage | 3.3 V |
| Input Connectors | 2 pin terminal block |
| Networking | Ethernet 10/100 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c |
| Dimensions (WxDxH) | 5.4 in x 6.8 in x 1 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Power enclosure - external |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 540,000 hours |
| Compliant Standards | FCC Class A certified, UL, AS/NZS 3548, RoHS, WEEE, REACH, VCCI Class A |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | 9 - 24 V |
| Input Connectors | 2 pin terminal block |
| Output Voltage | 3.3 V |
| Dimensions & Weight | |
| Width | 5.4 in |
| Depth | 6.8 in |
| Height | 1 in |
| Weight | 23.98 oz |
