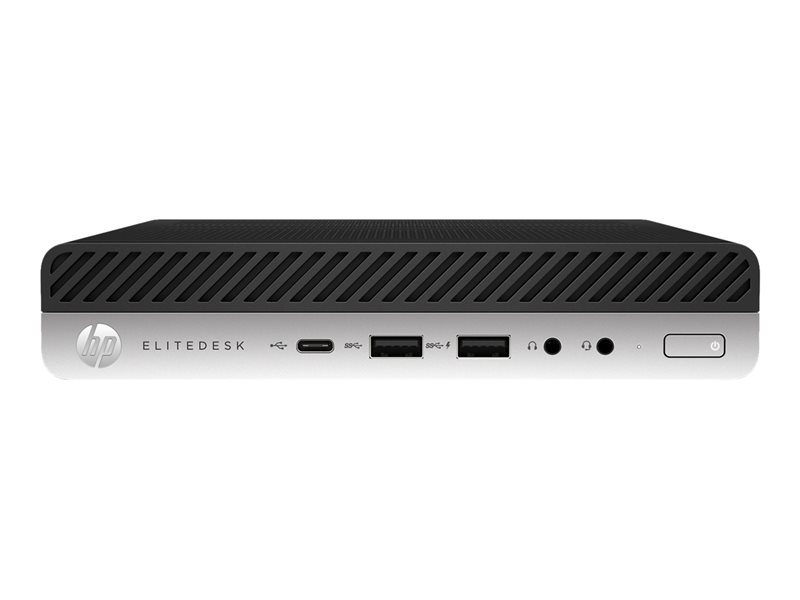

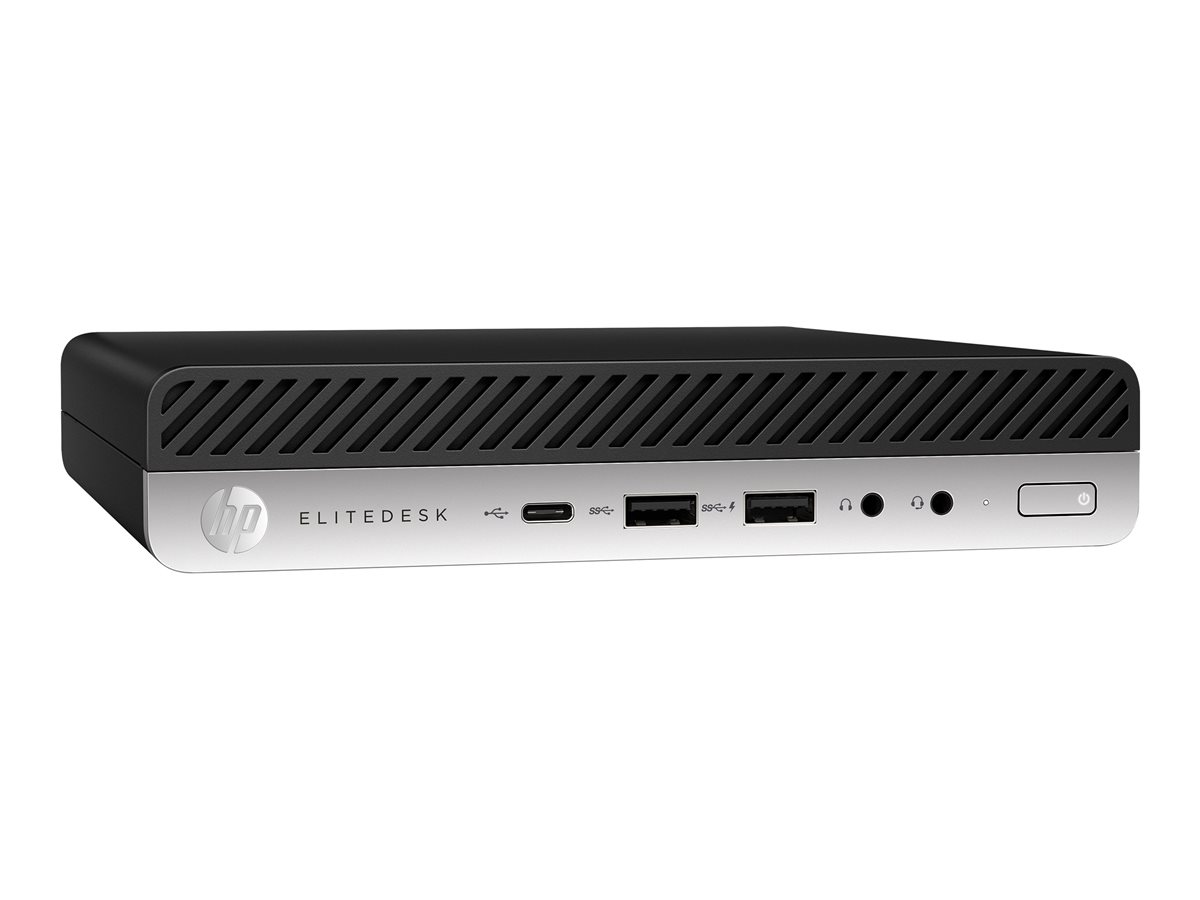

Mini desktop - Core i5 7500T / 2.7 GHz - vPro - RAM 8 GB - SSD 256 GB - NVMe, TLC - HD Graphics 630 - Gigabit Ethernet WLAN: - 802.11a/b/g/n/ac, Bluetooth 4.2 - Win 10 Pro 64-bit - monitor: none - keyboard: US - Smart Buy
| Main Specifications | |
|---|---|
| Product Description | HP EliteDesk 800 G3 - mini desktop - Core i5 7500T 2.7 GHz - vPro - 8 GB - SSD 256 GB - US |
| Type | Personal computer - mini desktop |
| Platform Technology | Intel vPro Platform |
| Localization | Language: English / region: United States |
| Processor | Intel Core i5 (7th Gen) 7500T / 2.7 GHz (, up to 3.3 GHz, (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB - PCI Express - M.2 2280 - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel HD Graphics 630 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.2 |
| Keyboard | US |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Windows 10 Pro 64-bit Edition |
| Software Included | Skype, Microsoft Security Essentials, HP SoftPaq Download Manager, HP Recovery Manager, HP Support Assistant, HP ePrint, HP Hotkey Support, HP Systems Software Manager, HP Velocity, HP Secure Erase, HP Client Catalog, HP Driver Packs, HP BIOS Config Utility, HP JumpStart, HP Noise Cancellation, HP Client Security Suite Gen3, HP Notifications, HP Manageability & Integration Kit |
| Dimensions (WxDxH) | 7 in x 6.9 in x 1.3 in |
| Weight | 2.67 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Platform Technology | Intel vPro Platform |
| Type | Personal computer |
| Product Form Factor | Mini desktop |
| Built-in Devices | Hood sensor |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" x 1/8H |
| Slots | 1 (total) / 0 (free) x CPU ¦ 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (x1 mode) ¦ 1 (total) / 0 (free) x M.2 Card - 2280 (x4 mode) |
| Interfaces | 6 x USB 3.1 Gen 1 (2 front, 4 rear) (two of them with wake functionality, one of them is charging) ¦ 1 x USB-C 3.1 Gen 1 (1 in front) (charging) ¦ 1 x headphones/microphone (1 in front) ¦ 3 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones (1 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | ACPI, CCC, Common Criteria EAL4+, CECP, SEPA, low halogen |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 8265 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, Bluetooth 4.2 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Efficiency | 89% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 630 Dynamic Video Memory Technology |
| Video Interfaces | DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition English |
| Software | Skype, Microsoft Security Essentials, HP SoftPaq Download Manager, HP Recovery Manager, HP Support Assistant, HP ePrint, HP Hotkey Support, HP Systems Software Manager, HP Velocity, HP Secure Erase, HP Client Catalog, HP Driver Packs, HP BIOS Config Utility, HP JumpStart, HP Noise Cancellation, HP Client Security Suite Gen3, HP Notifications, HP Manageability & Integration Kit |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 6.9 in |
| Height | 1.3 in |
| Weight | 2.67 lbs |
| Keyboard | |
| Keyboard Name | HP Business Slim Keyboard |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i5 (7th Gen) 7500T |
| Clock Speed | 2.7 GHz |
| Max Turbo Speed | 3.3 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel Q270 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
