Tower - 1 x Xeon E5-1650V4 / 3.6 GHz - RAM 64 GB - SSD 256 GB - TCG Opal Encryption - Quadro K620 - Gigabit Ethernet - Win 7 Pro 64-bit (includes Win 10 Pro 64-bit License) - monitor: none
| Main Specifications | |
|---|---|

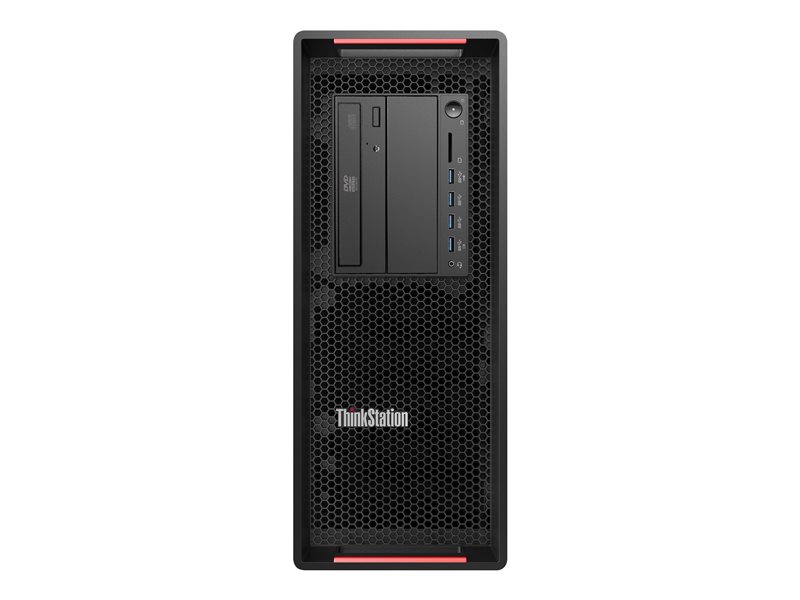

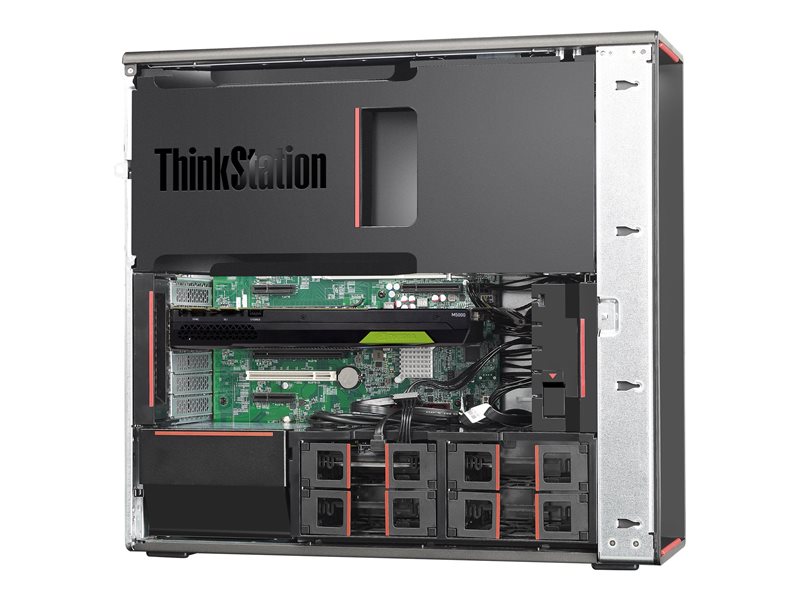

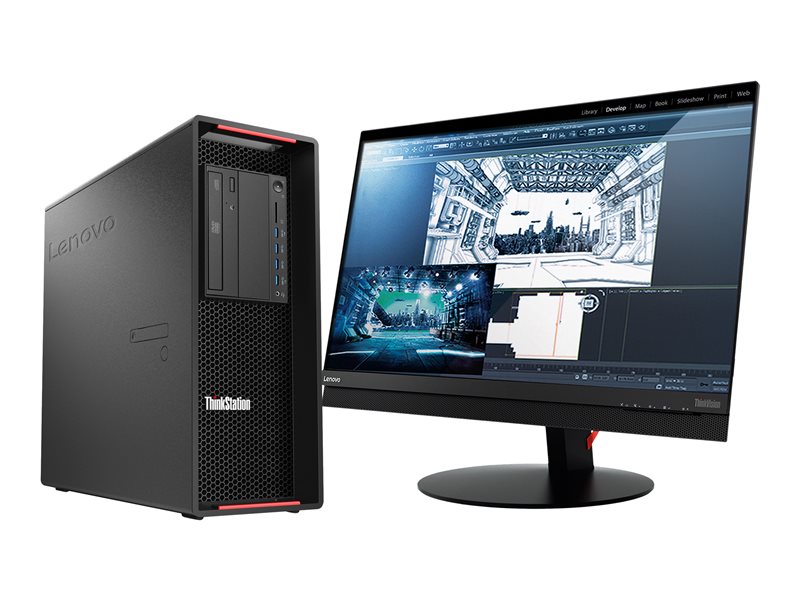

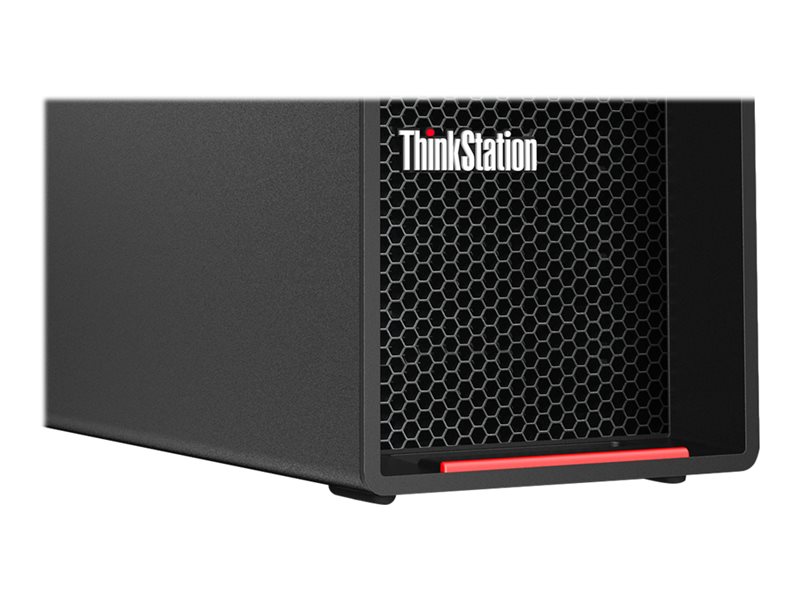

| Product Description | Lenovo ThinkStation P510 - tower - Xeon E5-1650V4 3.6 GHz - 64 GB - SSD 256 GB |
| Type | Workstation - tower |
| Processor | 1 x Intel Xeon E5-1650V4 / 3.6 GHz (, up to 4 GHz, (6-core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 15 MB |
| Cache Per Processor | 15 MB |
| RAM | 64 GB (installed) / 256 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB - 2.5" - TCG Opal Encryption |
| Graphics Controller | NVIDIA Quadro K620 |
| Video Memory | 2 GB |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition (downgrade from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit License |
| Dimensions (WxDxH) | 6.9 in x 18.5 in x 17.3 in |
| Weight | 48.94 lbs |
| General | |
| Type | Workstation |
| Product Form Factor | Tower |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Expansion / Connectivity | |
| Bays | 2 external 5.25" x 1/2H ¦ 4 (total) / 3 (free) x internal 3.5" |
| Slots | 8 (total) / 4 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x CPU ¦ 2 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 2.0 x1 - full-length, full-height ¦ 1 (total) / 1 (free) x PCI - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 2.0 x4 - half-length, full-height ¦ 1 (total) / 1 (free) x Flex Connector |
| Interfaces | 8 x USB 3.0 (4 front, 4 rear) (one of them is Always On, one of them is Diagnostic) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x microphone ¦ 4 x USB 2.0 ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x DisplayPort ¦ 1 x DVI-I (dual link) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, GREENGUARD |
| RAM | |
| Installed Size | 64 GB / 256 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 4 (empty) |
| Features | Registered, quad channel memory architecture |
| Configuration Features | 4 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I218-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 650 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | 15 MB |
| Cache Per Processor | 15 MB |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA Quadro K620 |
| Video Memory | 2 GB |
| Video Interfaces | DVI, DisplayPort |
| Operating System / Software | |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition (available through downgrade rights from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit License |
| Hard Drive | |
| Type | SSD - 2.5" |
| Capacity | 1 x 256 GB |
| Features | TCG Opal Encryption |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 18.5 in |
| Height | 17.3 in |
| Weight | 48.94 lbs |
| Keyboard | |
| Interface | USB |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Features | Scroll |
| Processor / Chipset | |
| CPU | Intel Xeon E5-1650V4 |
| Clock Speed | 3.6 GHz |
| Max Turbo Speed | 4 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C612 |
