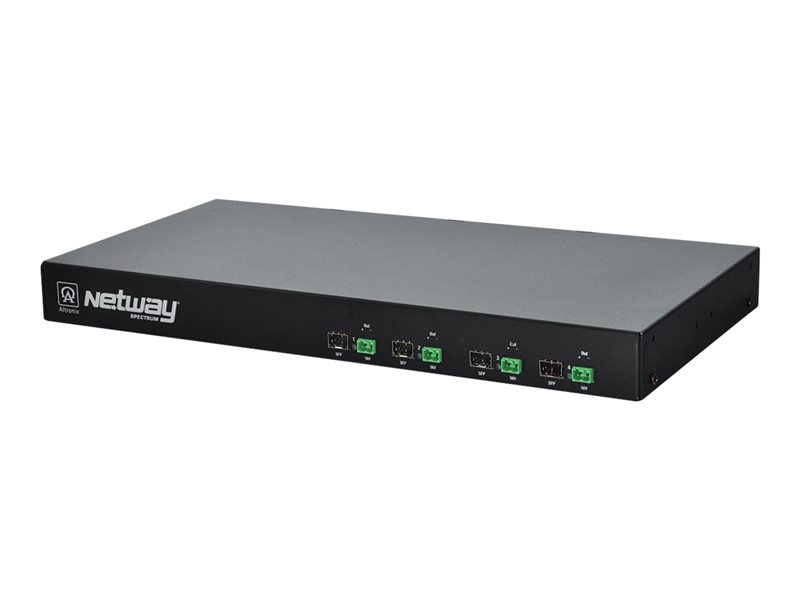

Switch - 4 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable - High PoE / PoE+ (120 W) - DC power
| Main Specifications | |
|---|---|
| Product Description | Altronix NetWaySP4 - switch - 4 ports - rack-mountable |
| Device Type | Switch - 4 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | High PoE / PoE+ |
| PoE Budget | 120 W |
| Features | Auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Power | DC 48 - 56 V |
| Dimensions (WxDxH) | 19.1 in x 8.5 in x 1.7 in |
| Weight | 2.56 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 4 ports |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | High PoE / PoE+ |
| PoE Budget | 120 W |
| Features | Auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 10/100/1000 Base-T RJ-45 PoE+ / High PoE - 60 W ¦ 4 x Gigabit LAN SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 4 rubber feet |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, UL 60950-1, cULus |
| Power | |
| Voltage Required | DC 48 - 56 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 85% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 8.5 in |
| Height | 1.7 in |
| Weight | 2.56 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.7 lbs |
