Multifunction printer - color - ink-jet - Ledger/A3 (11.7 in x 17 in) (original) - A3/Ledger (media) - up to 22 ppm (copying) - up to 24 ppm (printing) - 835 sheets - 33.6 Kbps - Gigabit LAN, Wi-Fi(n), NFC, USB 3.0, USB 2.0 host
| Main Specifications | |
|---|---|

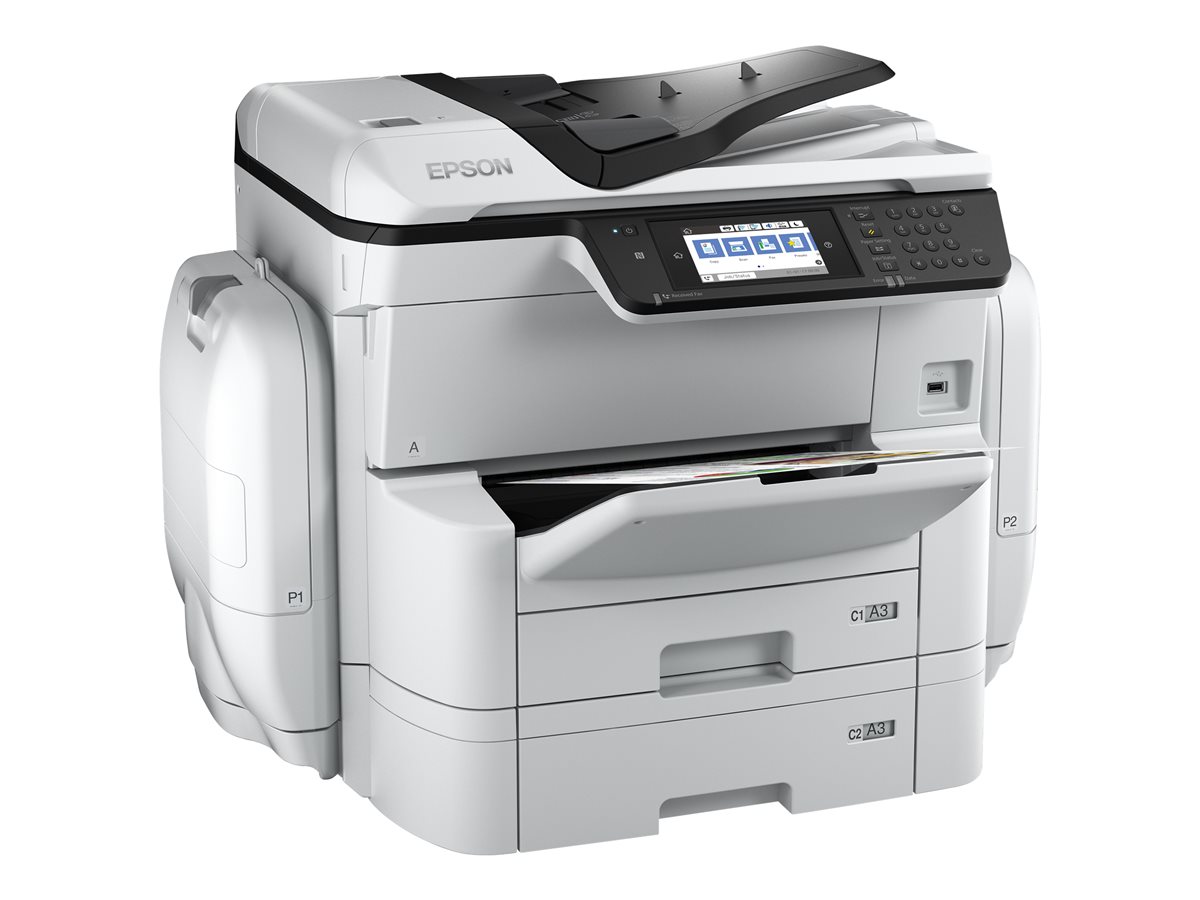

| Product Description | Epson WorkForce Pro WF-C869R - multifunction printer - color |
| Device Type | Multifunction printer |
| Fax Type | Super G3 - plain paper |
| Printing Technology | Ink-jet (color) |
| Inkjet Technology | Epson PrecisionCore - 4-ink |
| Monthly Duty Cycle (max) | 75000 pages |
| Recommended Monthly Volume | 10000 pages |
| Max Copying Speed | Up to 22 ppm (mono) / up to 21 ppm (color) |
| Max Printing Speed | Up to 24 ppm (mono) / up to 24 ppm (color) |
| Max Printing Resolution | Up to 4800 x 1200 dpi (mono) / up to 4800 x 1200 dpi (color) |
| Max Printing Resolution Class | Up to 4800 x 1200 dpi (mono) / up to 4800 x 1200 dpi (color) |
| Max Fax Transmission Speed | 33.6 Kbps |
| Scanning | 1200 x 2400 dpi |
| Display | 5" |
| Original Size | Ledger/A3 (11.7 in x 17 in) (max) |
| Original Type | Sheets |

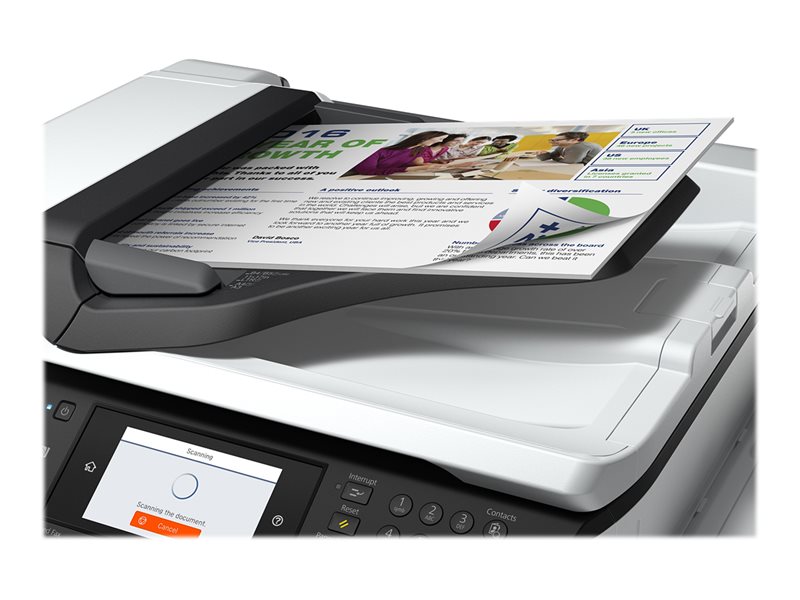

| Document Feeder Capacity | 50 sheets |
| Media Size | 13 in x 47.2 in (max) |
| Media Type | Envelopes, plain paper, photo paper, bond paper, glossy photo paper, matte paper |
| Standard Media Capacity | 835 sheets |
| Max Media Capacity | 1835 sheets |

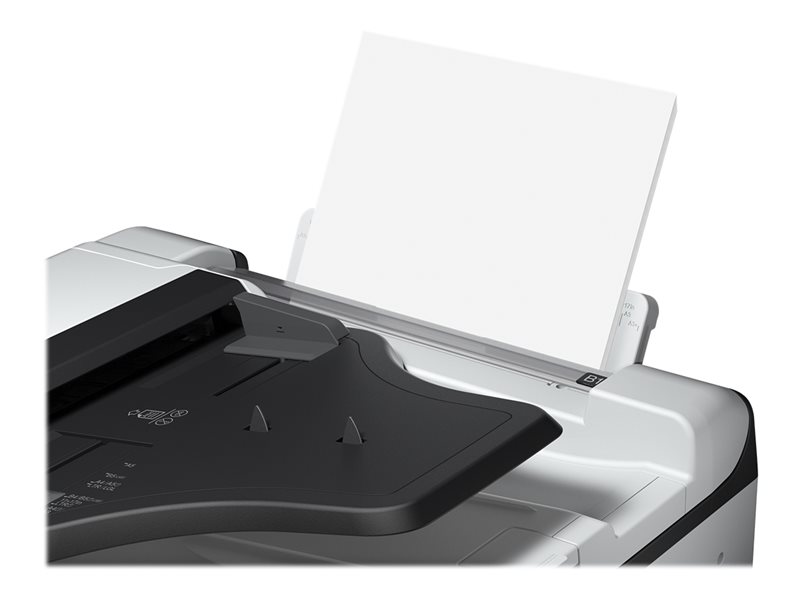

| Bypass Feeder Capacity | 85 sheets |
| Automatic Duplexing | Yes (copying) Yes (printing) Yes (scanning) |
| Connection Availability | Yes |
| Interface | Gigabit LAN, Wi-Fi(n), NFC, USB 3.0, USB 2.0 host |
| AirPrint Enabled | Yes |

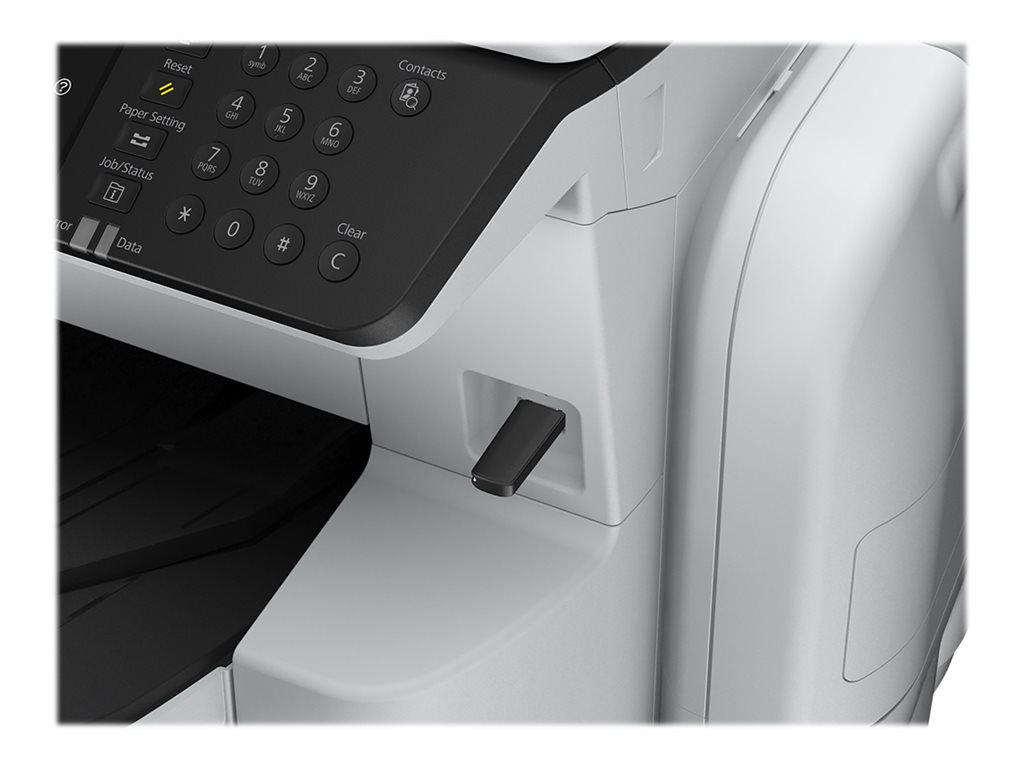

| Office Machine Features | Save to USB flash drive, scan to Cloud |
| Power | AC 120/230 V (50/60Hz) |
| Dimensions (WxDxH) | 31 in x 34.1 in x 27.6 in |
| Weight | 141.31 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Device Type | Multifunction printer |
| Fax Type | Plain paper |
| Printing Technology | Ink-jet - color |
| Monthly Duty Cycle (max) | 75000 pages |
| Recommended Monthly Volume | 10000 pages |
| Display Diagonal Size | 5" |
| Display Color Support | Color |

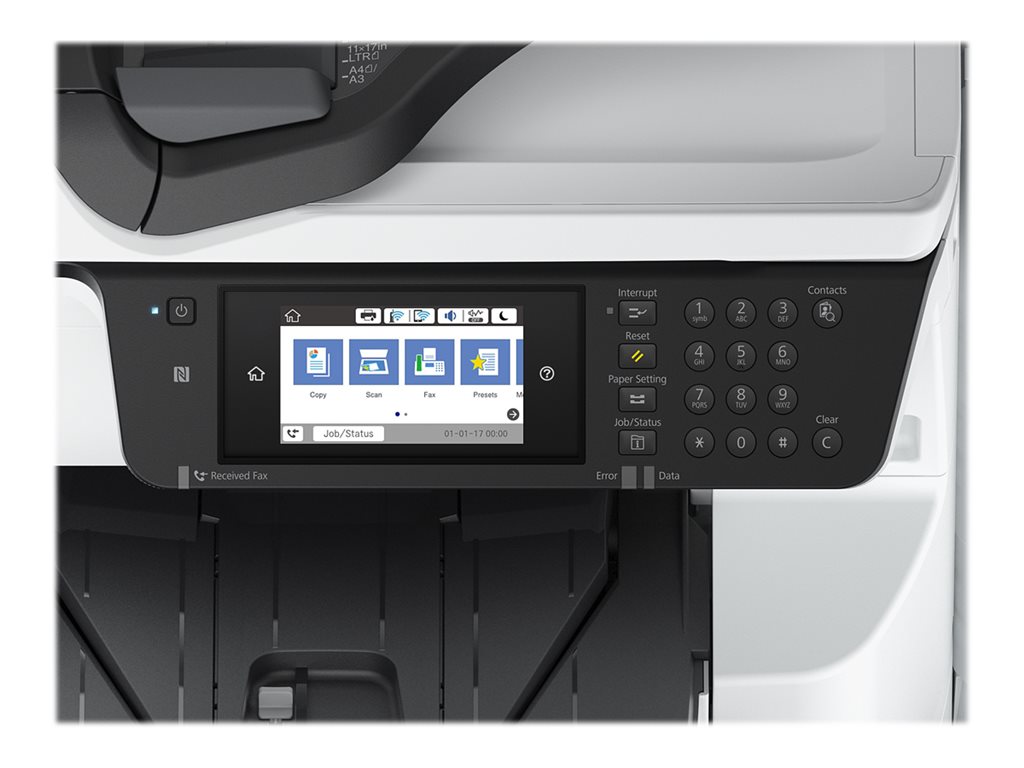

| Display Features | Touch screen |
| Connection Availability | Yes |
| Interface | Gigabit LAN, Wi-Fi(n), NFC, USB 3.0, USB 2.0 host |
| AirPrint Enabled | Yes |
| Office Machine Features | Save to USB flash drive, scan to Cloud |
| Miscellaneous | |

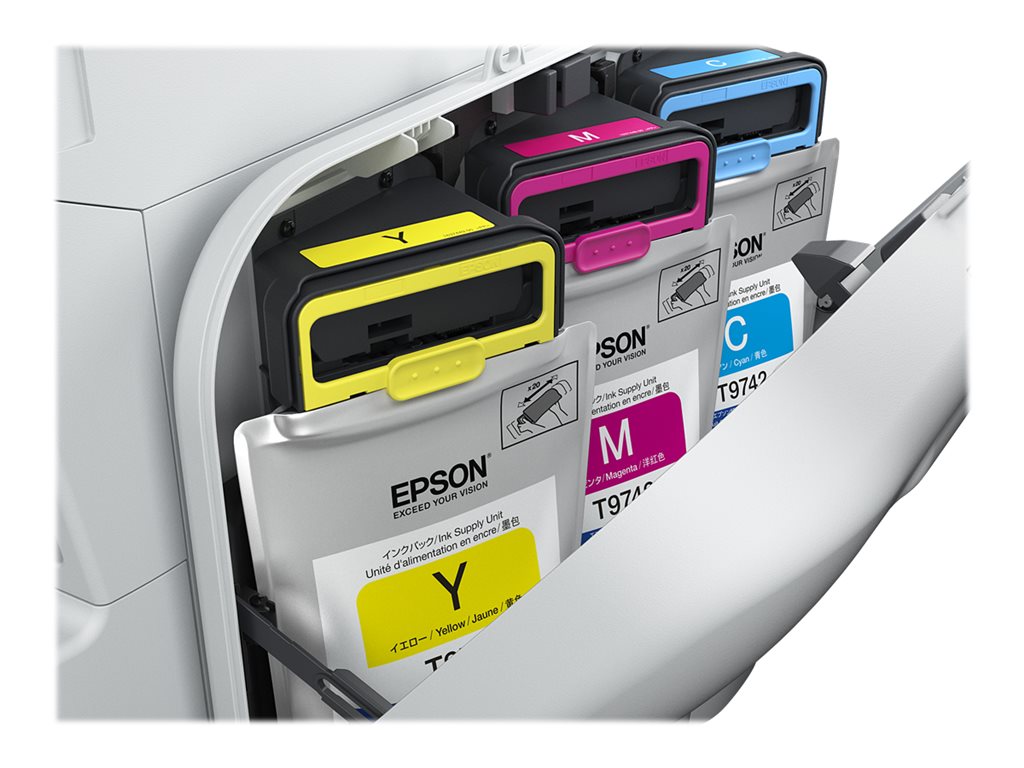

| Consumables Included | 1 x ink supply unit (black) ¦ 1 x ink supply unit (cyan) ¦ 1 x ink supply unit (magenta) ¦ 1 x ink supply unit (yellow) |
| Compliant Standards | CISPR 22 Class B, UL 60950, IC CS-03, FCC Part 15 B, FCC Part 68, RoHS, EMI, CAN/CSA C22.2 No. 60950 |
| Power | |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Power Consumption Operational | 40 Watt |
| Power Consumption Standby | 20 Watt |
| Power Consumption Sleep | 1.6 Watt |
| Environmental Parameters | |
| Sound Emission | 49 dBA (operating) |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Connections | |
| Interfaces | USB 2.0 host - 4 pin USB Type A ¦ USB 3.0 - 9 pin USB Type B ¦ Gigabit LAN - RJ-45 |
| Security Protocols & Features | WEP, WPA-PSK, Wi-Fi Direct |
| Operating System Support | MS Windows XP Professional x64 Edition, MS Windows XP SP3, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2003 R2, MS Windows Server 2012, MS Windows Server 2003 SP2, MS Windows Server 2012 R2, MS Windows Vista (32/64 bits), MS Windows 7 (32/64 bits), Windows 8 (32/64-bits), Windows 8.1 (32/64-bits), Windows 10 (32/64-bits), Apple Mac OS X 10.6.8 - macOS 10.12.x |
| Copying | |
| Max Copying Speed | Up to 22 ppm (mono) / up to 21 ppm (color) |
| Maximum Copies | 999 |
| Automatic Duplexing | Yes |
| Copying Features | Collation copy |
| Printing | |
| Inkjet Technology | Epson PrecisionCore |
| Max Printing Resolution | Up to 4800 x 1200 dpi (mono) / up to 4800 x 1200 dpi (color) |
| Max Printing Resolution Class | Up to 4800 x 1200 dpi (mono) / up to 4800 x 1200 dpi (color) |
| Max Printing Speed | Up to 24 ppm (mono) / up to 24 ppm (color) |
| Ink Cartridge Configuration | 4 individual ink tanks |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, black |
| Color | 4-ink |
| Minimum Ink Droplet Size | 3.7 pl |
| Printer Drivers / Emulations | PCL 6, PostScript 3, PCL 5, EPSON ESC/P-R |
| Ink Type | Epson DURABrite Pro inks |
| Automatic Duplexing | Yes |
| Scanning | |
| Scan Element | CIS |
| Automatic Duplexing | Yes |
| Optical Resolution | 1200 x 2400 dpi |
| Interpolated Resolution | 9600 x 9600 dpi |
| Color Depth | 24-bit |
| Color Depth (Internal) | 30-bit |
| Fax Machine | |
| Compatibility | Super G3 |
| Max Transmission Speed | 33.6 Kbps |
| Total Memory Capacity | Up to 550 pages |
| PC Faxing | Yes |
| Fax Machine Features | |
| Speed Dialing | 200 station(s) |
| Broadcast Transmission | Yes |
| Delayed Transmission | Yes |
| Features | Automatic redialing, color faxing |
| Document & Media Handling | |
| Max Original Size | Ledger/A3 (11.7 in x 17 in) |
| Original Type | Sheets |
| Document Feeder Capacity | 50 sheets |
| Max Media Size | A3/Ledger |
| Supported Media Type | Envelopes, plain paper, photo paper, bond paper, glossy photo paper, matte paper |
| Supported Media Sizes | Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), B5 (6.93 in x 9.83 in), A3 (11.7 in x 16.5 in), B4 (9.83 in x 13.9 in), A6 (4.13 in x 5.83 in), Ledger B Size (11 in x 17 in), Super B (13 in x 19 in), 4 in x 6 in, 3.5 in x 5 in, 5 in x 7 in, 8 in x 10 in |
| Supported Envelope Sizes | US No 10 (4.1 in x 9.5 in) |
| Standard Media Capacity | 835 sheets |
| Max Media Capacity | 1835 sheets |
| Bypass Feeder Capacity | 85 sheets |

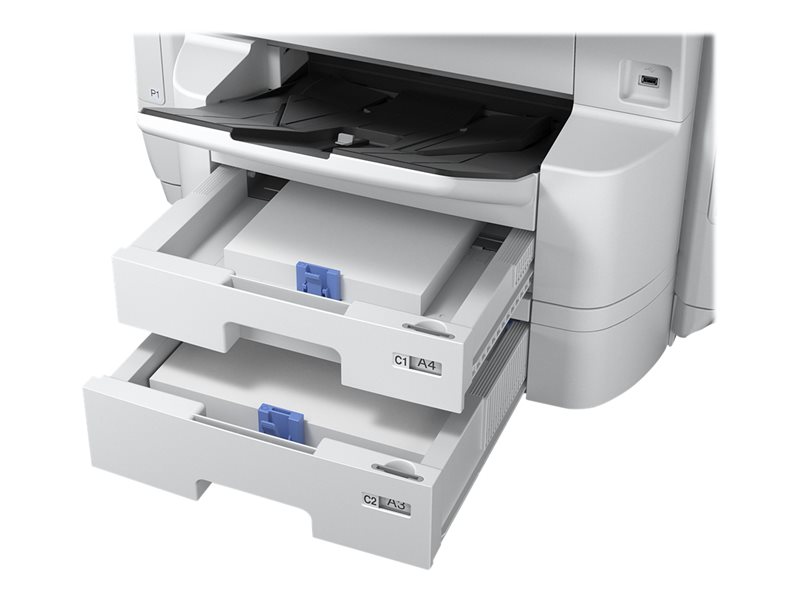

| Document & Media Handling Details | Input tray - 500 sheets ¦ Input tray - 250 sheets ¦ ADF - 50 sheets ¦ Bypass tray - 85 sheets |
| Speed Details | Printing: up to 35 ppm - B/W ¦ Printing: up to 35 ppm - color ¦ Printing: up to 16 ppm (A4) - B/W duplex (ISO/IEC 24734) ¦ Printing: up to 16 ppm (A4) - color duplex (ISO/IEC 24734) ¦ Copying: up to 22 ipm - B/W (ISO/IEC 24735) ¦ Copying: up to 21 ipm - color (ISO/IEC 24735) ¦ Printing: up to 24 ppm - B/W (ISO/IEC 24734) ¦ Printing: up to 24 ppm - color (ISO/IEC 24734) ¦ Scanning: up to 25 ipm - B/W ¦ Scanning: up to 25 ipm - color |
| Dimensions & Weight | |
| Width | 31 in |
| Depth | 34.1 in |
| Height | 27.6 in |
| Weight | 141.31 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
