Server - blade - 2-way - 2 x Xeon Gold 5120 / 2.2 GHz - RAM 96 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - G200e - 40Gb Fibre Channel over Ethernet (FCoE) - no OS - monitor: none
| Main Specifications | |
|---|---|

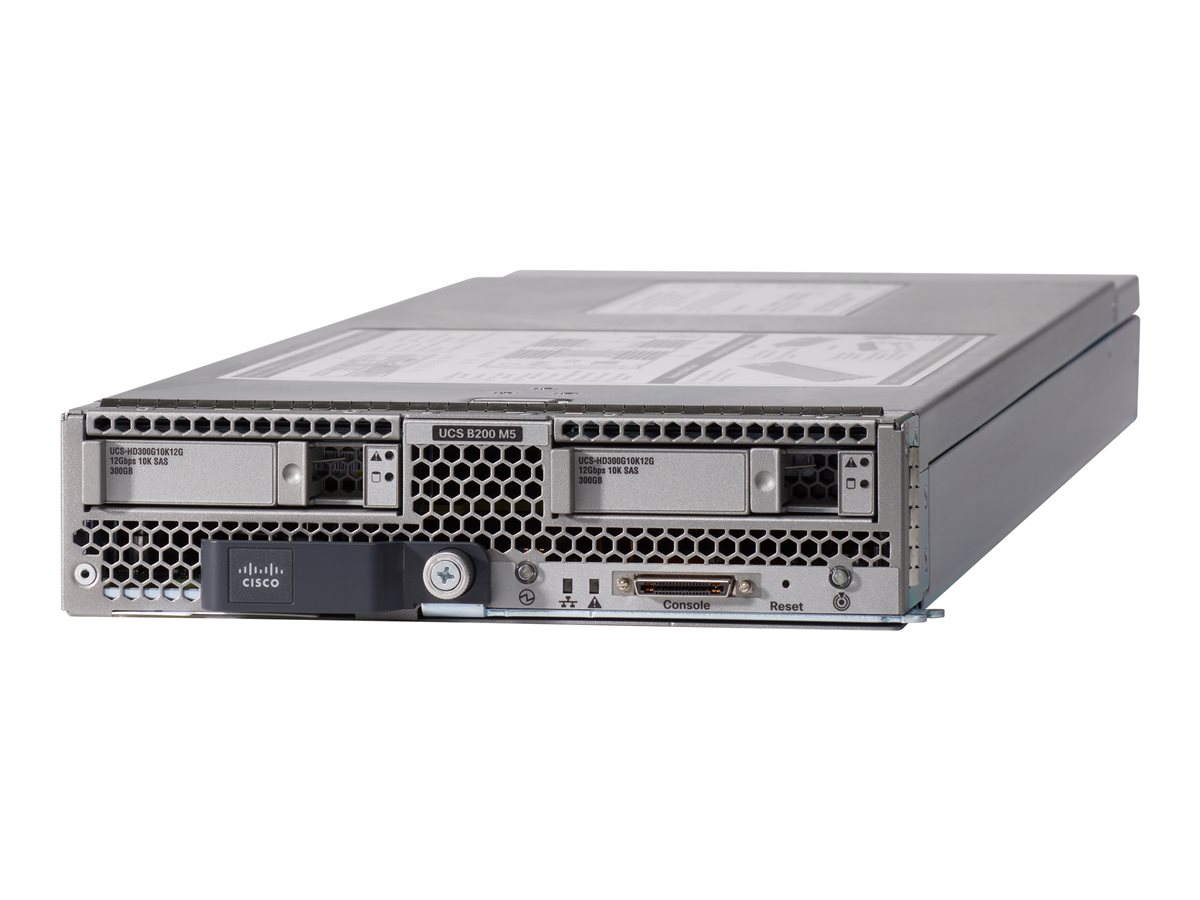

| Product Description | Cisco UCS B200 M5 Blade Server - blade - Xeon Gold 5120 2.2 GHz - 96 GB - no HDD |
| Type | Server - blade |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon Gold 5120 / 2.2 GHz (14-core) |
| Cache Memory | 38.5 MB |
| Cache Per Processor | 19.25 MB |
| RAM | 96 GB (installed) / 3072 GB (max) - DDR4 SDRAM - Advanced ECC |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200e |
| Networking | 40Gb FCoE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 8 in x 24.4 in x 2 in |
| Weight | 9.5 lbs |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 0 (free) x CPU ¦ 2 (total) / 2 (free) x M.2 Card ¦ 2 (total) / 2 (free) x SD card ¦ 2 (total) / 2 (free) x expansion slot |
| Interfaces | 1 x KVM ¦ 1 x USB 3.0 (1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, 2 x blanking panels, 12 x DIMM blanks |
| Compliant Standards | ACPI 4.0 |
| RAM | |
| Installed Size | 96 GB / 3072 GB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 18 (empty) |
| Features | Load-Reduced DIMM (LRDIMM), through-silicon via DIMMs (TSV DIMMs) |
| Configuration Features | 6 x 16 GB |
| Networking | |
| Ethernet Controller | Cisco UCS Virtual Interface Card 1340 |
| Data Link Protocol | 40Gb Fibre Channel over Ethernet (FCoE) |
| Remote Management Controller | Cisco Integrated Management Controller |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Cache Memory | |
| Installed Size | 38.5 MB |
| Cache Per Processor | 19.25 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 24.4 in |
| Height | 2 in |
| Weight | 9.5 lbs |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 5120 |
| Clock Speed | 2.2 GHz |
| Number of Cores | 14-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
