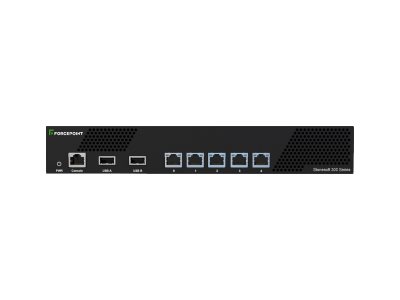

Spare - security appliance - 5 ports - 1GbE - desktop
| Main Specifications | |
|---|---|
| Product Description | Forcepoint NGFW 321 - Spare - security appliance |
| Device Type | Security appliance |
| Form Factor | Desktop |
| Ports Qty | 5 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Firewall throughput (1518-byte UDP): 4 Gbps ¦ Maximum inspection throughput: 700 Mbps ¦ NGFW throughput: 200 Mbps ¦ SSL inspection throughput: 150 Mbps ¦ Throughput (64-byte packet size): 800000 packets per second ¦ Connection rate (TCP): 15000 connections per second ¦ VPN throughput (128-bit AES IPSec): 1 Gbps |
| Capacity | Tagged VLANs: unlimited ¦ Concurrent mVPN clients: unlimited ¦ Concurrent connections: 2000000 ¦ Inspected concurrent connections: 100000 ¦ SSL VPN users: 500 ¦ Virtual contexts: 3 ¦ IPSec VPN tunnels: 6000 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 11.1 in x 7.7 in x 1.7 in |
| Weight | 3.97 lbs |
| General | |
| Device Type | Security appliance |
| Width | 11.1 in |
| Depth | 7.7 in |
| Height | 1.7 in |
| Weight | 3.97 lbs |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T - RJ-45 ¦ 1 x serial - RJ-45 ¦ 2 x USB - Type A |
| Miscellaneous | |
| MTBF | 120,000 hours |
| Compliant Standards | EN 60950, EN55022, EN55024, UL 60950, CB, FCC Part 15 |
| Networking | |
| Form Factor | Desktop |
| Ports Qty | 5 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec |
| Remote Management Protocol | HTTP, SSH |
| Performance | Firewall throughput (1518-byte UDP): 4 Gbps ¦ Maximum inspection throughput: 700 Mbps ¦ NGFW throughput: 200 Mbps ¦ SSL inspection throughput: 150 Mbps ¦ Throughput (64-byte packet size): 800000 packets per second ¦ Connection rate (TCP): 15000 connections per second ¦ VPN throughput (128-bit AES IPSec): 1 Gbps |
| Capacity | Tagged VLANs: unlimited ¦ Concurrent mVPN clients: unlimited ¦ Concurrent connections: 2000000 ¦ Inspected concurrent connections: 100000 ¦ SSL VPN users: 500 ¦ Virtual contexts: 3 ¦ IPSec VPN tunnels: 6000 |
| Features | Firewall protection, VPN support, High Availability, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), anti-malware protection, 3G USB Dongle Support, Traffic Control, anti-virus protection |
| Encryption Algorithm | 256-bit AES, 128-bit AES-GCM |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 18 Watt |
| Power Provided | 45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
