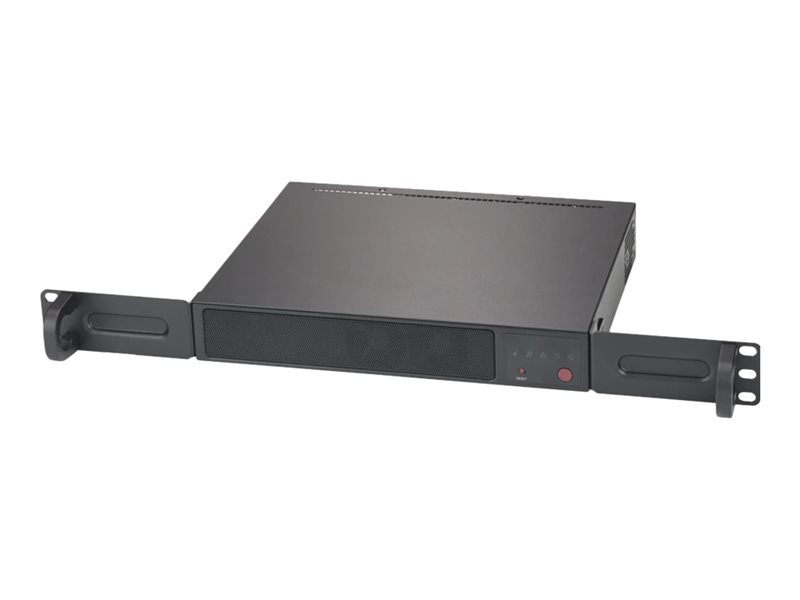

Server - Mini-ITX Box PC - 1U - 1-way - 1 x Xeon D-2123IT up to - RAM 0 GB - no HDD - AST2500 - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | Supermicro SuperServer E300-9D-4CN8TP - Mini-ITX Box PC - Xeon D-2123IT - 0 GB - no HDD |
| Type | Server - Mini-ITX Box PC |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon D-2123IT (Quad-Core) |
| RAM | 0 GB (installed) / 512 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s); NVMe |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Networking | 1GbE, 10GbE |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 10 in x 8.9 in x 1.7 in |
| Weight | 3.44 lbs |
| Manufacturer Warranty | Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year |
| General | |
| Type | Server |
| Product Form Factor | Mini-ITX Box PC - 1U |
| Server Scalability | 1-way |
| Internal Bays Qty | 1 |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card (Key B) ¦ 1 (total) / 1 (free) x Mini PCIe/mSATA |
| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) - SFP+ ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.0 ¦ 1 x VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS, ACPI 5.0 |
| RAM | |
| Installed Size | 0 GB / 512 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 4 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 512 GB Load-Reduced - ECC ¦ 256 GB registered - ECC ¦ 256 GB registered - non-ECC |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet, 2 x SFP+ |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | KVM over IP support |
| Power | |
| Device Type | Power adapter |
| Power Provided | 150 Watt |
| Power Factor Correction | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Storage Controller (2nd) | |
| Type | 1 x NVMe |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 10 in |
| Depth | 8.9 in |
| Height | 1.7 in |
| Weight | 3.44 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15 in |
| Shipping Depth | 5.6 in |
| Shipping Height | 10.9 in |
| Shipping Weight | 7.5 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon D-2123IT |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
