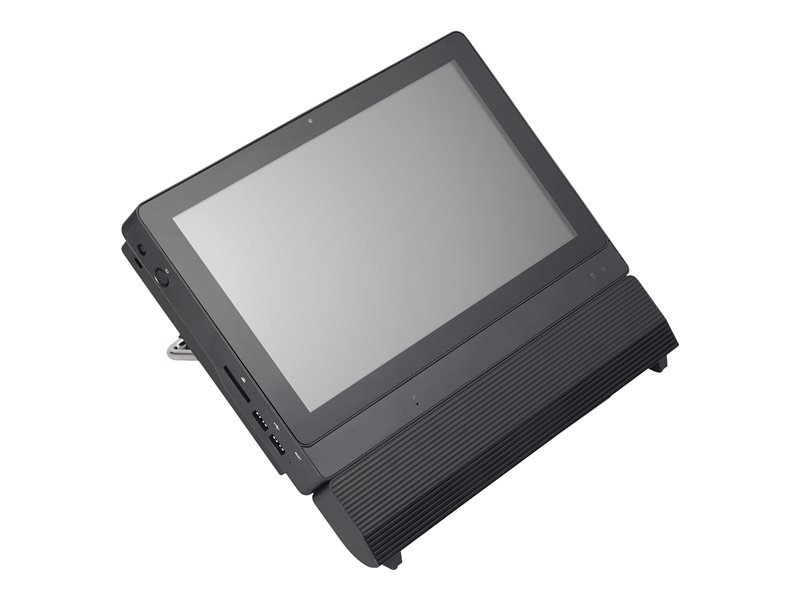

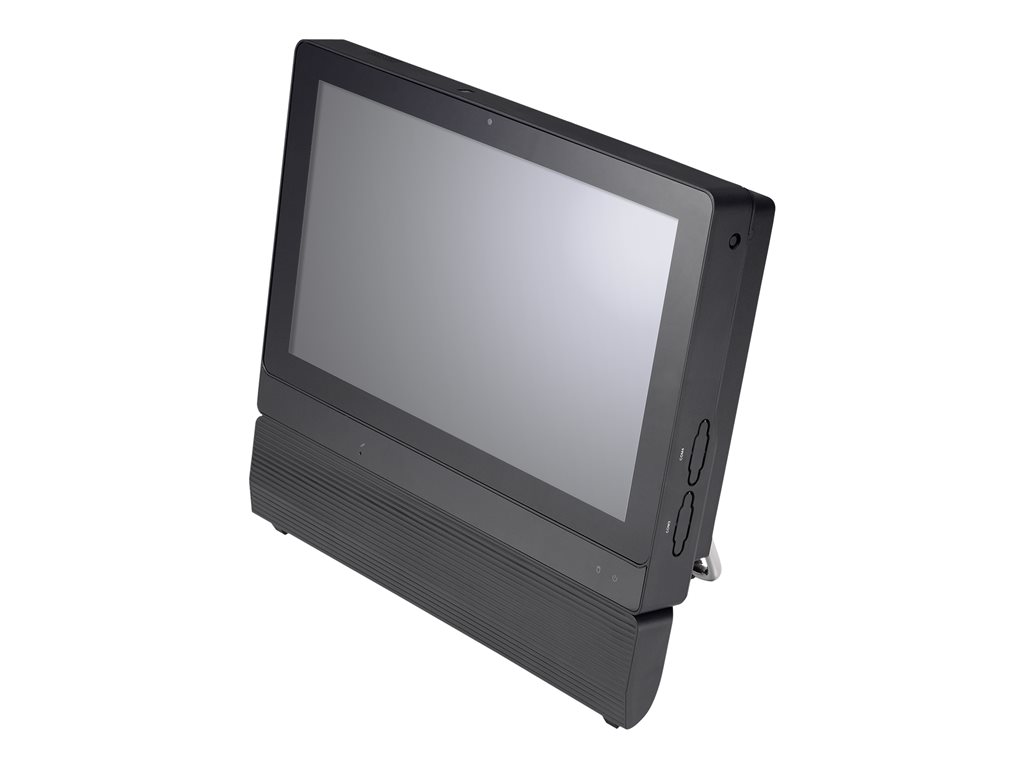

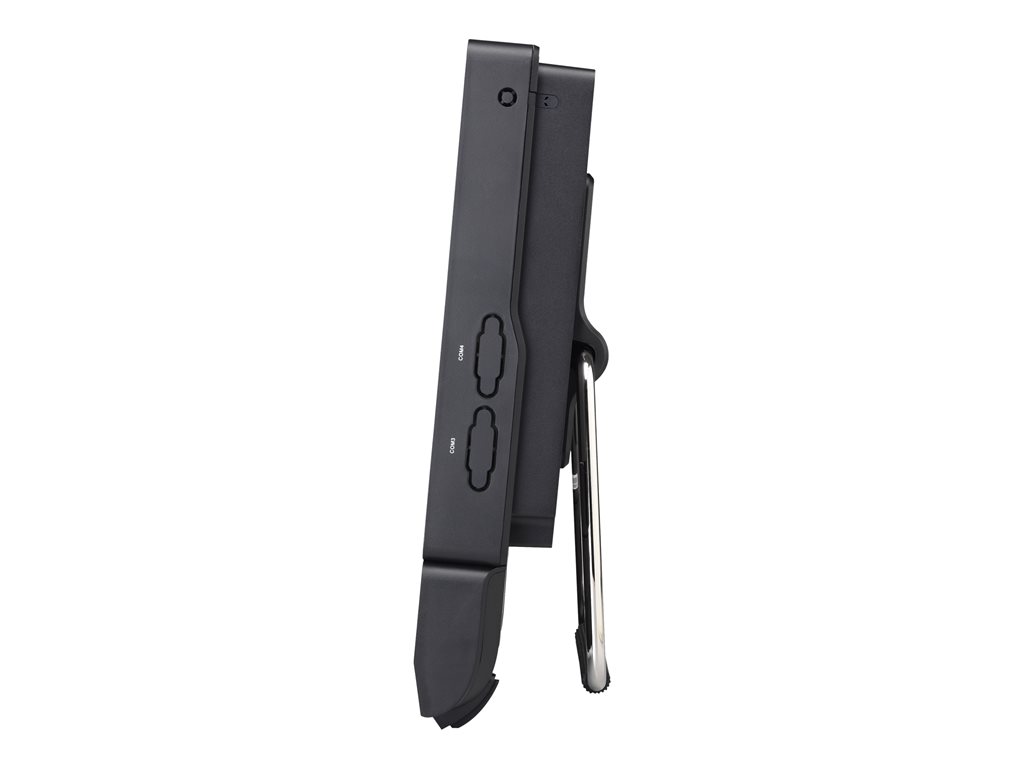

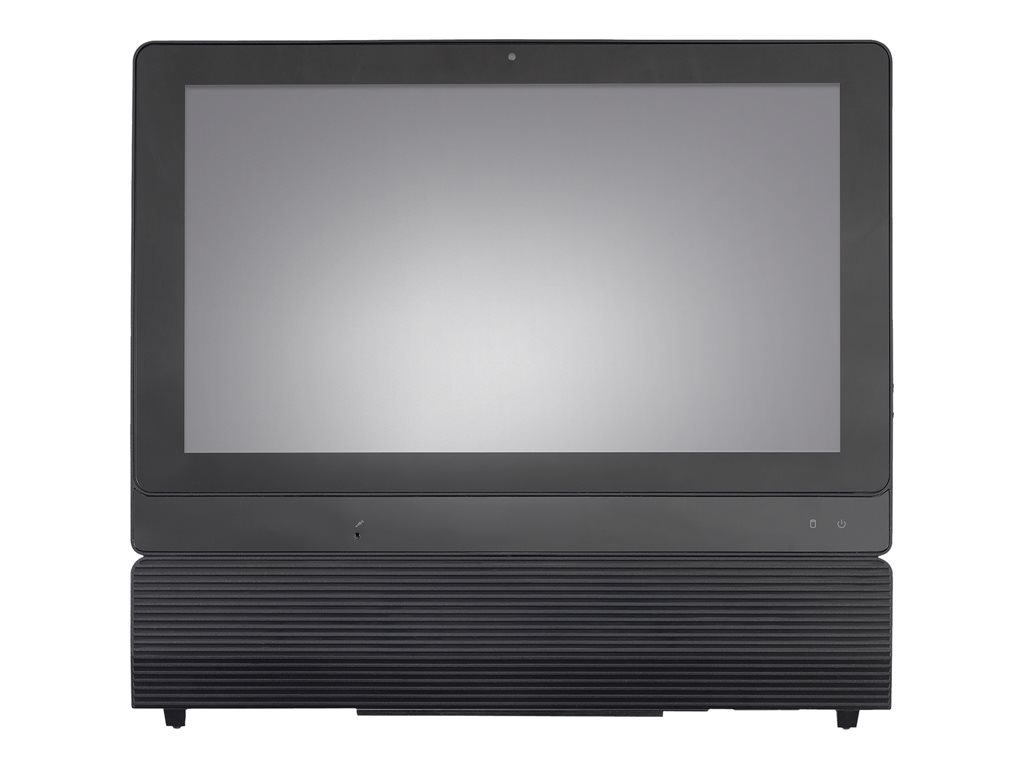

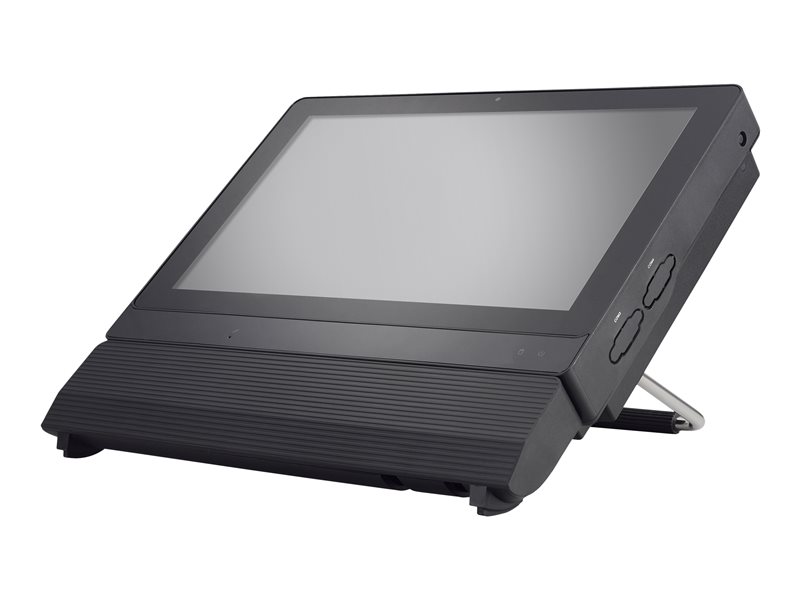

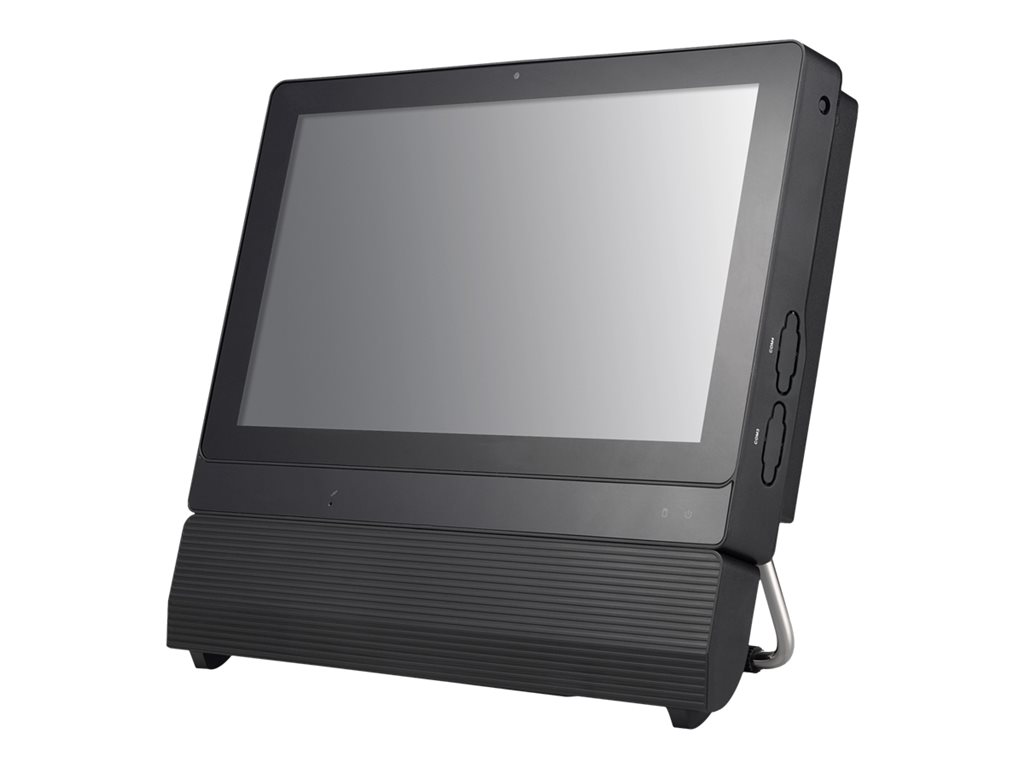

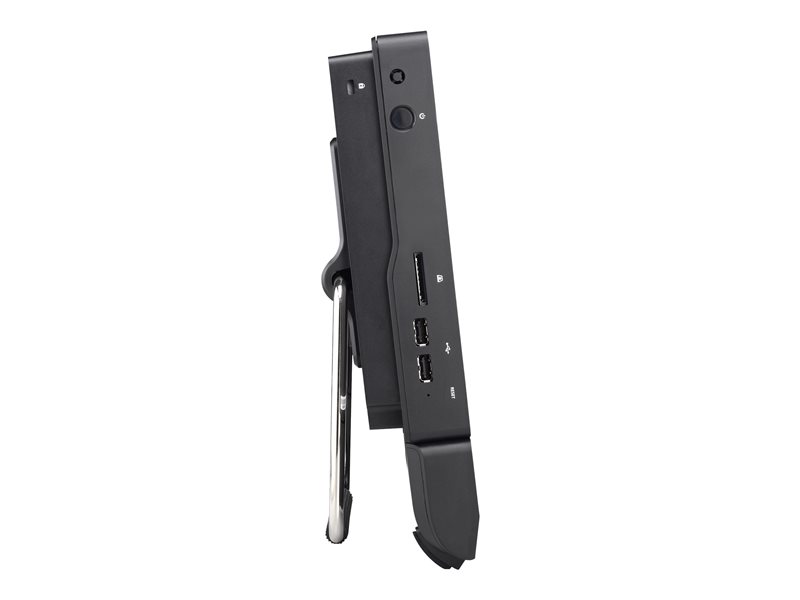

Barebone - all-in-one - 1 x Celeron 3865U up to ULV - RAM 0 GB - HD Graphics 610 - Gigabit Ethernet WLAN: - 802.11b/g/n, Bluetooth 4.1 - monitor: LED 11.6" 1366 x 768 (HD) touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC P20U - all-in-one - Celeron 3865U 1.8 GHz - 0 GB - no HDD - LED 11.6" |
| Type | PC barebone - all-in-one |
| Processor | 1 x Intel Celeron 3865U / 1.8 GHz ULV (Dual-Core) |
| Cache Memory | 2 MB L3 cache |
| Cache Per Processor | 2 MB |
| RAM | 0 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Monitor | 11.6" - LED - 1366 x 768 (HD) - 16:9 - touchscreen |
| Graphics Controller | Intel HD Graphics 610 |
| Camera | Yes |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11b/g/n, Bluetooth 4.1 |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | No operating system |
| Software Included | Drivers & Utilities |
| Color | Black |
| Dimensions (WxDxH) | 11.8 in x 2 in x 8 in |
| Weight | 5.45 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 2 years - carry-in |
| General | |
| Type | PC barebone |
| Product Form Factor | All-in-one |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key B-M) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key A-E) |

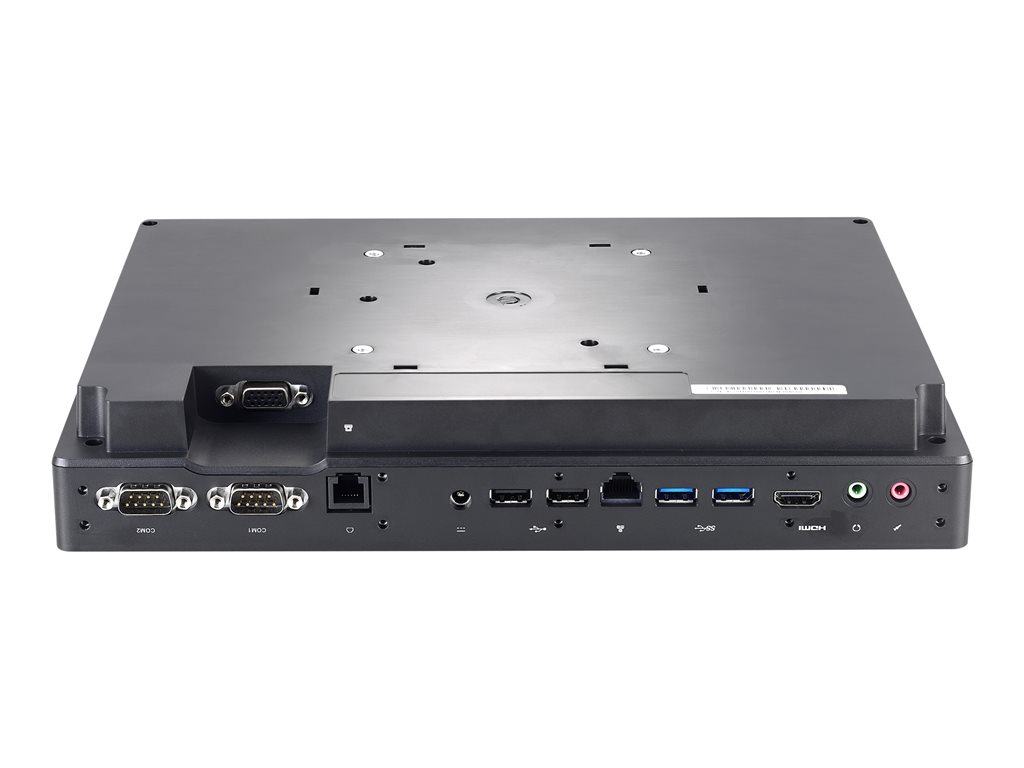

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out/headphones ¦ 1 x microphone ¦ 2 x USB 3.0 ¦ 2 x serial ¦ 1 x USB 2.0 (1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years - carry-in |
| Miscellaneous | |
| Included Accessories | 4 screws, M.2 screws, hard drive EMI shielding gasket |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, TELEC, IP54, EMI, EAC, RCM, EMC 2004/108/EC, LVD 2006/95/EC, ErP 2009/125/EC, R&TTE Directive 1999/5/EC, Energy-Related Products (ErP) Lot 3, FAC, RED |
| RAM | |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Networking | |
| Ethernet Controller | Intel I211 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8723BE-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.1 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | L3 cache - 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED - TN |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 11.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 250 cd/m² |
| Monitor Features | Anti-glare |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 610 |
| Video Interfaces | VGA, HDMI |
| Max Monitors Supported | 2 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 1 x center channel |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Hard Drive | |
| Type | No HDD |
| Camera | |
| Camera | Yes |
| Resolution (MP) | 1 Megapixel |
| Resolution | 720p |
| Features | CMOS sensor |
| Audio Input | |
| Type | Microphone |
| Dimensions & Weight | |
| Width | 11.8 in |
| Depth | 2 in |
| Height | 8 in |
| Weight | 5.45 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.47 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Intel Celeron 3865U |
| Clock Speed | 1.8 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Power Efficiency | Ultra Low Voltage (ULV) |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 6.0 |
