Barebone - Slim-PC - LGA1151 Socket - Intel H370 - no CPU - RAM 0 GB - GigE - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC slim DH370 - Slim-PC - no CPU - 0 GB - no HDD |
| Type | PC barebone - Slim-PC |
| Processor | No CPU |
| Processor Socket | LGA1151 Socket |
| RAM | 0 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | No graphics |
| Audio Output | Stereo |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | No operating system |
| Software Included | Drivers & Utilities |
| Color | Black |
| Dimensions (WxDxH) | 7.5 in x 6.5 in x 1.7 in |
| Weight | 2.87 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years |
| General | |
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |

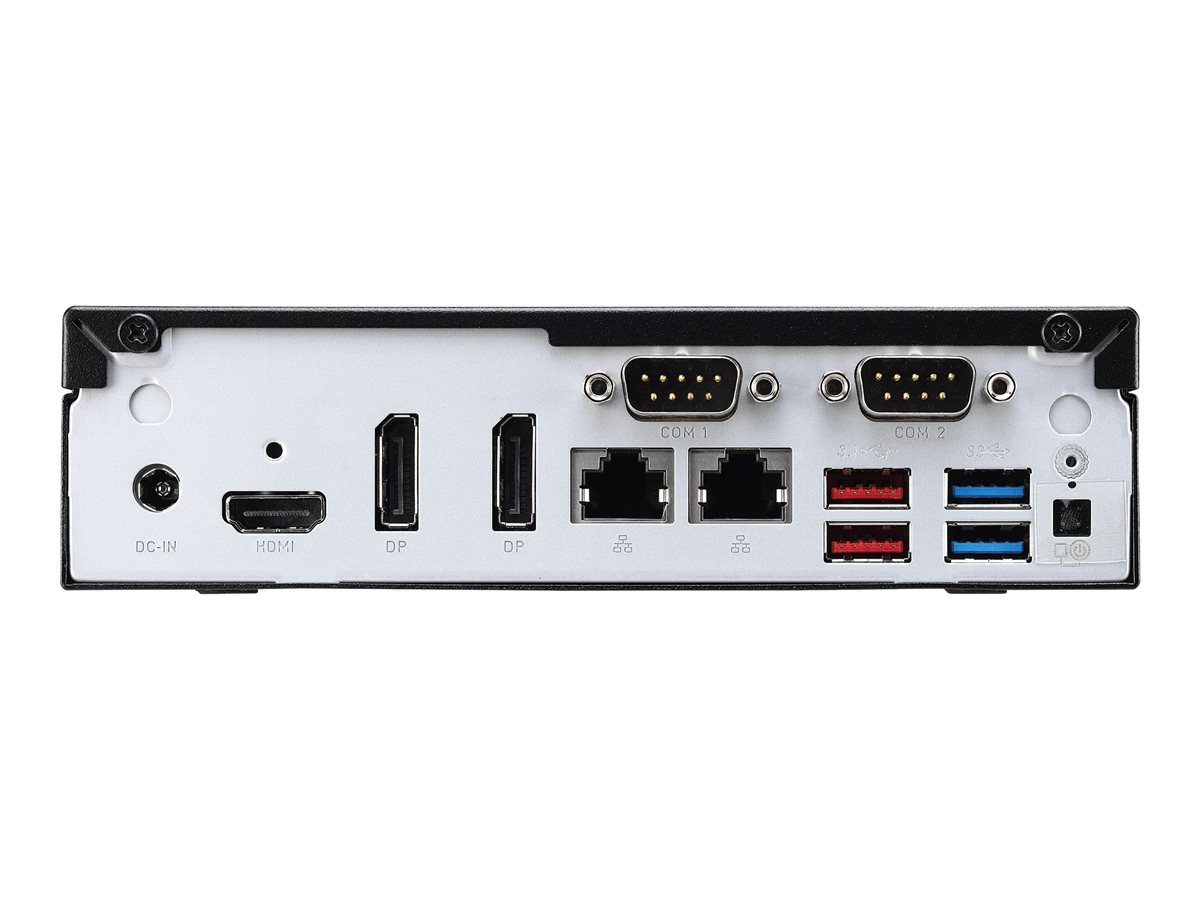

| Interfaces | 1 x microphone (1 in front) ¦ 1 x audio line-out/headphones (1 in front) ¦ 2 x DisplayPort ¦ 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 (2 front, 2 rear) ¦ 4 x USB 3.1 Gen 2 (2 front, 2 rear) ¦ 2 x serial |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Cables Included | Serial ATA cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ErP Ready, EMI, RCM, EMC 2004/108/EC, LVD 2006/95/EC, ErP 2009/125/EC |
| RAM | |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support, Teaming support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 6.5 in |
| Height | 1.7 in |
| Weight | 2.87 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.63 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel H370 |
