4 nodes - cluster - rack-mountable - 2U - 2-way - no CPU up to - RAM 0 GB - no HDD - AST2500 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

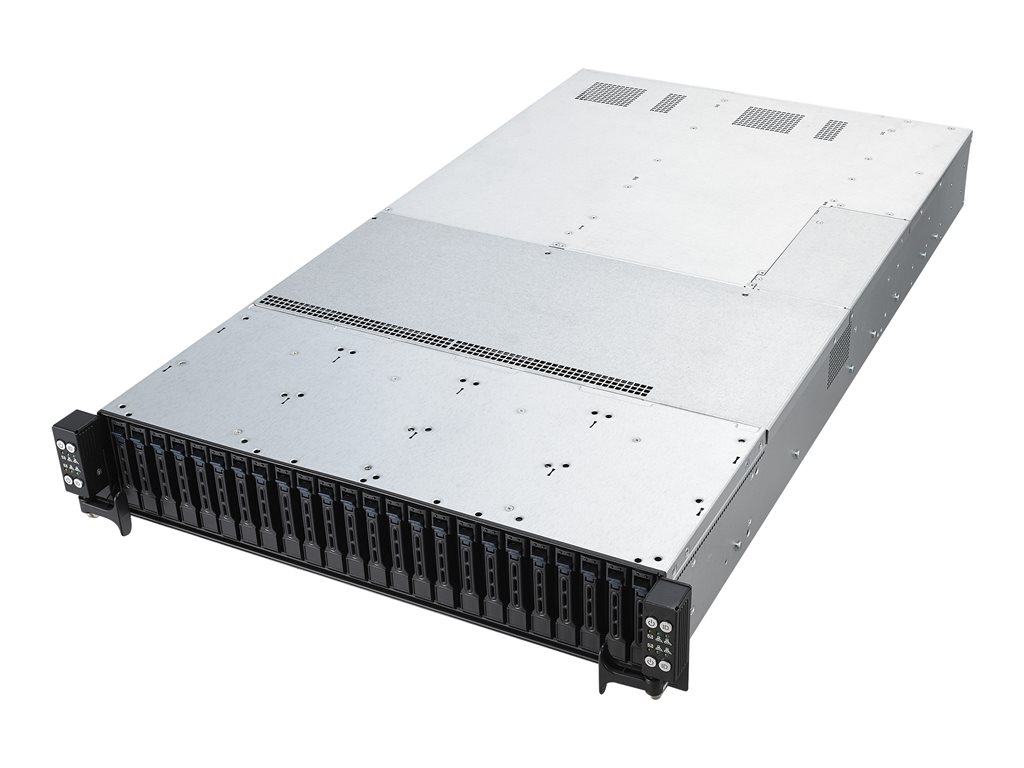

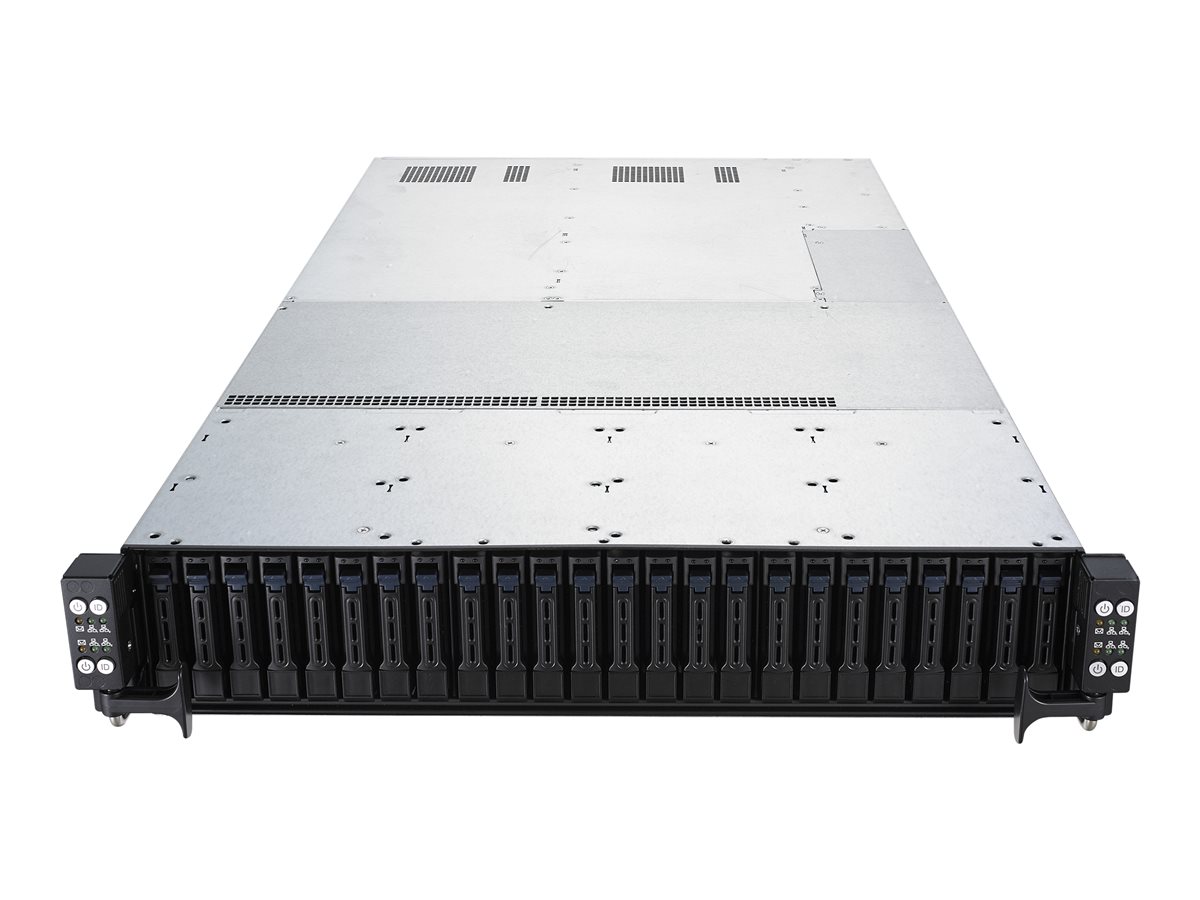

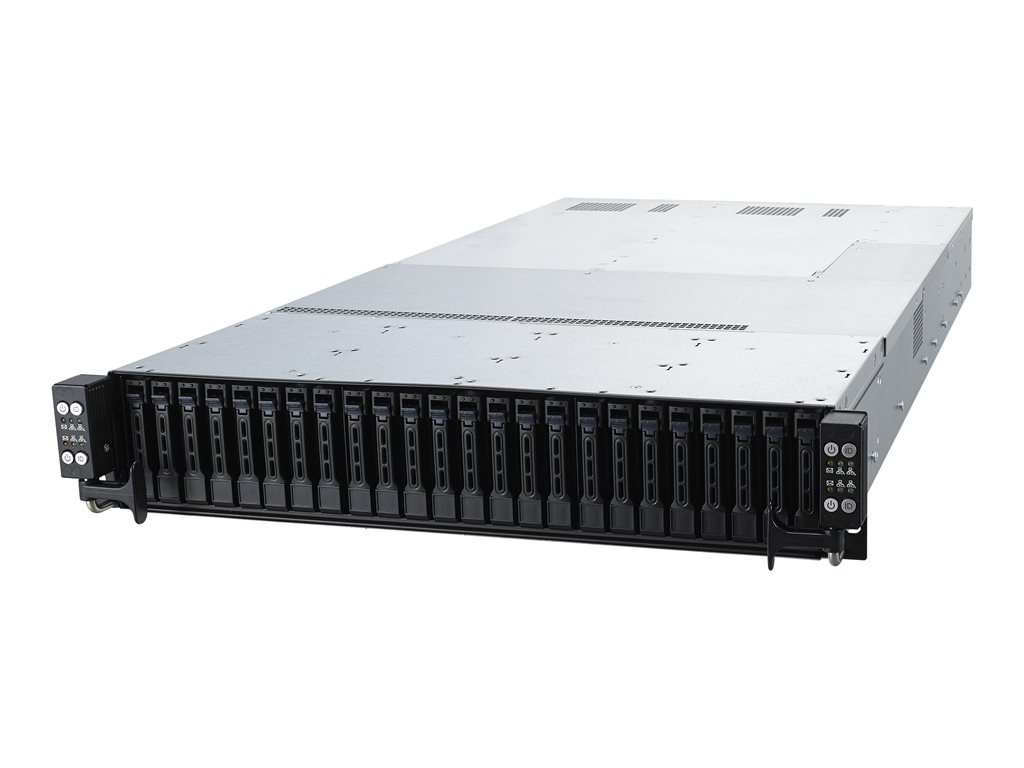

| Product Description | ASUS RS720Q-E9-RS24-S - rack-mountable - no CPU - 0 GB - no HDD |
| Type | Cluster (4 nodes) - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | Socket P |
| RAM | 0 GB (installed) / 1536 GB (max) - DDR4 SDRAM |
| Storage Controller | SAS-3 (SAS 12Gb/s) (LSISAS3008) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Video Memory | 64 MB |
| Networking | 1GbE |
| Cluster Configuration | 4 - computing node |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.5 in x 31.5 in x 3.5 in |
| Weight | 97 lbs |
| General | |
| Type | Cluster (4 nodes) |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Cluster Configuration | 4 - computing node |
| Expansion / Connectivity | |
| Bays | 6 (total) / 6 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 / Open Compute Project mezzanine (OCP) 2.0 |
| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x VGA ¦ 2 x USB 3.0 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Included Accessories | ASMB9-iKVM Remote Management Card |
| Compliant Standards | FCC Class A certified, BSMI |
| RAM | |
| Installed Size | 0 GB (installed) / 1536 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 12 (total) / 12 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM), 6-channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I350-AM2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x SAS-3 |
| Controller Interface Type | SAS 12Gb/s |
| Storage Controller Name | LSISAS3008 |
| Channel Qty | 8 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Memory | 64 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Dimensions & Weight Details | - 105.8 lbs |
| Width | 17.5 in |
| Depth | 31.5 in |
| Height | 3.5 in |
| Weight | 97 lbs |
| Cluster | |
| Shared Storage Power Supply | 2 redundant hot plug power supplies |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C621 |
