Power amplifier - 4 x 150 Watt
| Main Specifications | |
|---|---|
| Product Description | AtlasIED DPA Series DPA1202 - power amplifier |
| Product Type | Power amplifier |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 100 dB 0.03% |
| Output Power | 600 Watt |
| Interfaces | Ethernet |
| Power | AC 110-120/220-230 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 14.5 in x 1.8 in |
| Weight | 13.05 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Power amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Voltage Required | AC 110-120/220-230 V (50/60 Hz) |
| Cord Length | 5 ft |
| Connections | |

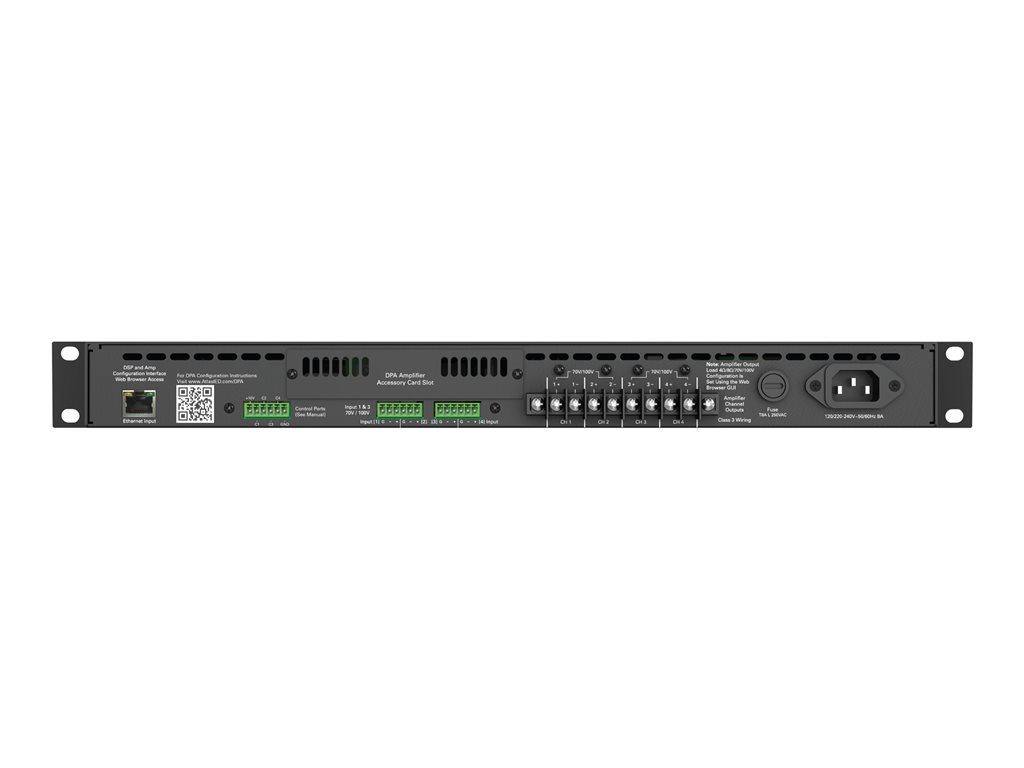

| Connectors | Network (RJ-45) - rear ¦ Control input (Euroblock terminal) - rear ¦ 8 x speaker output (screw-type) - rear ¦ 4 x balanced line input (Euroblock terminal) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 14.5 in |
| Height | 1.8 in |
| Weight | 13.05 lbs |
| Audio System | |
| Functions | Amplifier |
| Amplifier Class | AB |
| Digital Sound Processor (DSP) | Yes |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 100 dB - THD - 0.03% |
| Input Channel Qty | 4 channels |
| Output Channel Qty | 4 channels |
| Output Power (per channel) | 150 Watt |
| Output Power / Total | 600 Watt |
| Input Impedance | 40 kOhm |
| Input Sensitivity | 750 mV |
| Amplifier Output Details | 150 Watt - 8 Ohm - 4 channels ¦ 300 Watt - 4 Ohm - 4 channels ¦ 600 Watt - 2 channels (70V) ¦ 600 Watt - 2 channels (100V) |
| Features | Thermal protection, over current protection, over voltage protection, web control, smartphone remote controlled, low voltage protection, 70V/100V or 4/8 Ohm operation, fault reporting, Audio Sense Auto Power Down (APD) |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 25 in |
| Depth (Shipping) | 18.8 in |
| Height (Shipping) | 3.5 in |
| Weight (Shipping) | 17.5 lbs |
| Slots | |
| Expansion Slots | Access Card |
| Network & Internet Multimedia | |
| Interfaces | Ethernet |
