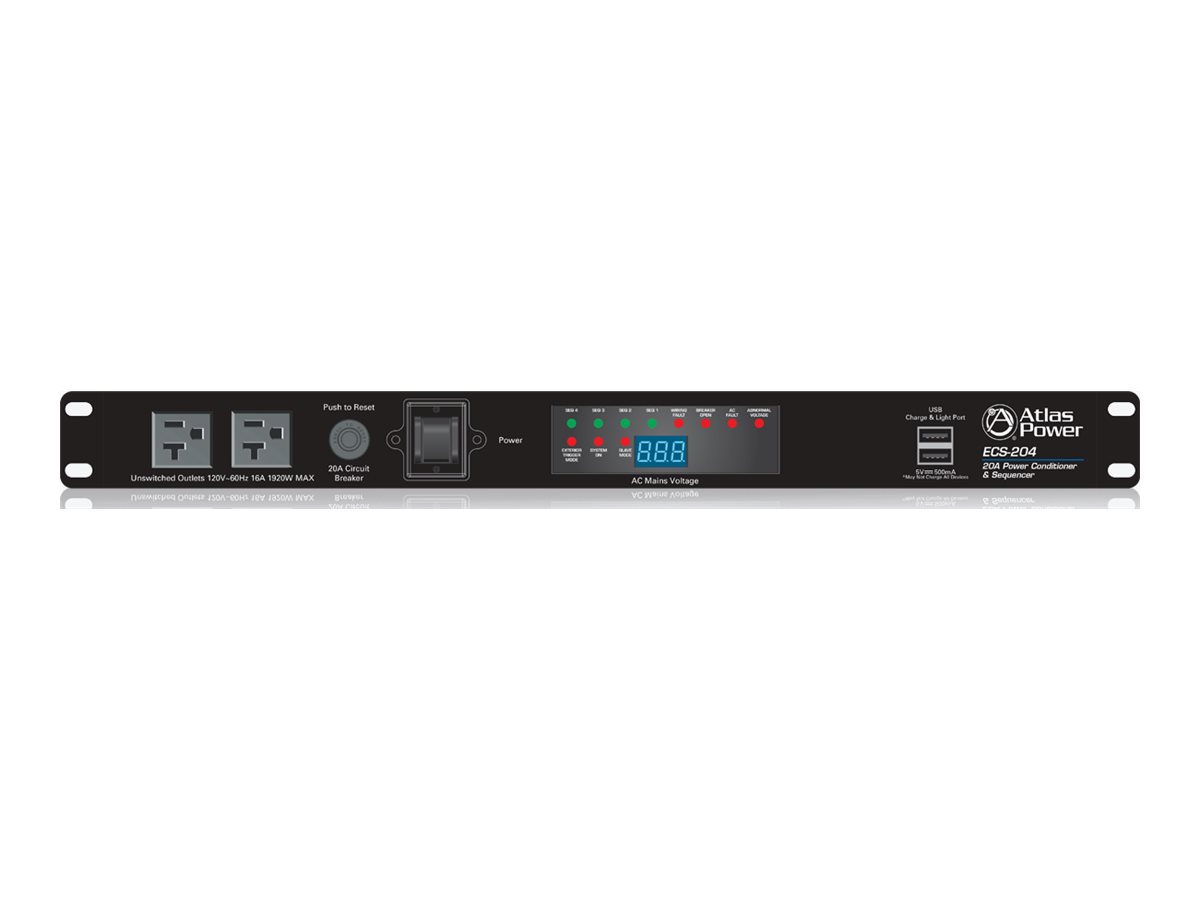

Power conditioner / sequencer (rack-mountable) - AC 120 V - 2400 Watt - output connectors: 9 - 1U - black
| Main Specifications | |
|---|---|
| Product Description | AtlasIED ECS-204 - power conditioner / sequencer - 2400 Watt |
| Device Type | Power conditioner / sequencer - rack-mountable |
| Rack Size | 1U |
| Weight | 9.99 lbs |
| Input Voltage | AC 120 V |
| Power Capacity | 2400 Watt |
| Output connectors | 9 x power NEMA 5-15R (surge) ¦ 1 x XLR ¦ 2 x 4 pin USB Type A - 5 V 500 mA |
| Included Accessories | Cable retainer |
| Color | Black |
| Dimensions (WxDxH) | 18.9 in x 8.5 in x 1.8 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Power conditioner / sequencer - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management - RJ-45 ¦ 1 x EPO (emergency power off) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year from date of purchase |
| Miscellaneous | |
| Included Accessories | Cable retainer |
| Features | RFI filtering, EMI filtering, reset button, digital voltmeter, Emergency Power Down (EPD), Dual Clamping Suppression (DCS) technology, LED indicators, LED display, Extreme Voltage Shutdown (EVS), Metal Oxide Varistor Technology (MOV) |
| Compliant Standards | UL 60065 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 102 - 132 V |
| Frequency Required | 60 Hz |
| Power Consumption Operational | 12 Watt |
| Power Output Connectors Details | 9 x power NEMA 5-15R (surge) ¦ 1 x XLR ¦ 2 x 4 pin USB Type A - 5 V 500 mA |
| Max Electric Current | 20 A |
| Power Capacity | 2400 Watt |
| Surge Suppression | Yes |
| Surge Energy Rating | 2000 Joules |
| Clamping Level | 460 V |
| Max Spike Voltage | 6000 V |
| Max Spike Current | 3000 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 18.9 in |
| Depth | 8.5 in |
| Height | 1.8 in |
| Weight | 9.99 lbs |
