Amplifier - 100 Watt (total)
| Main Specifications | |
|---|---|

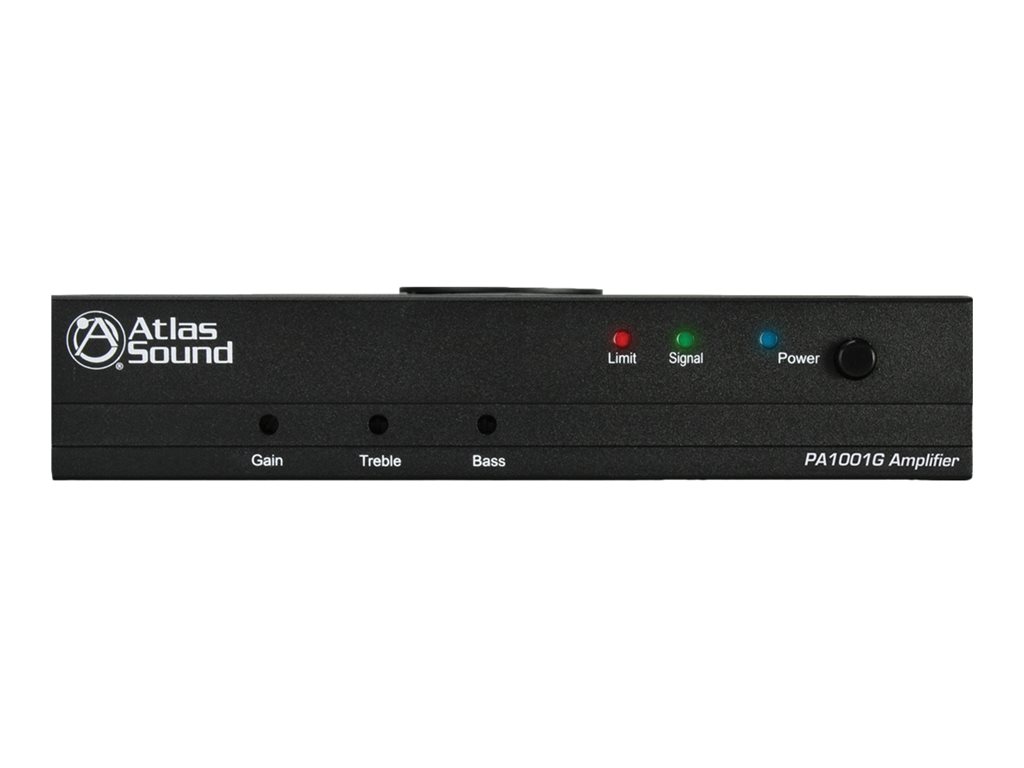

| Product Description | Atlas Sound PA1001G - amplifier |
| Product Type | Amplifier |
| Audio Channels | Mono |
| Audio Specifications | Amplifier - 30 - 20000 Hz |
| Output Power | 100 Watt |
| Dimensions (WxDxH) | 8.5 in x 13.5 in x 1.8 in |
| Weight | 5.29 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Connections | |
| Connectors | Balanced audio input (Phoenix-type) - rear ¦ Audio line-in (RCA x 2) - rear ¦ Speaker output - rear ¦ Audio line-out (RCA) - rear |
| Dimensions & Weight | |
| Width | 8.5 in |
| Depth | 13.5 in |
| Height | 1.8 in |
| Weight | 5.29 lbs |
| Audio System | |
| Audio Channels | Mono |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 30 - 20000 Hz |
| Output Power / Total | 100 Watt |
| Input Sensitivity | 50 mV |
| Amplifier Output Details | 100 Watt - 1 channels (70V) ¦ 100 Watt - 1 channels (100V) |
| Features | Pole mounted, 70V/100V operation |
