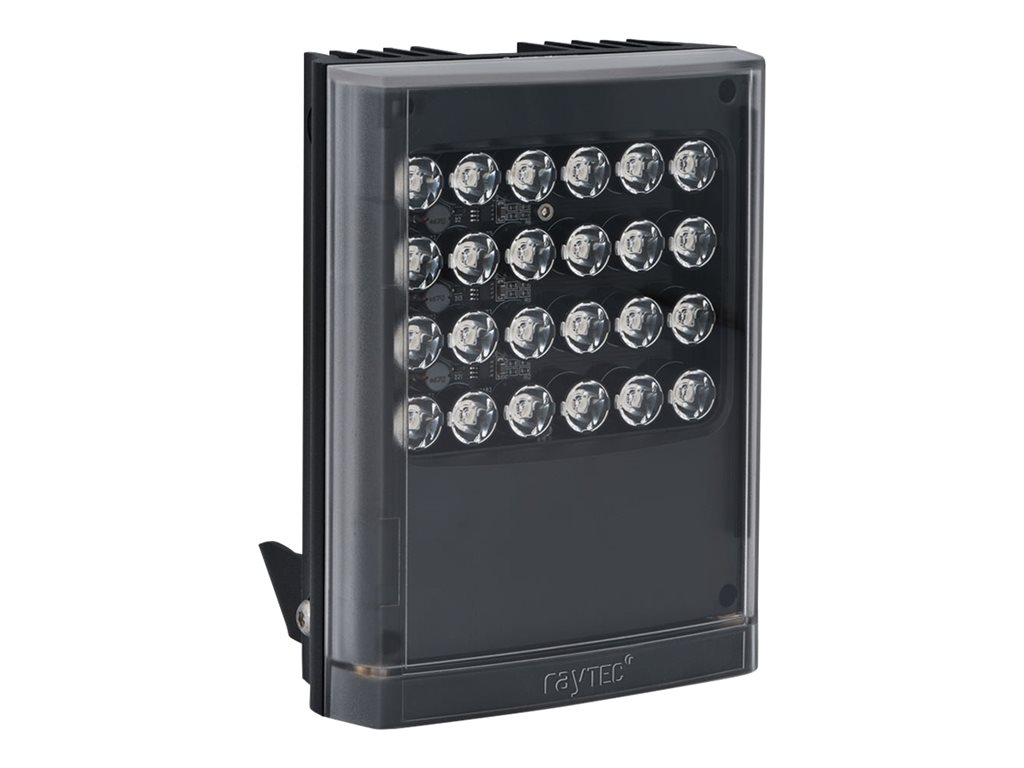

Infrared/white LED combo illuminator - DC 24 V - 40 Watt - black
| Main Specifications | |
|---|---|
| Product Description | Raytec VARIO 2 VAR2-HY8-1 - infrared/white LED combo illuminator |
| Product Type | Infrared/white LED combo illuminator |
| Package Content | U-bracket |
| Voltage Required | DC 24 V |
| Lamp Capacity | 40 Watt |
| Distance | 951 ft |
| Angle | 10 degrees |
| Wave Length | 850 nm |
| Dimensions (WxDxH) | 5.3 in x 7.1 in x 2.7 in |
| Weight | 3.64 lbs |
| Color | Black |
| Compliant Standards | IP66 |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Infrared/white LED combo illuminator |
| Package Content | U-bracket |
| Voltage Required | DC 24 V |
| Lamp Capacity | 40 Watt |
| Distance | 951 ft |
| Angle | 10 degrees |
| Wave Length | 850 nm |
| Width | 5.3 in |
| Depth | 7.1 in |
| Height | 2.7 in |
| Weight | 3.64 lbs |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | Hot-spot Reduction Technology (HRT), 12 infra-red Platinum Elite twin-core SMT LEDs, 12 white Platinum Elite twin-core SMT LEDs |
| Compliant Standards | IP66 |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 122 °F |
