Application accelerator - with 4-Hour 24x7 Delivery - 10GbE - 1U - 1 edge - One Time Charge - rack-mountable
| Main Specifications | |
|---|---|

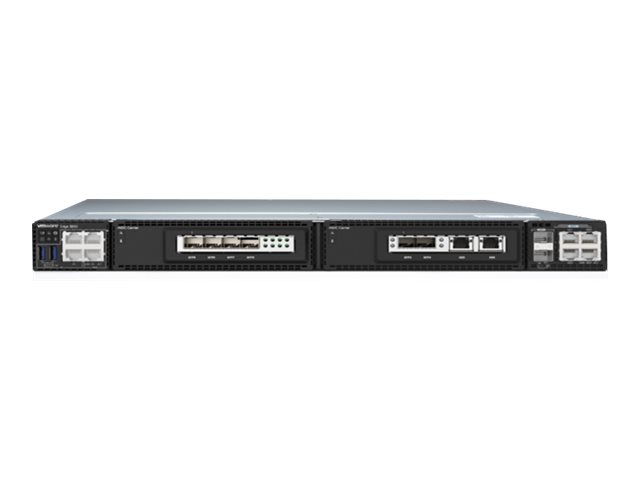

| Product Description | VMware SD-WAN Edge 3810 - application accelerator - with 4-Hour 24x7 Delivery |
| Device Type | Application accelerator |
| Bundled Services | 4-Hour 24x7 Delivery |
| Form Factor | Rack-mountable - 1U |
| RAM | 32 GB |
| Hard Drive | 256 GB x 1 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Maximum throughput (1300-byte packet size): 10 Gbps ¦ Internet traffic (IMIX): 5 Gbps ¦ Throughput (64-byte packet size): 1 Gbps ¦ Maximum throughput (IMIX) across EHA Link: 800 Mbps |
| Capacity | Tunnel scale: 6000 ¦ Flows per second: 38400 ¦ Maximum concurrent flows: 1900000 ¦ Maximum number of routes: 100000 ¦ Maximum segments: 16 |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Pricing Type | 1 edge - One Time Charge |
| Dimensions (WxDxH) | 17.1 in x 15 in x 1.7 in |
| Weight | 15.7 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Application accelerator |
| Bundled Services | 4-Hour 24x7 Delivery |
| Height (Rack Units) | 1U |
| Width | 17.1 in |
| Depth | 15 in |
| Height | 1.7 in |
| Weight | 15.7 lbs |
| Expansion / Connectivity | |
| Interfaces | 6 x 1000Base-TX - RJ-45 ¦ 8 x 10GBase-X - SFP+ (WAN) ¦ 2 x USB 3.0 ¦ 1 x console - RJ-45 ¦ 1 x console - mini-USB |
| Manufacturer Warranty | |
| Service & Support | Extended service agreement - replacement - 1 year - response time: 4 hours |
| Miscellaneous | |
| MTBF | 17.1 years |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI V-3, EN 61000, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| Pricing Type | 1 edge - One Time Charge |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Routing Protocol | OSPF, BGP, static IP routing |
| Remote Management Protocol | SNMP |
| Performance | Maximum throughput (1300-byte packet size): 10 Gbps ¦ Internet traffic (IMIX): 5 Gbps ¦ Throughput (64-byte packet size): 1 Gbps ¦ Maximum throughput (IMIX) across EHA Link: 800 Mbps |
| Capacity | Tunnel scale: 6000 ¦ Flows per second: 38400 ¦ Maximum concurrent flows: 1900000 ¦ Maximum number of routes: 100000 ¦ Maximum segments: 16 |
| Status Indicators | Power, master, PSU |
| Features | Routing, NAT support, Syslog support, MAC address filtering, High Availability, Quality of Service (QoS), RADIUS support, DHCP server, layer 7 load balancing, port forwarding, DHCP relay, NetFlow, DHCP client, Link Aggregation, VLAN Tagging |
| Encryption Algorithm | SHA-1, PKI, 128-bit AES, 256-bit AES, IKEv2, SHA-2, TLS 1.2 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ad |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 200 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 85% |
| Processor / Memory / Storage | |
| RAM | 32 GB |
| Hard Drive | SSD 256 GB x 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 25 lbs |
