3rd Generation - router - voice card 1GbE, HDLC, Frame Relay, PPP, MLPPP - VoIP phone adapter - rack-mountable, wall-mountable
| Main Specifications | |
|---|---|
| Product Description | ADTRAN Total Access 916 - 3rd Generation - router - voice card - desktop, rack-mountable, wall-mountable |
| Device Type | Router - voice interface card |
| Enclosure Type | Desktop, rack-mountable, wall-mountable - 1U |
| Line Rate | Fractional T-1/T-1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP |
| Capacity | IPSec VPN tunnels: 100 |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, IGMPv2, GRE |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, SSH, CLI |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | MGCP, SIP |
| Telephony Interfaces | 16 phone (FXS) |
| Features | NAT support, NAPT support, trunking, VLAN support, Syslog support, SPI, DoS attack prevention, packet filtering, DiffServ support, LLQ, WFQ, VQM, TFTP support, ACL support, QoS, DHCP server, DHCP relay, DHCP client, rugged |
| Compliant Standards | IEEE 802.1Q |
| Power | AC 120 V (60 Hz) |
| Dimensions (WxDxH) | 16.9 in x 9.8 in x 1.8 in |
| Weight | 7.05 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable, wall-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP |
| Capacity | IPSec VPN tunnels: 100 |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, IGMPv2, GRE |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, SSH, CLI |
| Authentication Method | PAP, CHAP |
| Features | NAT support, NAPT support, trunking, VLAN support, Syslog support, SPI, DoS attack prevention, packet filtering, DiffServ support, LLQ, WFQ, VQM, TFTP support, ACL support, QoS, DHCP server, DHCP relay, DHCP client, rugged |
| Compliant Standards | IEEE 802.1Q, FCC Class A certified, ETSI, cUL, EN 60950, EN55022, UL 1950, EN50082-1, FCC Part 68, FCC Part 15 |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Built-in Devices | LED panel |
| Status Indicators | Power, status, data, voice, link, DSX-1 |
| Expansion / Connectivity | |

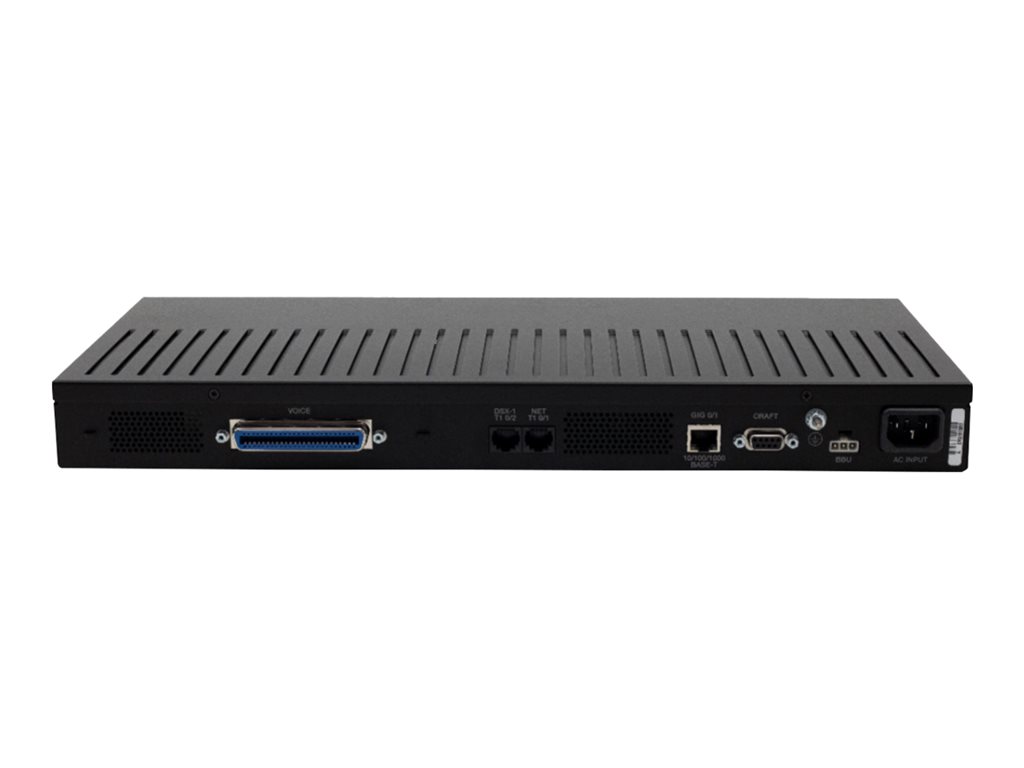

| Interfaces | WAN / DMZ: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ Phone line: 16 x FXS - 50 pin Telco ¦ WAN: 1 x DSX-1 - RJ-48C ¦ WAN: 1 x T1-FT1 - RJ-48C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120 V (60 Hz) |
| Power Consumption Operational | 110 Watt |
| Software / System Requirements | |
| OS Provided | ADTRAN OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% |
| Communications | |
| Type | Voice interface card |
| Analog Ports Qty | 16 |
| Protocols & Specifications | ITU V.90, ITU G.168 |
| Data Compression Protocol | G.711, G.729.A |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 9.8 in |
| Height | 1.8 in |
| Weight | 7.05 lbs |
| IP Telephony | |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | MGCP, SIP |
| Voice Codecs | G.711, G.729a, T.38 |
| Telephony Interfaces | 16 phone (FXS) |
| IP Telephony Features | Voice activity detection (VAD), echo cancellation (G.168), call forwarding, caller ID, call waiting, call hold, call transfer, DTMF generation/detection |
| Line Properties | |
| Line Rate | Fractional T-1/T-1 |
