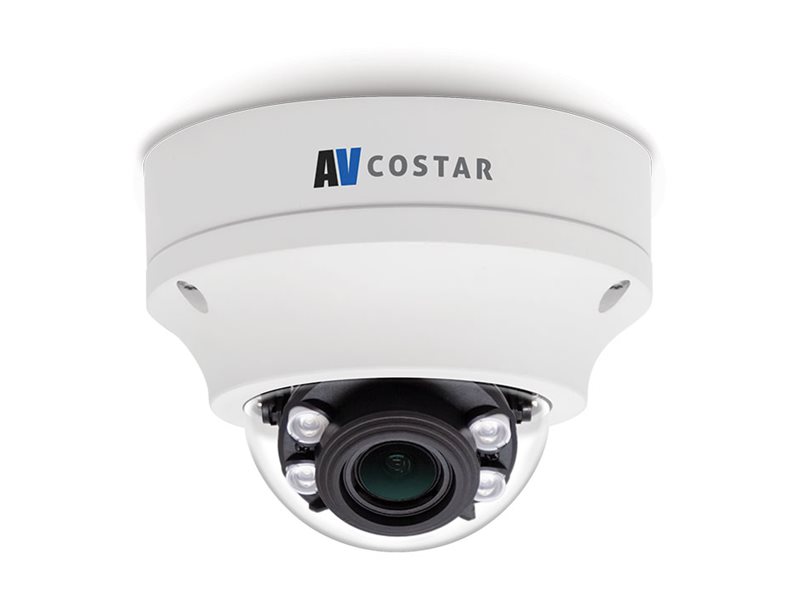

Network surveillance camera - dome - outdoor - weather resistant / impact resistant - color (Day&Night) - 2.1 MP - 1920 x 1080 - 720p, 1080p - auto iris - motorized - audio - LAN 10/100 - MPEG-4, MJPEG, H.264, H.265 - DC 12 V
| Main Specifications | |
|---|---|
| Product Description | AV Costar ConteraIP AV02CLD-200 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - weather resistant / impact resistant |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 5.6 in x 5.6 in x 4.1 in |
| Weight | 33.51 oz |
| Color | White, pantone cool gray 1C |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Optical Sensor Type | CMOS - 1/2.8" - 2.1 MP |
| Minimum Illumination | 0.04 lux - color ¦ 0.005 lux - B&W |
| Focal Length Control | Motorized zoom |
| Focal Length | 2.7 mm - 13.5 mm |
| Lens Iris | F/1.4 - auto iris (P-Iris) |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V |
| Features | Manual white balance, Backlight Compensation (BLC), progressive scanning, infrared cut filter, Privacy Mask Function, ePTZ, multi-streaming, On Screen Display, notification picture to E-mail, notification picture to FTP, Wide Dynamic Range (WDR) Enhanced, Multicast Streaming, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile Q) support, CorridorView, Forensic zooming, bit rate control, NightView Technology, SNAPstream+, ONVIF (Profile T) support |
| Environmental Parameters (operating) | -4 °F - 122 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.711 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.6 in |
| Depth | 5.6 in |
| Height | 4.1 in |
| Weight | 33.51 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | SDXC Memory Card |
| Miscellaneous | |
| Color | White, pantone cool gray 1C |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | 8.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - weather resistant / impact resistant |
| Digital Video Format | MPEG-4, MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Minimum Illumination | 0.04 lux - color ¦ 0.005 lux - B&W |
| Digital Video Capture Resolution | 1280 x 720, 960 x 540, 1920 x 1080, 640 x 360, 640 x 480 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), progressive scanning, infrared cut filter, Privacy Mask Function, ePTZ, multi-streaming, On Screen Display, notification picture to E-mail, notification picture to FTP, Wide Dynamic Range (WDR) Enhanced, Multicast Streaming, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile Q) support, CorridorView, Forensic zooming, bit rate control, NightView Technology, SNAPstream+, ONVIF (Profile T) support |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.7 in |
| Shipping Depth | 7.3 in |
| Shipping Height | 5.9 in |
| Shipping Weight | 34.56 oz |
| Lens Construction | |
| Type | Motorized zoom |
| Focal Length | 2.7 mm - 13.5 mm |
| Lens Iris | F/1.4 auto iris (P-Iris) |
| Horizontal Field of View (degree) | 28 - 100 |
| Vertical Field of View (degree) | 16 - 54 |
| Image Sensor | |
| Type | 2.1 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, SNMP, HTTPS, IPv6, HTTP, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, FTP |
