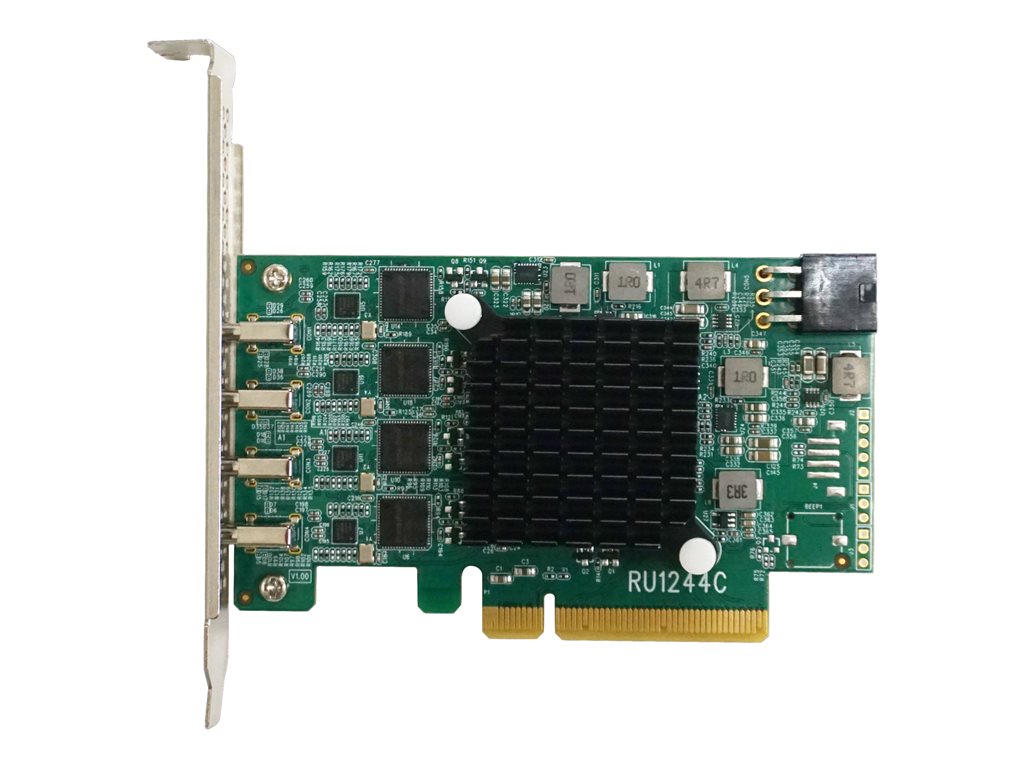

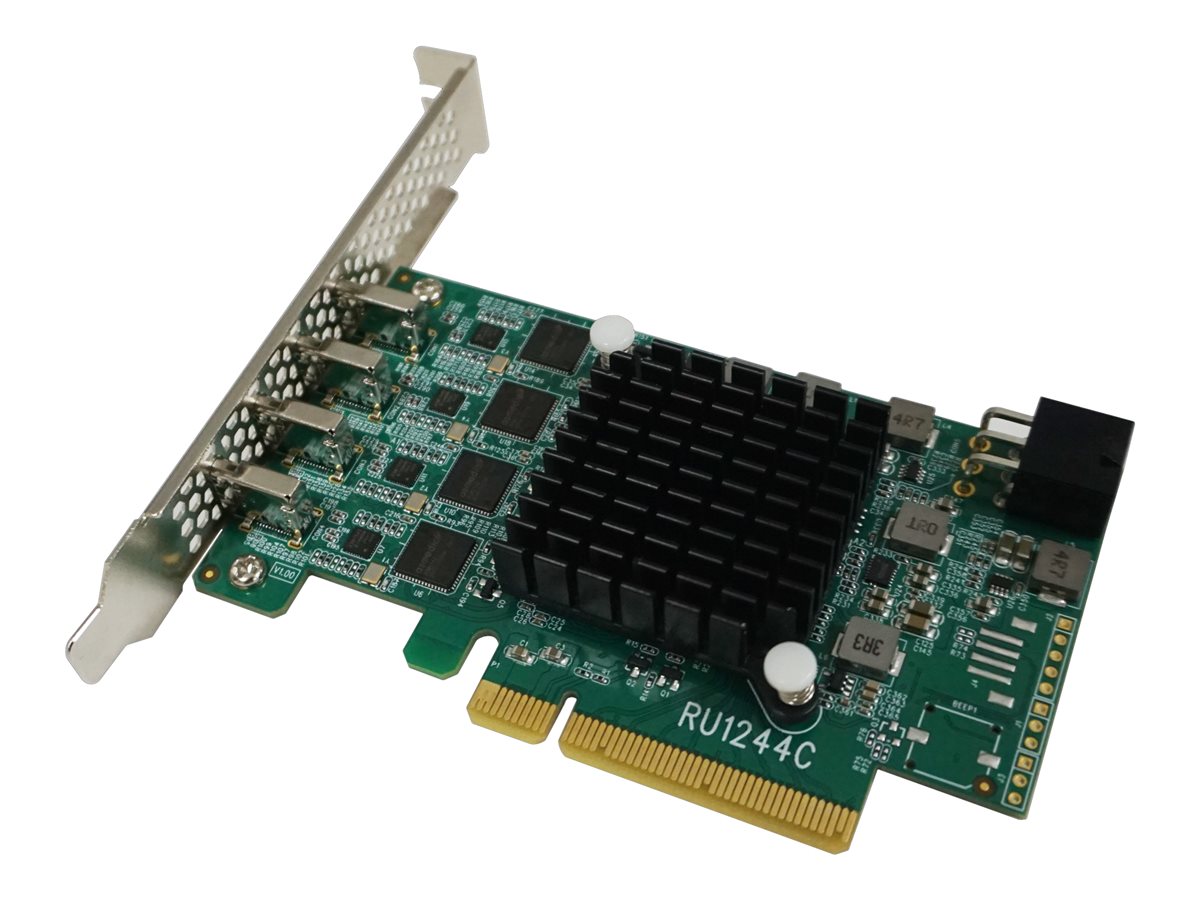

USB adapter - PCIe 3.0 x8 low profile - USB-C 3.2 Gen 2 x 4
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketU 1244C - USB adapter - PCIe 3.0 x8 - USB-C 3.2 Gen 2 x 4 |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Ports | USB-C 3.2 Gen 2 x 4 |
| Dimensions (WxDxH) | 0.7 in x 4.5 in x 2.7 in |
| Weight | 7.37 oz |
| Data Link Protocol | USB 3.2 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Processor | ASM3142 |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1, USB 3.1 Gen 2, USB 3.2 Gen 2 |
| System Requirements | Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2016 (64-bit), Linux Kernel 3.10 or later, Microsoft Windows Server 2019 (64-bit), Apple macOS 10.12.6 or later |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.2 Gen 2 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| MTBF | 920,585 hours |
| Compliant Standards | FCC, RoHS, WEEE, REACH, UASP (USB Attached SCSI Protocol) |
| Networking | |
| Ports | USB-C 3.2 Gen 2 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, xHCI, USB 3.1, USB 3.1 Gen 2, USB 3.2 Gen 2 |
| Power | |
| Power Consumption Operational | 8.83 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2016 (64-bit), Linux Kernel 3.10 or later, Microsoft Windows Server 2019 (64-bit), Apple macOS 10.12.6 or later |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Processor / Memory | |
| Processor | ASM3142 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.5 in |
| Height | 2.7 in |
| Weight | 7.37 oz |
