Wolf Pro Security - tower - 4U - 1 x Xeon Gold 5222 / up to 3.9 GHz - vPro - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, TLC - DVD-Writer - T1000 - Gigabit Ethernet, 10 Gigabit Ethernet - Win 10 Pro for Workstations 64-bit (includes Win 11 Pro for Workstations License) - monitor: none - keyboard: US - black - Smart Buy - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|

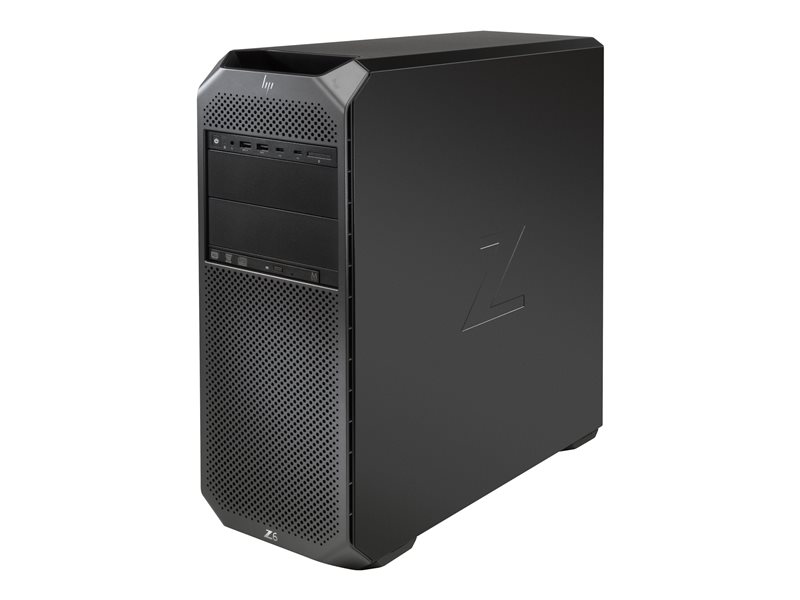

| Product Description | HP Workstation Z6 G4 - Wolf Pro Security - tower Xeon Gold 5222 3.8 GHz - vPro - 16 GB - SSD 512 GB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Workstation - tower |
| Platform Technology | Intel vPro Platform |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon Gold 5222 / 3.8 GHz (up to 3.9 GHz, (Quad-Core) |
| Processor Socket | FCLGA3647 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 16.5 MB L3 cache |
| Cache Per Processor | 16.5 MB |
| RAM | 16 GB (installed) / 384 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Hard Drive | SSD 512 GB - PCI Express 3.0 x4 - M.2 2280 - HP Z Turbo Drive, triple-level cell (TLC) |
| Optical Storage | DVD-Writer |
| Graphics Controller | PCIe 3.0 x16 - NVIDIA T1000 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Networking | 1GbE, 10GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 Pro for Workstations 64-bit Edition (downgrade from Windows 11 Pro for Workstations) + Windows 11 Pro for Workstations License |
| Software Included | HP Remote Graphics Software |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 18.3 in x 17.5 in |
| Weight | 28.88 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified EPEAT Silver |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Platform Technology | Intel vPro Platform |
| Type | Workstation |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x external 5.25" ¦ 1 (total) / 0 (free) x external 5.25" Slim Line |
| Slots | 3 (total) / 3 (free) x PCIe 3.0 x4 (open ended) ¦ 2 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (open ended, slot converts to x4 electrical when SSD is installed in 2nd M.2 slot) ¦ 2 (total) / 1 (free) x M.2 Card (x4 mode) |
| Interfaces | 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is charging) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 1 x audio line-in/microphone ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 4 x Mini DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, WEEE, Common Criteria EAL4+, ACPI 5.0, low halogen |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 16 GB (installed) / 384 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2933 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 12 (total) / 10 (empty) |
| Features | Registered, slots 7 - 12 are available in two-processor configuration only, non-uniform memory architecture |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel i219-LM, X722 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az, IEEE 802.3ax |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 16.5 MB |
| Cache Per Processor | 16.5 MB |
| Optical Storage | |
| Type | DVD-Writer |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 3.0 x16 |
| Graphics Processor | NVIDIA T1000 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Video Interfaces | DisplayPort |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Pro for Workstations 64-bit Edition (available through downgrade rights from Windows 11 Pro for Workstations) + Windows 11 Pro for Workstations License - English |
| Software | HP Remote Graphics Software |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 3.0 x4 |
| Features | HP Z Turbo Drive, triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 18.3 in |
| Height | 17.5 in |
| Weight | 28.88 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.3 in |
| Shipping Depth | 23.3 in |
| Shipping Height | 24 in |
| Keyboard | |
| Keyboard Name | HP Business Slim Keyboard |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 5222 |
| Clock Speed | 3.8 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C622 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR Certified | Yes |
