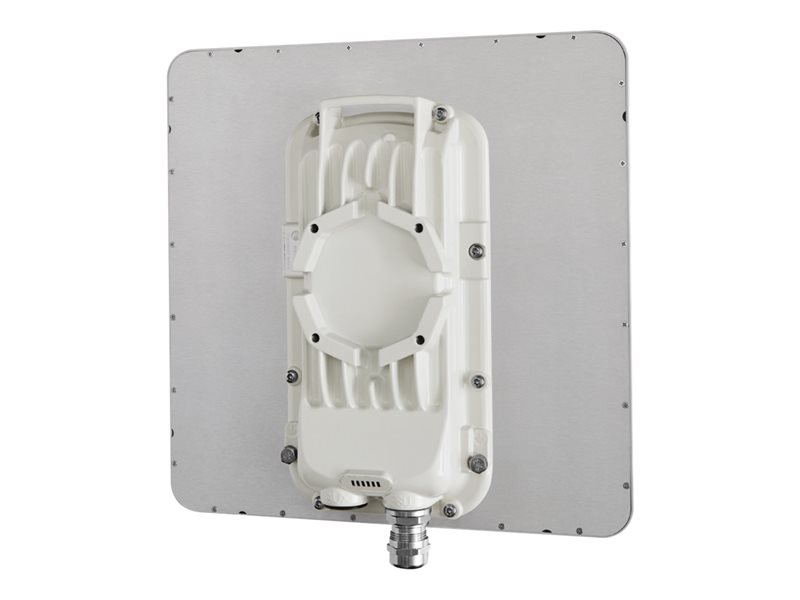

Connectorized - wireless bridge - 1GbE - 5 GHz - DC power
| Main Specifications | |
|---|---|
| Product Description | Cambium Networks PMP 450i Subscriber Module - Connectorized - wireless bridge |
| Device Type | Wireless bridge |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Frequency Band | 5 GHz |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | DC 48 - 59 V |
| Dimensions (WxDxH) | 5.3 in x 2.5 in x 10.2 in |
| Weight | 4.41 lbs |
| General | |
| Device Type | Wireless bridge |
| Width | 5.3 in |
| Depth | 2.5 in |
| Height | 10.2 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) ¦ 1 x antenna - N connector |
| Miscellaneous | |
| MTBF | 40 years |
| Compliant Standards | IEC 61000-4-5, IP67, FIPS 197, IP66, EN 301 893 V1.7.1, EN 302 625 V1.1.1, EN 302 502 V1.2.1 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Line Coding Format | 64 QAM, 256 QAM, QPSK, 16 QAM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Spread Spectrum Method | OFDM |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, FTP |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS |
| Frequency Band | 5 GHz |
| Max Range Open Space | 40 miles |
| Features | VLAN support, DiffServ support, surge protection, Quality of Service (QoS), 2T2R MIMO technology, IPv4 support, GPS sync compatible, Auto Repeat reQuest (ARQ), 2x2 MIMO technology |
| Encryption Algorithm | DES, 128-bit AES, FIPS 197 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | DC 48 - 59 V |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 100% |
| Antenna | |
| Antenna | Internal |
| Gain Level | 23 dBi |
