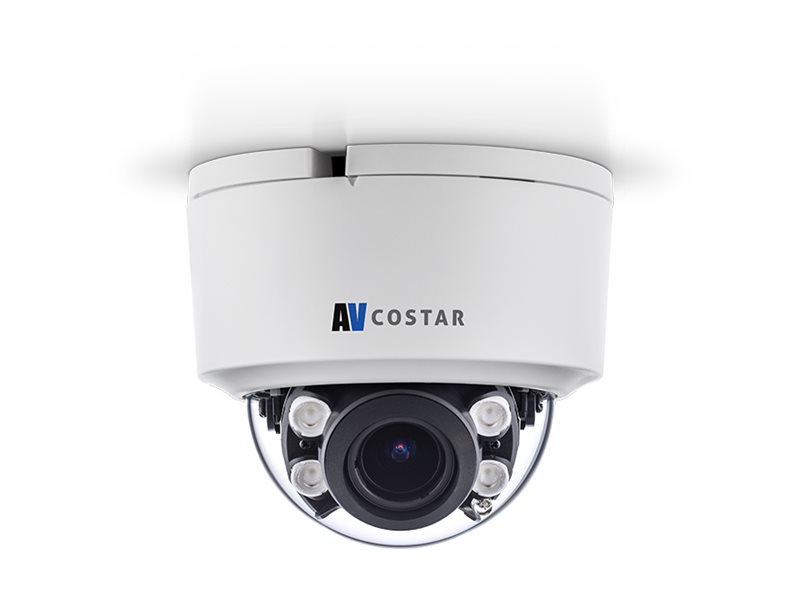

Network surveillance camera - dome - indoor - color (Day&Night) - 2.1 MP - 1920 x 1080 - 720p, 1080p - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265, MPEG-4 Part 10 - DC 12 V / PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | AV Costar ConteraIP AV02CID-201 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - indoor |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 4.5 in x 4.5 in x 3.6 in |
| Weight | 12.7 oz |
| Color | Pantone cool gray 1C, AV Costar white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Optical Sensor Type | CMOS - 1/2.8" - 2.1 MP |
| Minimum Illumination | 0.04 lux - color ¦ 0.005 lux - B&W |
| Focal Length Control | Fixed focal |
| Focal Length | 3.6 mm |
| Lens Iris | F/1.4 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE Class 3 |
| Features | Manual white balance, Backlight Compensation (BLC), progressive scanning, infrared cut filter, Privacy Mask Function, ePTZ, multi-streaming, On Screen Display, notification picture to E-mail, notification picture to FTP, Wide Dynamic Range (WDR) Enhanced, Multicast Streaming, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile Q) support, CorridorView, Forensic zooming, bit rate control, NightView Technology, SNAPstream+, ONVIF (Profile T) support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 14 °F - 122 °F; 10 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.711, PCM |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 4.5 in |
| Depth | 4.5 in |
| Height | 3.6 in |
| Weight | 12.7 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, EN 55032 Class A, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, REACH, RoHS, WEEE, IEEE 802.3af |
| Color | Pantone cool gray 1C, AV Costar white |
| Power | |
| Power Requirements | DC 12 V / PoE Class 3 |
| Power Device | 8.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - indoor |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-4 Part 10 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Minimum Illumination | 0.04 lux - color ¦ 0.005 lux - B&W |
| Infrared LEDs | 4 |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 320 x 240, 1920 x 1080, 960 x 540 |
| Frame Rate (max) | 30 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), progressive scanning, infrared cut filter, Privacy Mask Function, ePTZ, multi-streaming, On Screen Display, notification picture to E-mail, notification picture to FTP, Wide Dynamic Range (WDR) Enhanced, Multicast Streaming, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile Q) support, CorridorView, Forensic zooming, bit rate control, NightView Technology, SNAPstream+, ONVIF (Profile T) support |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.1 in |
| Shipping Depth | 6 in |
| Shipping Height | 6.5 in |
| Shipping Weight | 19.4 oz |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 3.6 mm |
| Lens Iris | F/1.4 |
| Horizontal Field of View (degree) | 84 |
| Vertical Field of View (degree) | 45 |
| Image Sensor | |
| Type | 2.1 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, SSL |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
