Thermal camera - handheld - dust resistant / water resistant - color - 0.1 MP - 384 x 288 - fixed focal - wireless - Wi-Fi - USB - AVI, IS3
| Main Specifications | |
|---|---|

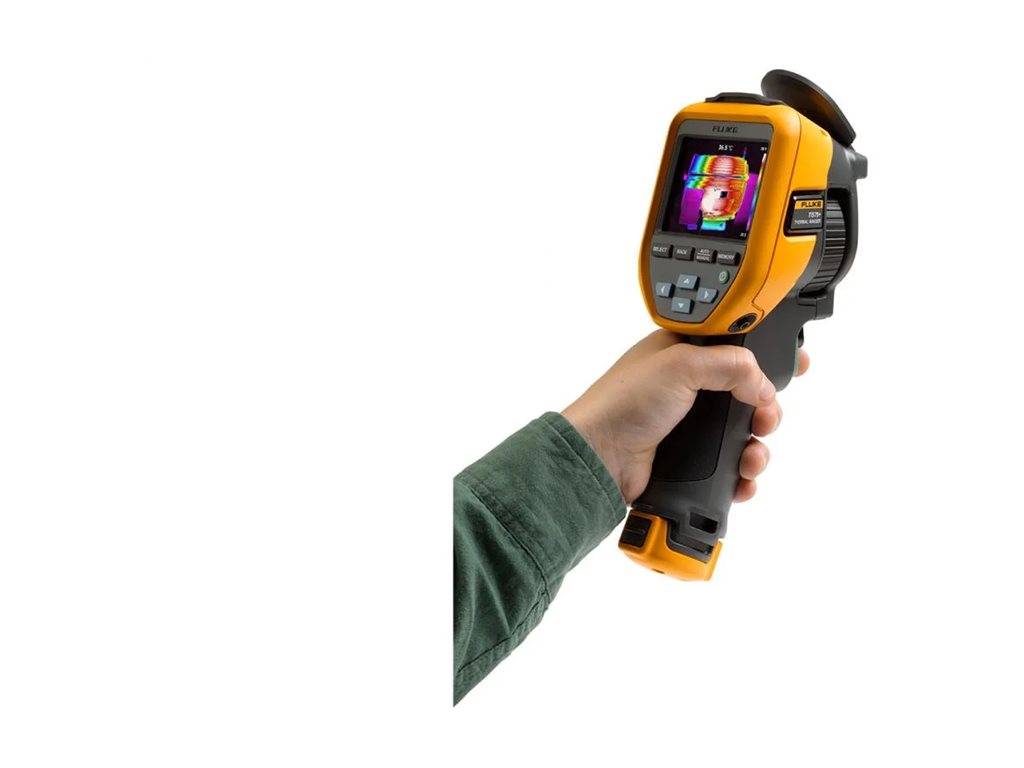

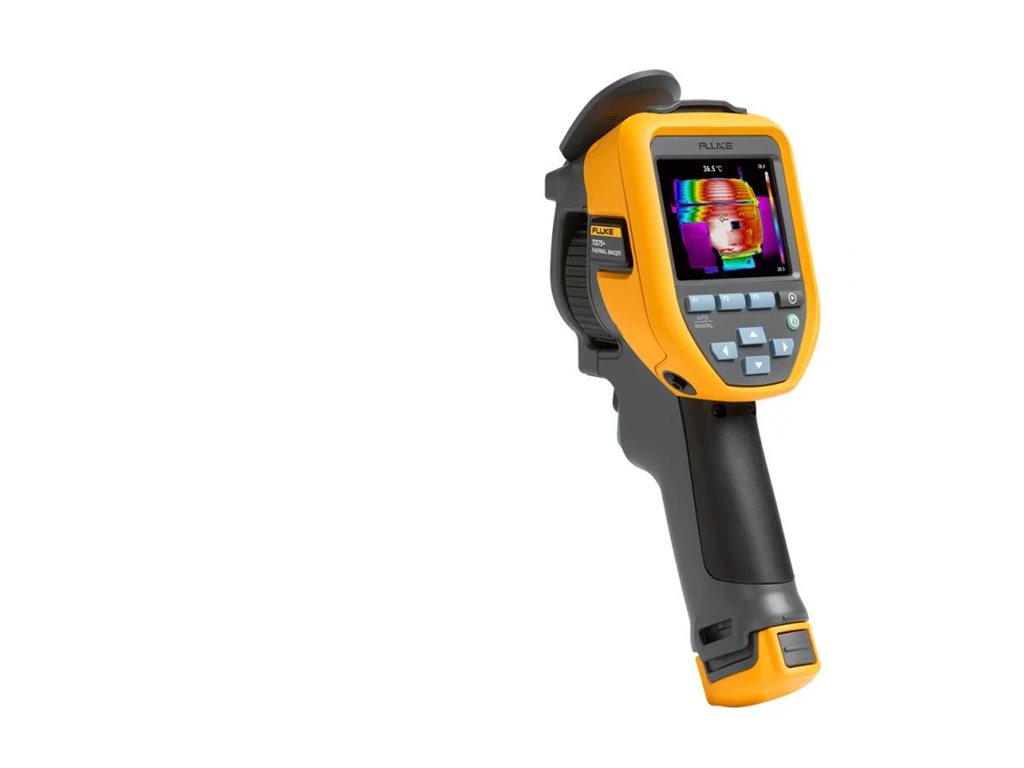

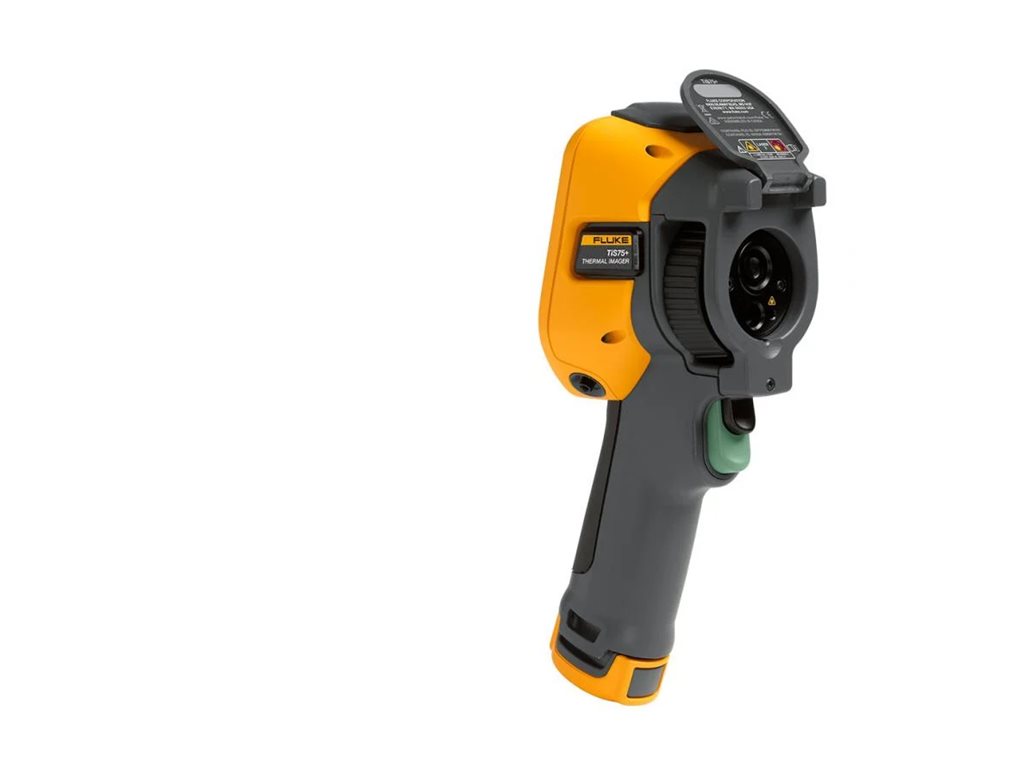

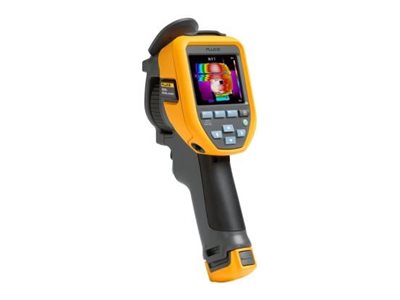

| Product Description | Fluke TIS75+ - thermal camera |
| Device Type | Thermal camera - handheld - dust resistant / water resistant |
| Dimensions (WxDxH) | 5.7 in x 4 in x 10.5 in |
| Weight | 31.21 oz |
| Connectivity Technology | Wireless, wired |
| Camera | Color |
| Max Resolution | 384 x 288 |
| Optical Sensor Type | 0.1 MP |
| Focal Length Control | Fixed focal |
| Focus Adjustment | (min distance 5.9 in) |
| Interfaces | USB Wi-Fi |
| Cables Included | 1 - USB cable - external |
| Features | 27Hz frame rate, dew point calculation, thermal sensitivity 40mK, picture-in-picture capability, voice annotation recording, IR-PhotoNotes annotation system, 1.91 mrad instantaneous field of view (IFOV), 3.5" LCD screen, 6 thermal color palettes, color alarm, spot temperature meter, drop-proof (2 m) |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | 14 °F - 122 °F; 10 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Thermal camera |
| Connectivity Technology | Wireless, wired |
| Width | 5.7 in |
| Depth | 4 in |
| Height | 10.5 in |
| Weight | 31.21 oz |
| Localization | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish |
| Expansion / Connectivity | |
| Ports | USB |
| Supported Memory Cards | microSD Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Strap, hard case, storage bag, battery charger, 2 rechargeable batteries |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | IP54, CISPR 11 class A, EN 61326-2-2, EN/IEC 61326-1, FCC 47 CFR Part 15 Subpart C, IEC 60068-2-27, IEC 60068-2-6, IEC 61010-1: Pollution Class 2, RoHS |
| Power | |
| Battery | Lithium ion (up to 3.5 hour(s)) |
| Software / System Requirements | |
| Software Included | Fluke Connect |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 95% (non-condensing) |
| Camera | |
| Type | Color - handheld - dust resistant / water resistant |
| Digital Video Format | AVI, IS3 |
| Max Digital Video Resolution | 384 x 288 |
| Supported Image Formats | BMP, JPEG, IS2 |
| Flash Memory | 4 GB |
| Features | 27Hz frame rate, dew point calculation, thermal sensitivity 40mK, picture-in-picture capability, voice annotation recording, IR-PhotoNotes annotation system, 1.91 mrad instantaneous field of view (IFOV), 3.5" LCD screen, 6 thermal color palettes, color alarm, spot temperature meter, drop-proof (2 m) |
| Lens Construction | |
| Type | Fixed focal |
| Min Focus Distance | 5.9 in |
| Horizontal Field of View (degree) | 42 |
| Vertical Field of View (degree) | 30 |
| Image Sensor | |
| Type | 0.1 MP |
| Interfaces | |
| Network Interface | Wi-Fi |
| Computer Interface | USB |
