Video converter - HDMI - VGA - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series HDMI to VGA Active Converter with Audio (F/M), 1920 x 1200 (1080p) @ 60 Hz - video converter - black |
| Device Type | Video converter |
| Max Resolution | 1920 x 1200 |
| Interfaces | 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB (power only) - 9 pin Micro-USB Type B |
| Dimensions (WxDxH) | 2.5 in x 0.4 in x 1.3 in |
| Enclosure Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video converter |
| Max Resolution | 1920 x 1200 at 60 Hz |

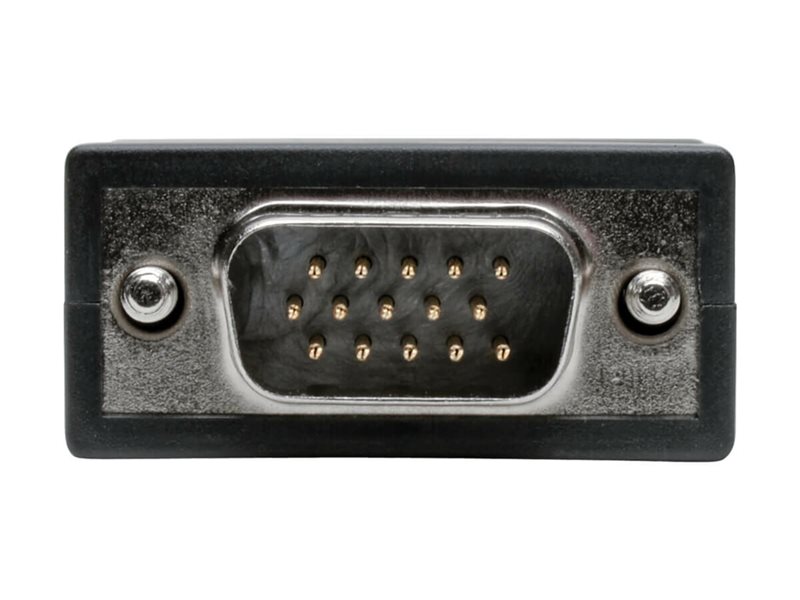

| Interfaces | 1 x HDMI input - 19 pin HDMI Type A - female ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) - male ¦ 1 x audio line-out - mini-phone stereo 3.5 mm - female ¦ 1 x USB (power only) - 9 pin Micro-USB Type B - female |
| Features | Active adapter (signal regeneration), gold plated connectors, nickel plated connectors, USB powered, 2-channel Embedded Audio, HDCP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

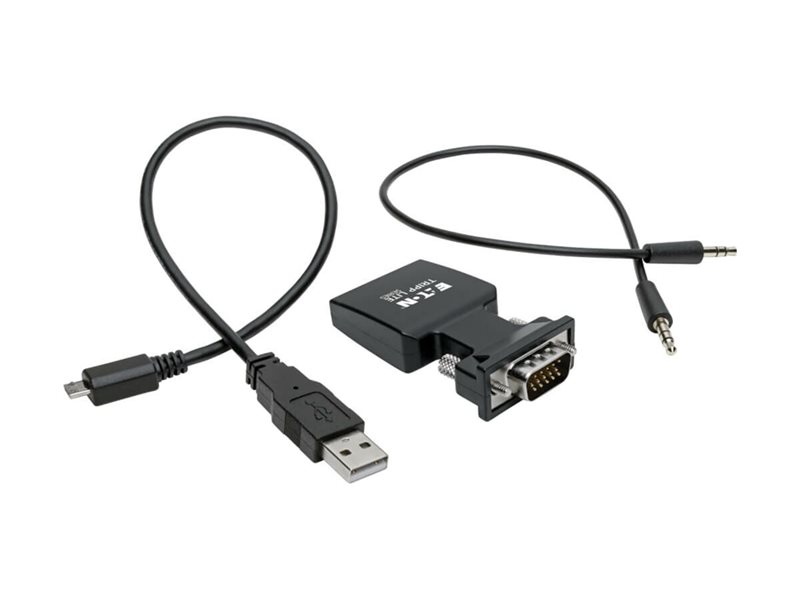

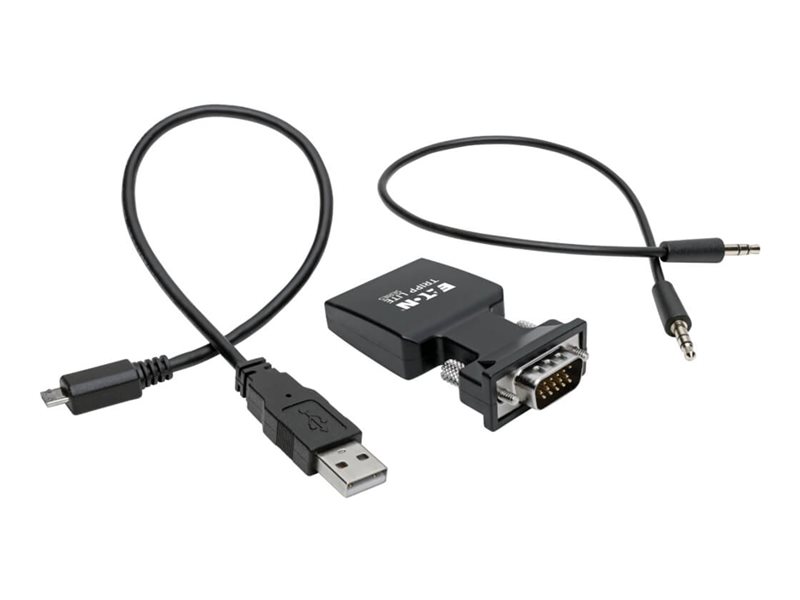

| Cables Included | 1 x USB type A to micro-USB type B cable - 1 ft ¦ 1 x audio cable - 1 ft |
| Compliant Standards | EDID compatible, FCC, REACH, RoHS2, HDCP 1.4, Plug and Play, RoHS |
| Width | 2.5 in |
| Depth | 0.4 in |
| Height | 1.3 in |
| Weight | 1.76 oz |
| Shipping Width | 7 in |
| Shipping Depth | 0.5 in |
| Shipping Height | 9 in |
| Shipping Weight | 1.76 oz |
| Enclosure Color | Black |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
