10/100/1000 Mbps, DIN/Wall Mount - Switch - unmanaged - 5 x 10/100/1000 - DIN rail mountable, wall-mountable - DC power - TAA Compliant
| Main Specifications | |
|---|---|

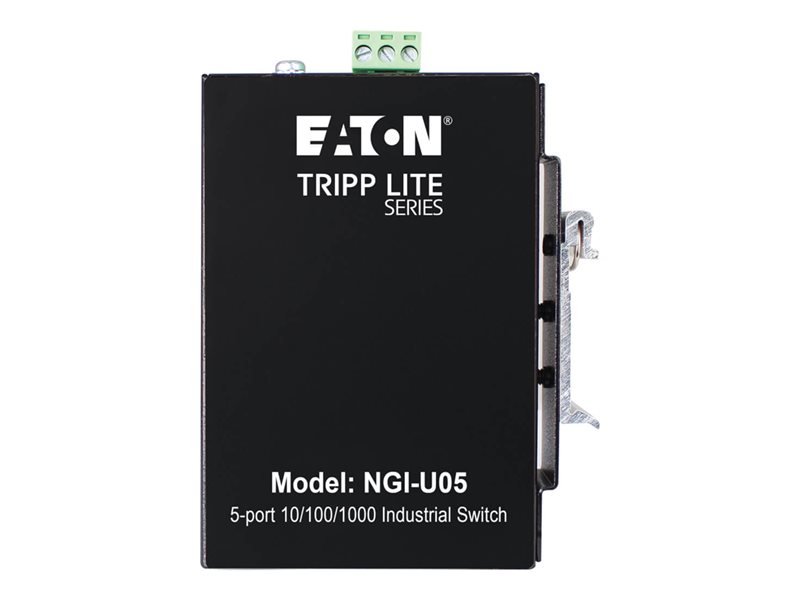

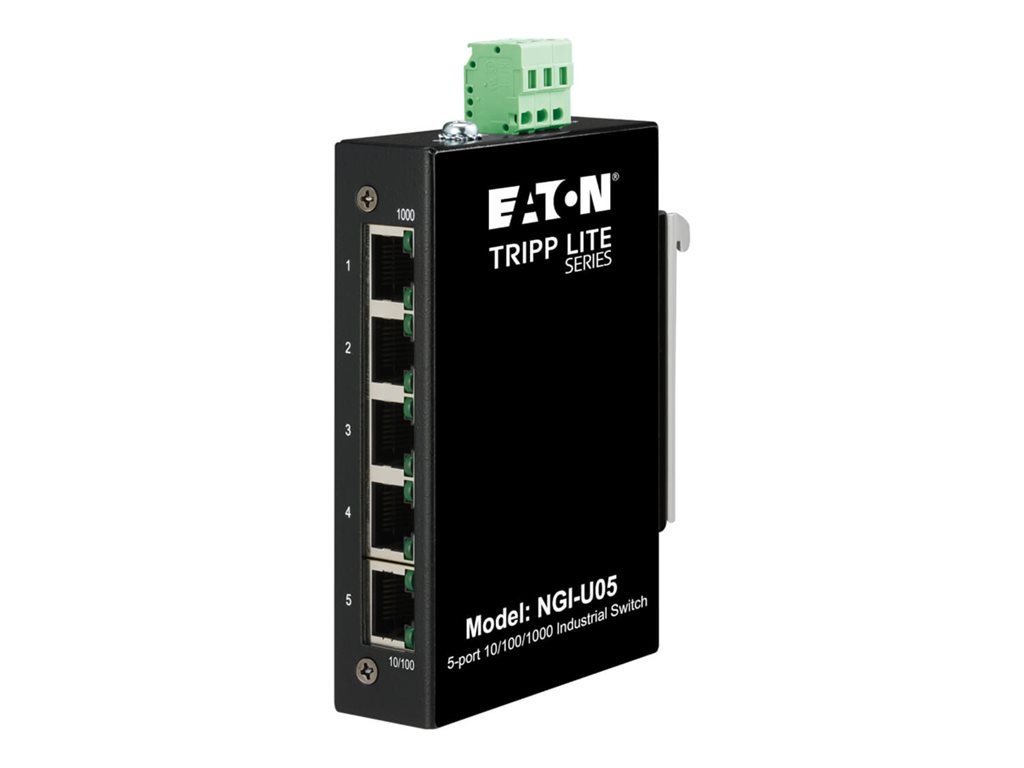

| Product Description | Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 5-Port - 10/100/1000 Mbps, DIN/Wall Mount - switch - 5 ports - unmanaged - TAA Compliant |
| Device Type | Switch - 5 ports - unmanaged |
| Ports | 5 x 10/100/1000 |
| Performance | Switching capacity: 10 Gbps |
| MAC Address Table Size | 2000 entries |
| Jumbo Frame Support | 9000 bytes |
| Features | Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | DC 9 - 48 V |
| Dimensions (WxDxH) | 4.3 in x 0.9 in x 2.9 in |
| Weight | 7.05 oz |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 5 ports - unmanaged |

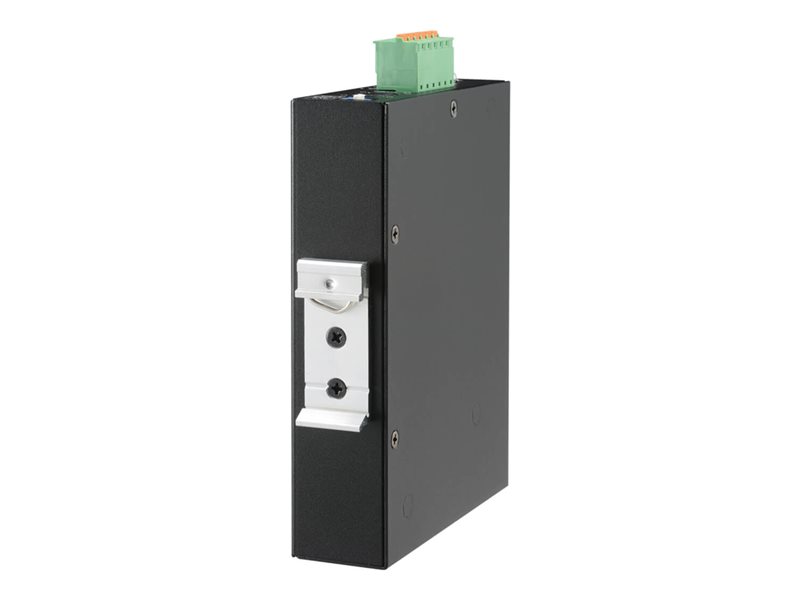

| Enclosure Type | DIN rail mountable, wall-mountable |
| Ports | 5 x 10/100/1000 |
| Performance | Switching capacity: 10 Gbps |
| MAC Address Table Size | 2000 entries |
| Jumbo Frame Support | 9000 bytes |
| Features | Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Power, LAN, link/activity, transmit, receive |
| Expansion / Connectivity | |
| Interfaces | 5 x 10/100/1000 Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | DIN-rail clip, wall mount brackets |
| Compliant Standards | FCC, RoHS, REACH, IEEE 802.3, IEEE 802.3u, Plug and Play |
| TAA Compliant | Yes |
| Power | |
| Voltage Required | DC 9 - 48 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 0.9 in |
| Height | 2.9 in |
| Weight | 7.05 oz |
