Main Specifications
|
---|
Product Description
|

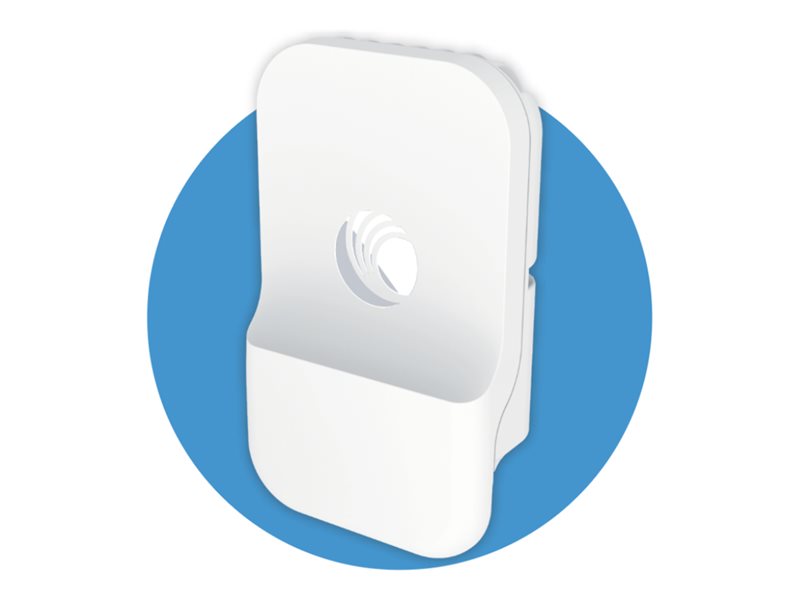

Cambium Networks Bridge-in-a-Box 1Gb - wireless bridge - outdoor, Ethernet - 802.11ay
|
Device Type
|
Wireless bridge
|
Form Factor
|
External - outdoor
|
Localization
|
United States
|
Data Link Protocol
|
IEEE 802.11ay
|
Frequency Band
|
60 GHz
|
Included Accessories
|
Power cord
|
Power Over Ethernet (PoE) Supported
|
PoE
|
Dimensions (WxDxH)
|
3.9 in x 2.1 in x 6.7 in
|
Weight
|
16.22 oz
|
General
|
---|
Device Type
|
Wireless bridge
|
Ruggedized Design
|
Outdoor
|
Width
|
3.9 in
|
Depth
|
2.1 in
|
Height
|
6.7 in
|
Weight
|
16.22 oz
|
Localization
|
United States
|
Expansion / Connectivity
|
---|
Interfaces
|
1 x 1000Base-T (PoE) - RJ-45
|
Miscellaneous
|
---|
Included Accessories
|
Power cord
|
Compliant Standards
|
IP67, IP66, FCC, ICC, EN 302 567 V2.1.1, EN 303 722 V0.0.4
|
Networking
|
---|
Form Factor
|
External
|
Connectivity Technology
|
Wireless
|
Data Transfer Rate
|
1 Gbps
|
Line Coding Format
|
BPSK, 16 QAM
|
Data Link Protocol
|
IEEE 802.11ay
|
Network / Transport Protocol
|
IPv4, IPv6
|
Remote Management Protocol
|
HTTP, HTTPS, SNMP 2c, SNMP 3
|
Frequency Band
|
60 GHz
|
Max Range Open Space
|
492 ft
|
Features
|
Layer 3 routing, Open/R support, cnMaestro support, ARQ support, 2KV Surge protection, 200 km/h wind survival
|
Encryption Algorithm
|
128-bit AES
|
Compliant Standards
|
IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1p
|
Power
|
---|
Power Over Ethernet (PoE) Supported
|
PoE
|
Power Consumption Operational
|
10 Watt
|
Environmental Parameters
|
---|
Min Operating Temperature
|
-40 °F
|
Max Operating Temperature
|
140 °F
|
Antenna
|
---|
Gain Level
|
22.5 dBi
|
