Network surveillance camera - dome - indoor, outdoor - vandal / tamper-proof - color (Day&Night) - 8 MP - 3840 x 2160 - 1440/30p, 360/30p - M12 mount - fixed iris - fixed focal - LAN 10/100 - MPEG-4 Part 10, MJPEG, H.264, H.265 - PoE Class 3 - TAA Compliant
| Main Specifications | |
|---|---|

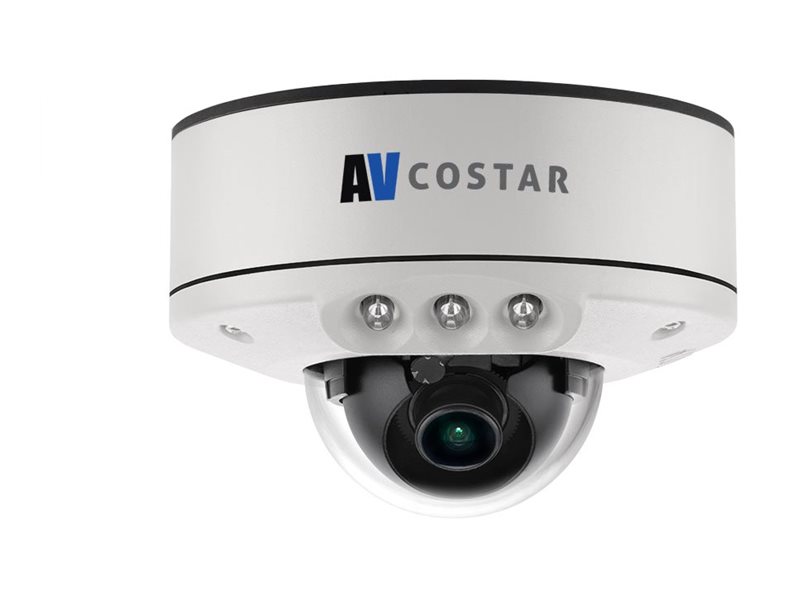

| Product Description | Arecont ConteraIP MicroDome LX AV8856DNIR-S - network surveillance camera - dome - TAA Compliant |
| Device Type | Network surveillance camera - fixed - dome - indoor, outdoor - vandal / tamper-proof |
| Camera Mount Type | Surface mount |
| Dimensions (WxDxH) | 3.9 in x 3.9 in x 3.1 in |
| Weight | 15.17 oz |
| Color | Pantone cool gray 1C, AV Costar white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1440/30p, 360/30p |
| Optical Sensor Type | CMOS - 1/2.8" - 8 MP |
| Minimum Illumination | 0.18 lux - color ¦ 0.018 lux - B&W |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/1.6 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile T) support, CorridorView, SNAPstream+, auto gain control, auto white balance, NightView Technology |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -4 °F - 122 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Camera Mount Type | Surface mount |
| Connectivity Technology | Wired |
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 3.1 in |
| Weight | 15.17 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | NDAA, UL, EN55024, CB, RoHS, EN 60950-1, WEEE, REACH, IK10, EN 55022 Class A, FCC CFR47 Part 15 A |
| Color | Pantone cool gray 1C, AV Costar white |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 7.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - indoor, outdoor - vandal / tamper-proof |
| Digital Video Format | MPEG-4 Part 10, MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 1440/30p, 360/30p |
| Minimum Illumination | 0.18 lux - color ¦ 0.018 lux - B&W |
| Infrared LEDs | 3 |
| Infrared Distance | 49 ft |
| Digital Video Capture Resolution | 3840 x 2160, 2592 x 1944, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1296 x 972, 1280 x 960, 1280 x 720, 960 x 540, 640 x 480, 640 x 360 |
| Frame Rate (max) | 30 frames per second |
| Features | Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile T) support, CorridorView, SNAPstream+, auto gain control, auto white balance, NightView Technology |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.6 in |
| Shipping Depth | 5.6 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 21.16 oz |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 fixed iris |
| Horizontal Field of View (degree) | 106.7 |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, HTTP, TCP/IP, UDP/IP, RTSP, RTP, IPv4, IPv6, TFTP, QOS |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
