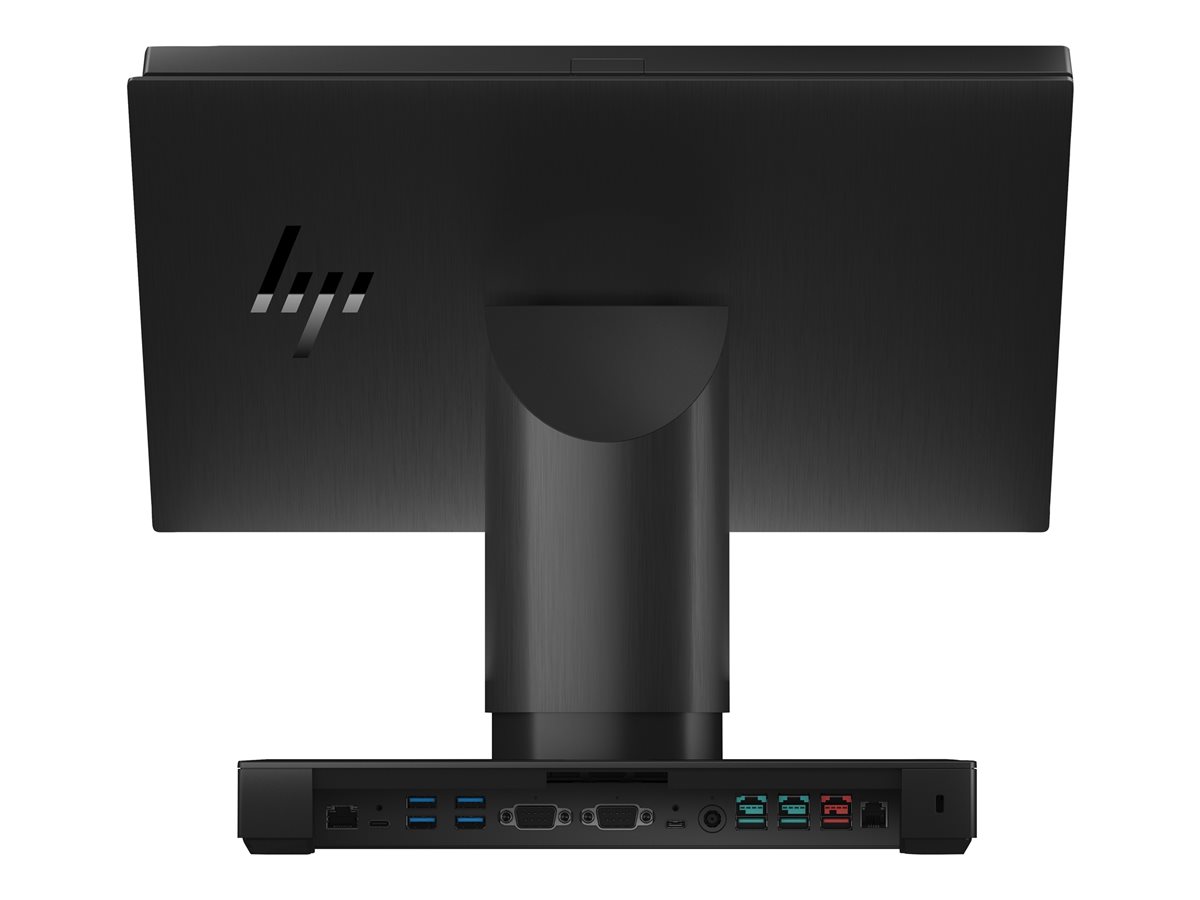

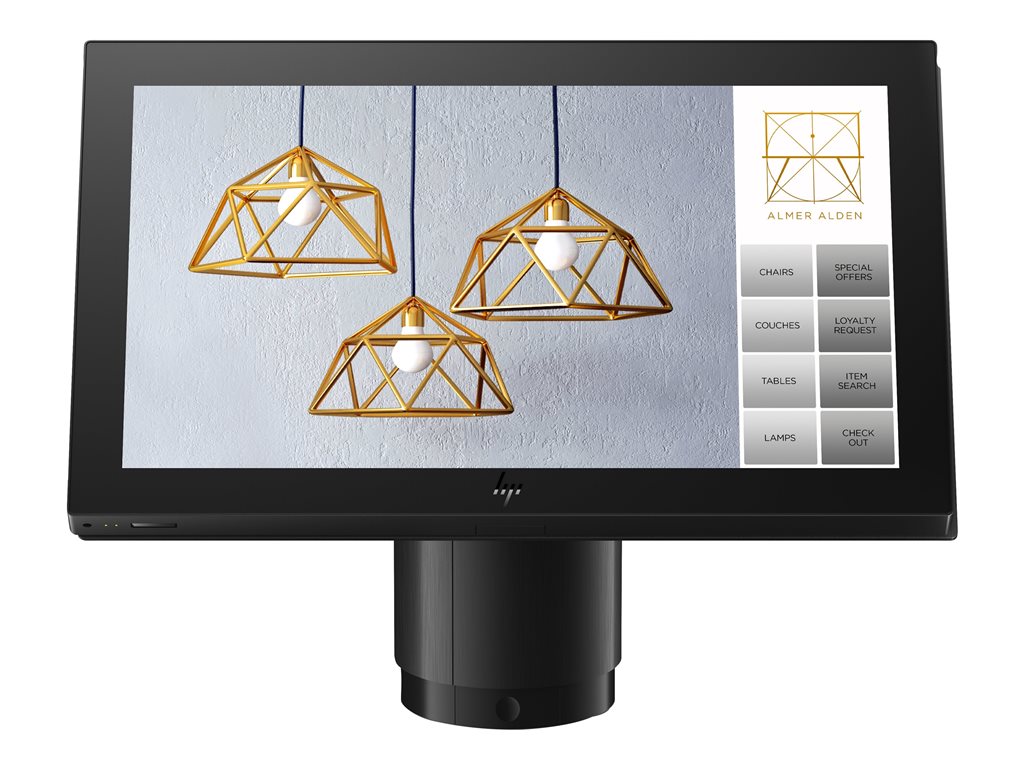

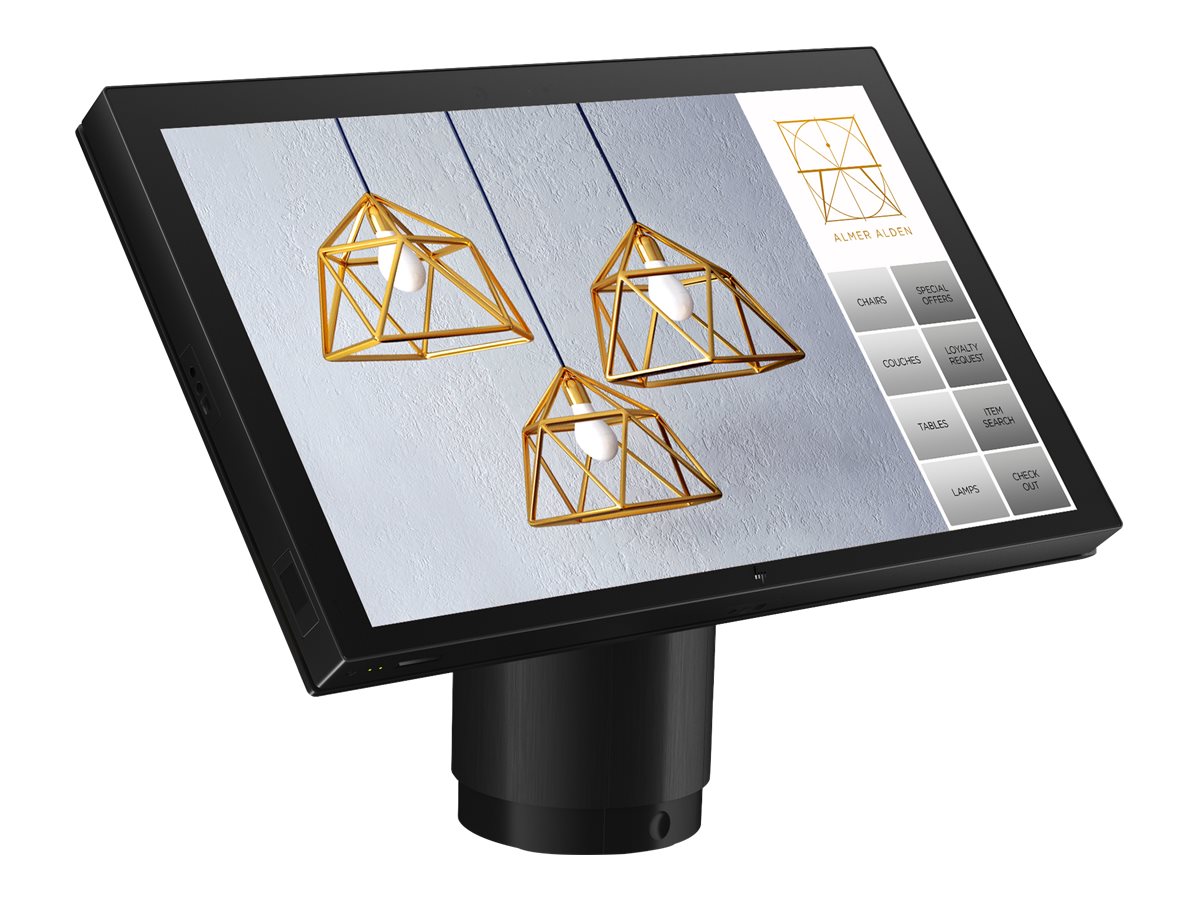

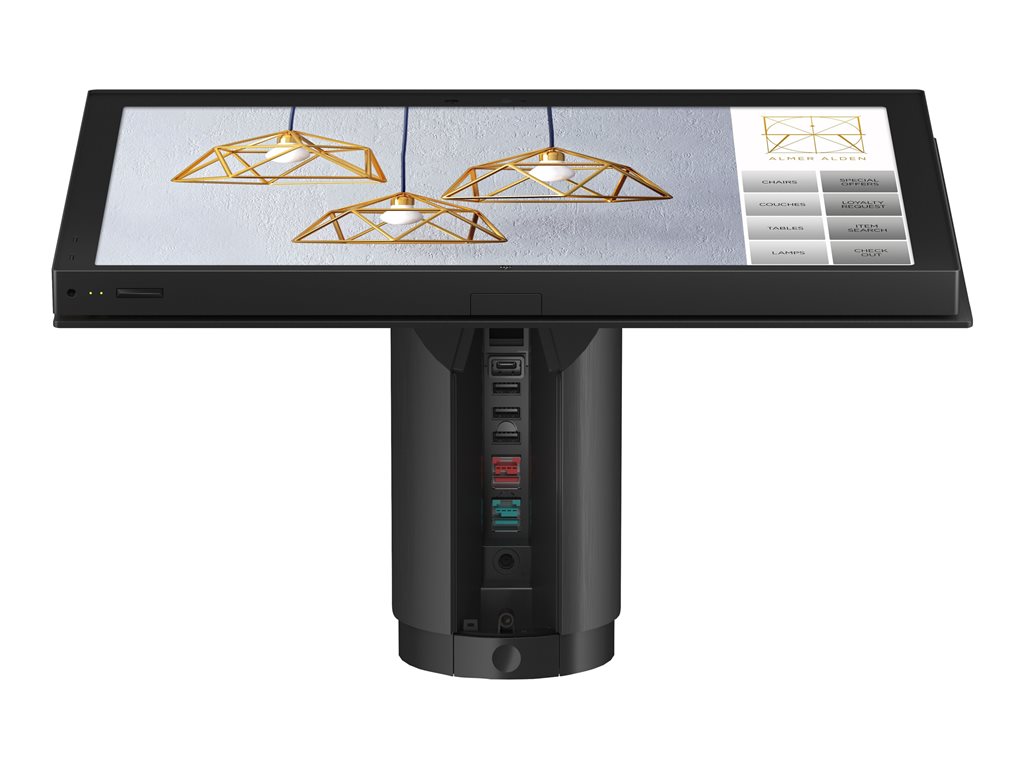

All-in-one 1 x Core i3 10100E / up to 3.8 GHz - RAM 8 GB - SSD 256 GB - NVMe, TLC - UHD Graphics 630 - Gigabit Ethernet - Win 10 IoT Enterprise - monitor: LED 15.6" 1920 x 1080 (Full HD) touchscreen - ebony black - Smart Buy
| Main Specifications | |
|---|---|
| Product Description | HP Engage One Pro - all-in-one Core i3 10100E 3.2 GHz - 8 GB - SSD 256 GB - LED 15.6" |
| Type | Point of sale terminal - all-in-one |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i3 (10th Gen) 10100E / 3.2 GHz (up to 3.8 GHz, (Quad-Core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory | 6 MB L3 cache |
| Cache Per Processor | 6 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | NVMe |
| Hard Drive | SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LED - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel UHD Graphics 630 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 IoT Enterprise |
| Software Included | HP Support Assistant, HP Client Security Manager, HP Image Assistant, HP System Software Manager, HP Sure Click, HP Device Guard, HP Credential Guard, HP Sure Sense, HP Sure Admin, HP Sure Recover Gen3, HP Sure Run Gen3, HP Client Security Manager Gen7 |
| Color | Ebony black |
| Image Color Disclaimer | The displayed product image may be a different color |
| Dimensions (WxDxH) | 15.7 in x 1 in x 9.5 in |
| Weight | 7.43 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Ebony black |
| Image Color Disclaimer | The displayed product image may be a different color |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 2 (total) / 1 (free) x M.2 Card - 2230/2280 (for internal storage) |
| Interfaces | 3 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 1 (Sleep and Charge) ¦ 1 x audio line-out ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C (powered 140W) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | WEEE 2002/96/EC, low halogen, RoHS 2011/65/EC |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, PXE support, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 90-265 V (50/60 Hz) |
| Power Provided | 280 Watt |
| Efficiency | 89% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% RH |
| Storage Controller | |
| Type | 1 x NVMe |
| RAID Level | RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED - IPS |
| Touchscreen | Yes (multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Color Gamut | 45% NTSC |
| Image Brightness | 400 cd/m² |
| Monitor Features | Anti-glare |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 Dynamic Video Memory Technology |
| Video Interfaces | USB-C |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 48 kHz |
| Compliant Standards | High Definition Audio |
| Speakers Included | 1 x amplifier ¦ 2 x right / left channel |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise English |
| Software | HP Support Assistant, HP Client Security Manager, HP Image Assistant, HP System Software Manager, HP Sure Click, HP Device Guard, HP Credential Guard, HP Sure Sense, HP Sure Admin, HP Sure Recover Gen3, HP Sure Run Gen3, HP Client Security Manager Gen7 |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Dimensions & Weight | |
| Width | 15.7 in |
| Depth | 1 in |
| Height | 9.5 in |
| Weight | 7.43 lbs |
| Processor / Chipset | |
| CPU | Intel Core i3 (10th Gen) 10100E |
| Clock Speed | 3.2 GHz |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| Chipset Type | Intel Q470E |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
