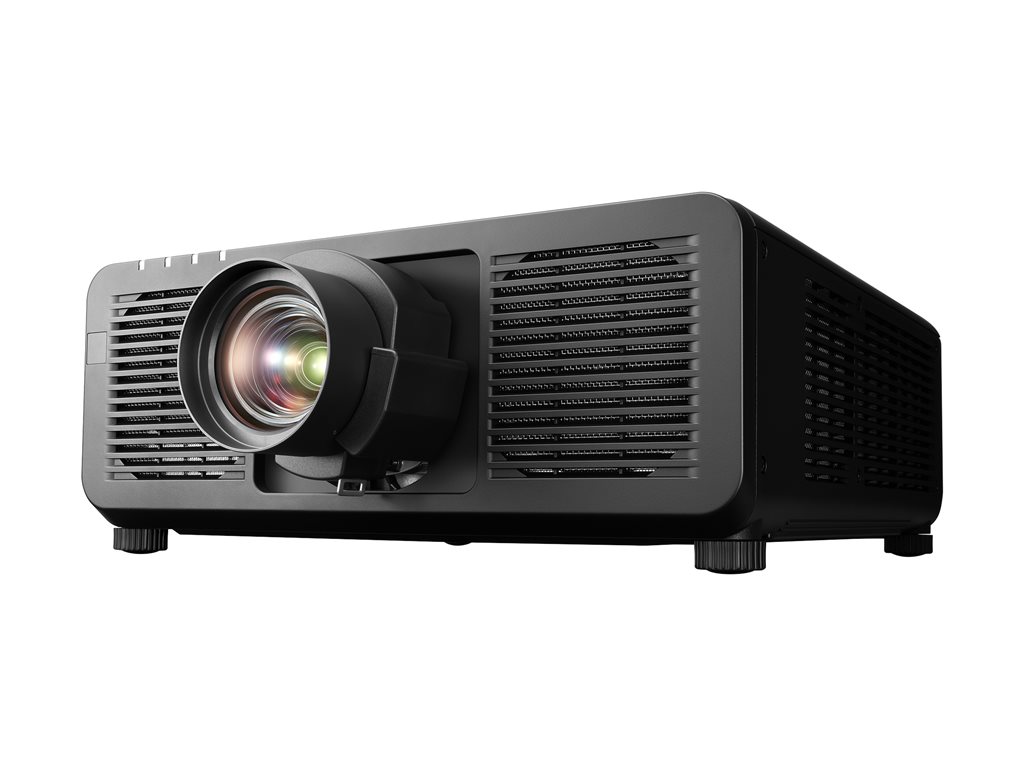

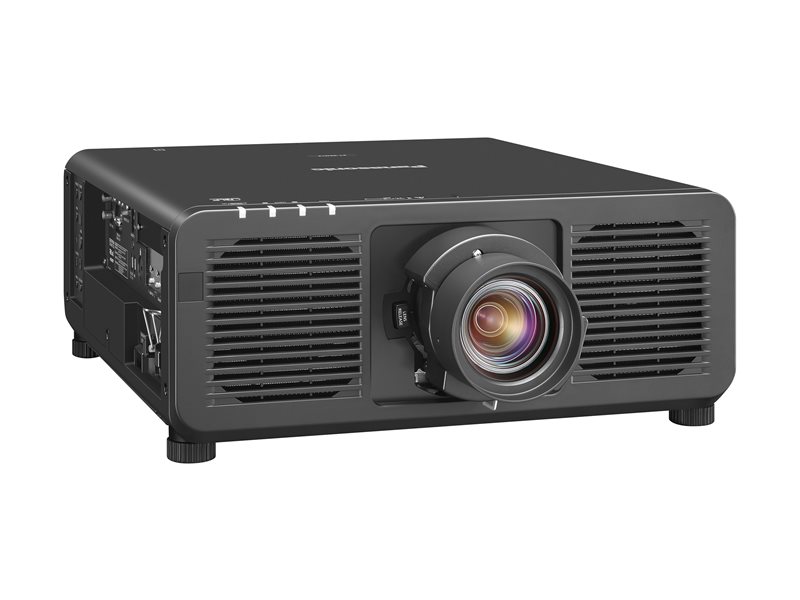

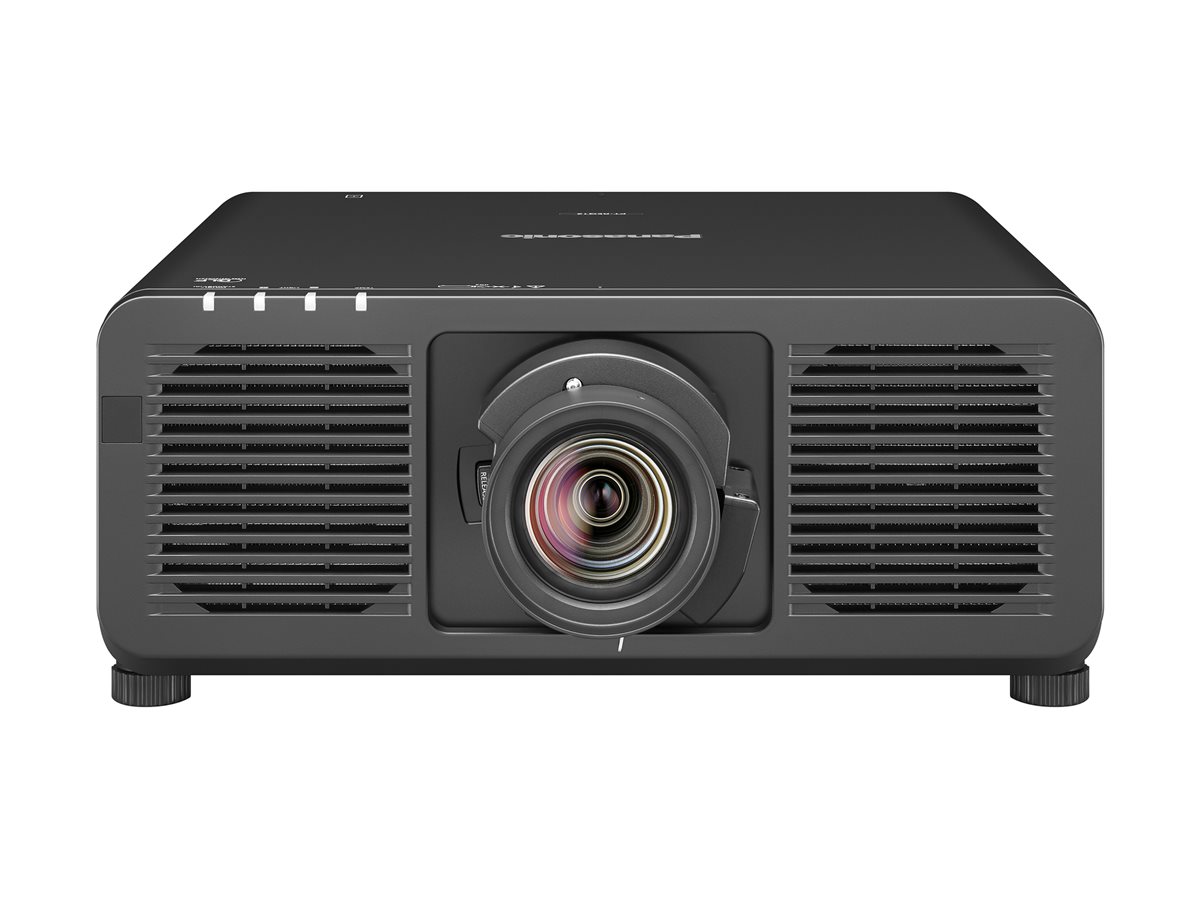

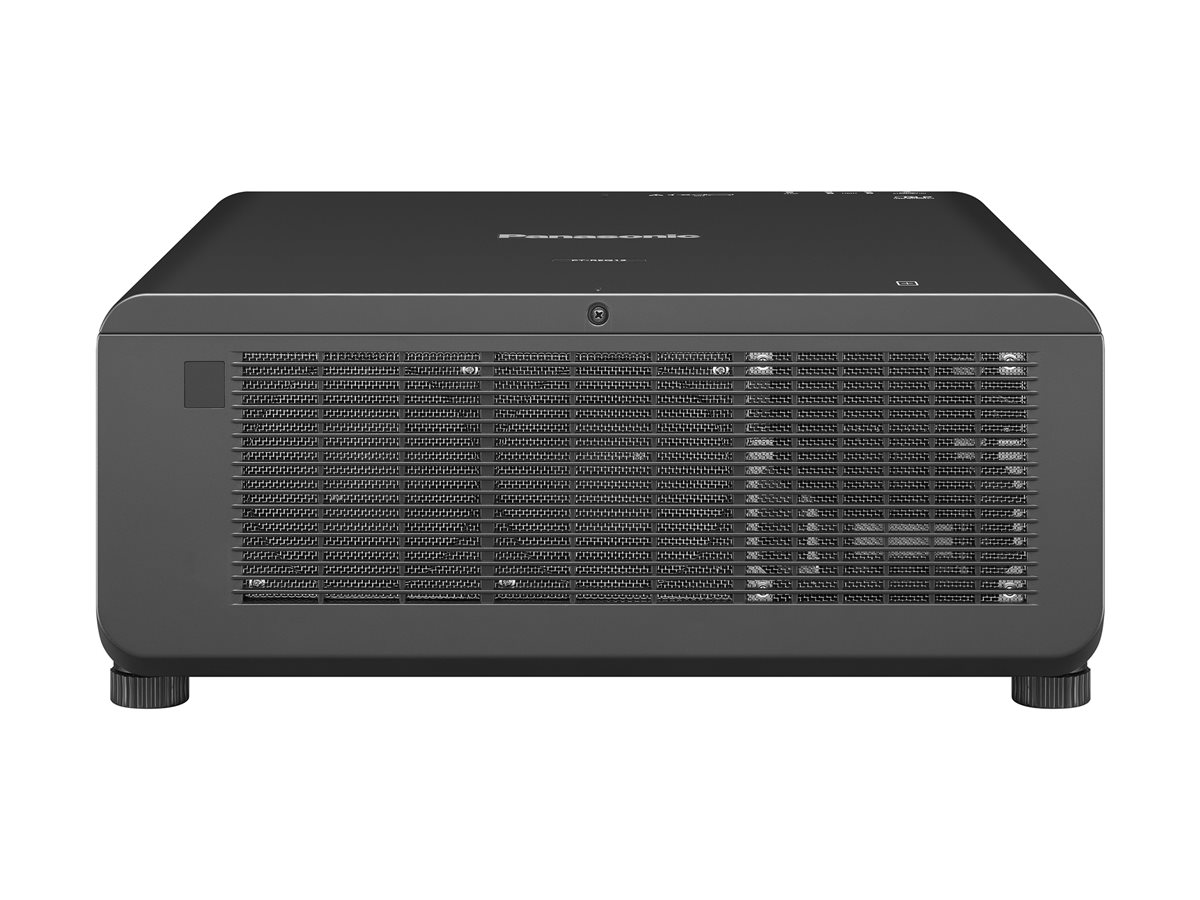

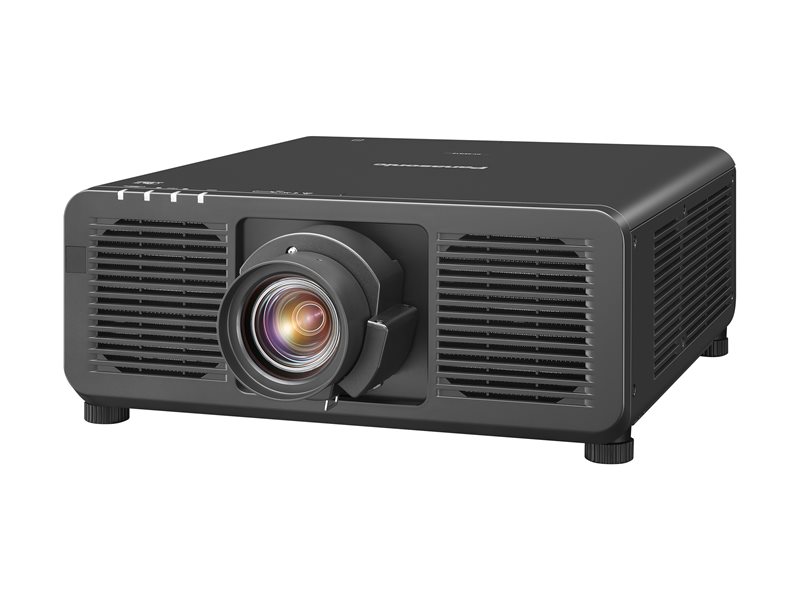

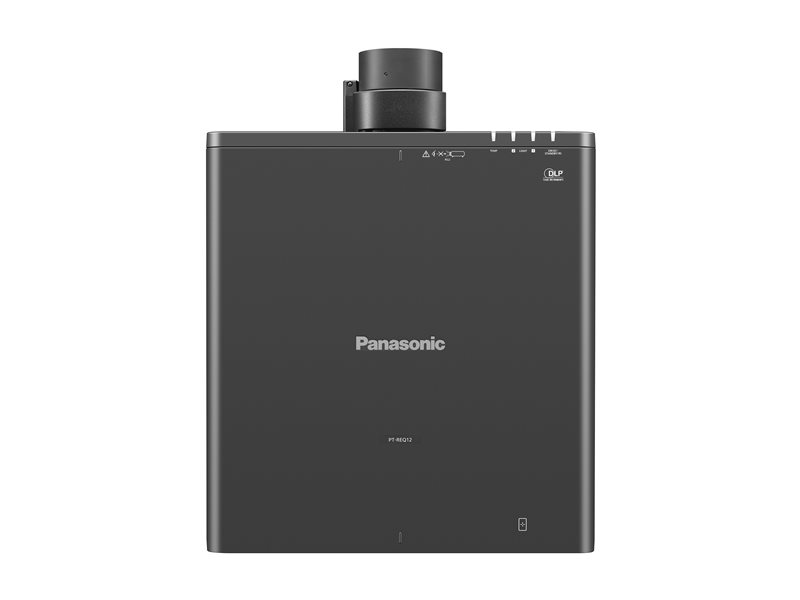

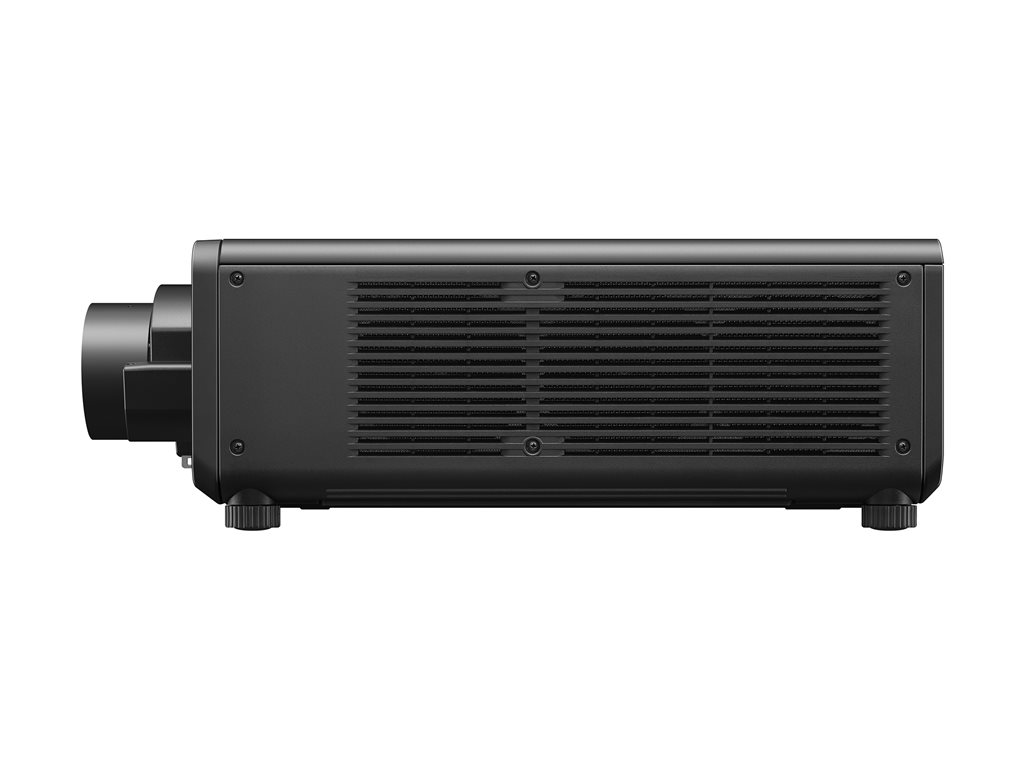

DLP projector - laser diode - 12000 lumens - 3840 x 2400 - 16:10 - 4K - no lens - LAN - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Panasonic PT-REQ12LBUG - DLP projector - no lens - LAN - black - TAA Compliant |
| Device Type | DLP projector - 4K |
| Color | Black |
| Brightness | 12000 lumens |
| Contrast Ratio | 20000:1 (dynamic) |
| Resolution | 3840 x 2400 |
| Native Aspect Ratio | 16:10 |
| Lens | No lens |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Video Input | LAN |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 19.6 in x 21.2 in x 8.3 in |
| Weight | 59.3 lbs |
| TAA Compliant | Yes |
| General | |
| Device Type | DLP projector - 4K |
| Networking | Ethernet |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Slots | 1 x Intel SDM |
| Interfaces | 1 x DisplayPort - 20 pin DisplayPort ¦ 2 x HDMI - 19 pin HDMI Type A ¦ 1 x Sync in - BNC ¦ 1 x Sync out - BNC ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) (management) ¦ 1 x serial RS-232C output - 9 pin D-Sub (DB-9) (male) (management) ¦ 1 x remote control input - mini-phone stereo 3.5 mm (management) ¦ 1 x remote control output - mini-phone stereo 3.5 mm (management) ¦ 1 x remote control input - 9 pin D-Sub (DB-9) (management) ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Miscellaneous | |
| Included Accessories | Remote control, 2 x AAA batteries |
| TAA Compliant | Yes |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Multi Projector Monitoring & Control Software, Logo Transfer Software, Geometry Manager Pro, Smart Projector Control App, Projector Network Setup |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Sound Emission | 39 dB |
| Sound Emission (Economic Mode) | 35 dB |
| Video Input | |
| Video Interfaces | HDMI, 12G-SDI, DIGITAL LINK, DisplayPort |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 19.6 in |
| Depth | 21.2 in |
| Height | 8.3 in |
| Weight | 59.3 lbs |
| Projector | |
| Brightness | 12000 lumens |
| Contrast Ratio | 20000:1 (dynamic) |
| Image Size | 70.1 in - 700 in |
| Uniformity | 90 % |
| Resolution | 4K - 3840 x 2400 |
| Native Aspect Ratio | 16:10 |
| Display Format | 2,304,000 pixels (1920 x 1200) |
| Max Sync Rate (V x H) | 240 Hz |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction, lens shift dial (horizontal), lens shift dial (vertical) |
| Features | 360° projection, Deep Color, Extron XTP certified, Quad Pixel Drive, art-net compatible, Crestron Connected |
| Lens | |
| Type | No lens |
