Network surveillance / panoramic camera - PTZ - outdoor, indoor - vandal / weatherproof - color (Day&Night) - 8 MP - 15360 x 2160 - motorized - audio - GbE - H.264, H.265, MJPEG, MPEG-4 Part 10 - DC 24 V / AC 24 V / PoE
| Main Specifications | |
|---|---|

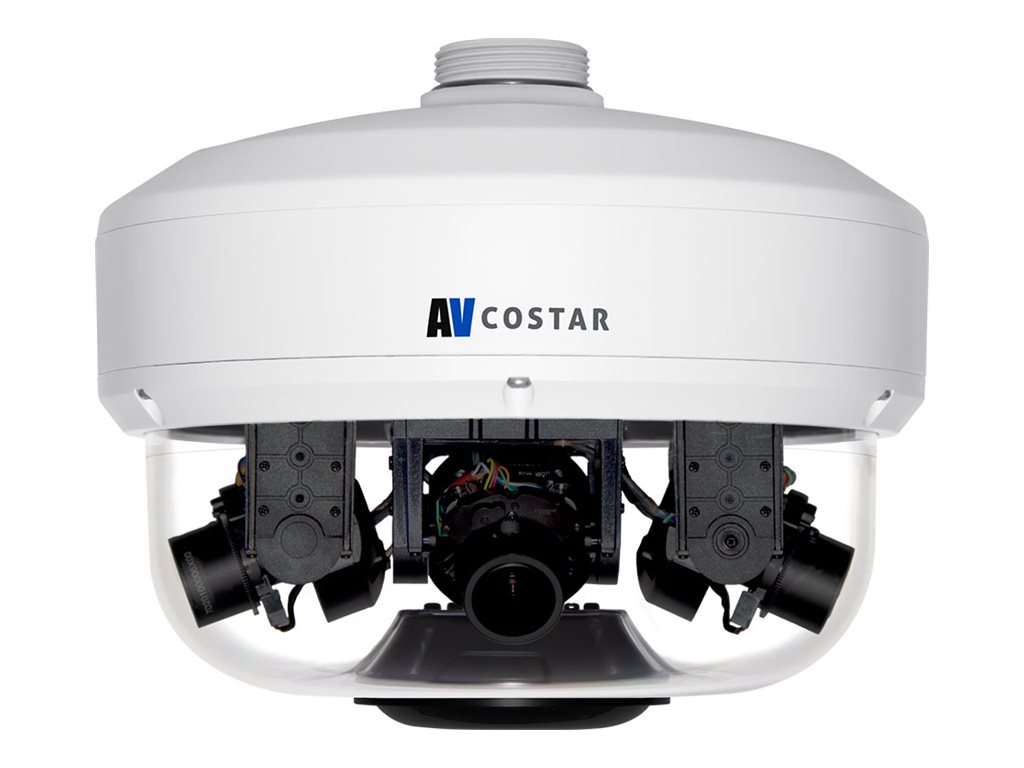

| Product Description | AV Costar ConteraIP Omni LX AV32576RSIR - network surveillance / panoramic camera |
| Device Type | Network surveillance / panoramic camera - pan / tilt / zoom - outdoor, indoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 9.7 in x 8 in x 9.7 in |
| Weight | 7.56 lbs |
| Color | White, pantone cool gray 1C |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 15360 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/1.8" - 8 MP |
| Minimum Illumination | 0.15 lux - color ¦ 0.15 lux - B&W |
| Focal Length Control | Motorized zoom |
| Focal Length | 4 mm - 10 mm |
| Lens Iris | F/1.4 |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 24 V / AC 24 V / PoE |
| Features | SNAPstream+, Forensic zooming, NightView Technology, On Screen Display, Privacy Mask Function, Wide Dynamic Range (WDR), bit rate control, motion detection, multi-streaming, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, Auto Backlight Compensation, auto gain control, auto white balance, manual white balance, Flicker detection, ePTZ, Multicast Streaming |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -40 °F - 122 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance / panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.711 |
| Connectivity Technology | Wired |
| Width | 9.7 in |
| Depth | 8 in |
| Height | 9.7 in |
| Weight | 7.56 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | SDXC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC CFR47 Part 15 B Class A, REACH, RoHS, WEEE, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN 60950, IEEE 802.3at, IK10, IP66, IEEE 802.1x |
| Color | White, pantone cool gray 1C |
| Power | |
| Power Requirements | DC 24 V / AC 24 V / PoE |
| Power Device | 40 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265, MJPEG, MPEG-4 Part 10 |
| Max Digital Video Resolution | 15360 x 2160 |
| Motion Detection | Yes |
| Minimum Illumination | 0.15 lux - color ¦ 0.15 lux - B&W |
| Digital Video Capture Resolution | 3840 x 2160, 2592 x 1944, 2560 x 1440, 2304 x 1296, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1296 x 972, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480, 640 x 360, 15360 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Features | SNAPstream+, Forensic zooming, NightView Technology, On Screen Display, Privacy Mask Function, Wide Dynamic Range (WDR), bit rate control, motion detection, multi-streaming, ONVIF (Profile T) support, ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, Auto Backlight Compensation, auto gain control, auto white balance, manual white balance, Flicker detection, ePTZ, Multicast Streaming |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 28.5 in |
| Shipping Depth | 14.6 in |
| Shipping Height | 13 in |
| Shipping Weight | 10.1 lbs |
| Lens Construction | |
| Type | Motorized zoom |
| Focal Length | 4 mm - 10 mm |
| Lens Iris | F/1.4 |
| Horizontal Field of View (degree) | 45 - 110 |
| Image Sensor | |
| Type | 8 MP CMOS 1/1.8" |
| Total Pixels | 3840 x 2160 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | SNMP, HTTPS, IPv6, DHCP, HTTP, IPv4, SSL, TCP/IP, UPnP, UDP/IP, RTCP, RTSP, RTP, SMTP, NTP, FTP |
| Panning | |
| Range (degree) | 360 |
| Tilting | |
| Range (degree) | 90 |
