USFF 1 x Core i3 8100T up to - RAM 8 GB - SSD 512 GB - NVMe, TLC - Quadro P400 - Gigabit Ethernet - Win 10 Pro 64-bit - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HP Engage Flex Pro-C Retail System - USFF Core i3 8100T 3.1 GHz - 8 GB - SSD 512 GB |
| Type | Point of sale terminal - USFF |
| Processor | 1 x Intel Core i3 (8th Gen) 8100T / 3.1 GHz (Quad-Core) |
| Cache Memory | 6 MB L3 cache |
| Cache Per Processor | 6 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 512 GB - PCI Express - M.2 - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA Quadro P400 / Intel UHD Graphics 610 |
| Video Memory | 2 GB GDDR5 SDRAM |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.0 |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 Pro 64-bit Edition |
| Software Included | HP Recovery Manager, HP Support Assistant, HP ePrint, HP Hotkey Support, Password Manager, HP Secure Erase, HP BIOSphere, HP Client Catalog (free download), HP Client Security Manager, HP JetAdvantage, HP Wireless Wakeup, HP System Software Manager (free download), HP Sure Click, HP BIOSphere Gen4, HP Manageability & Integration Kit Gen2, Power On Authentication, HP Sure Run, HP Sure Recover, HP Sure Sense, Device Guard, HP Sure Admin, HP DriveLock, Absolute Persistence Module, HP Sure Start Gen4, HP Driver Packs (free download) |
| Dimensions (WxDxH) | 11.8 in x 11.9 in x 3.9 in |
| Weight | 8.8 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | USFF |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x PCIe 3.0 x16 - half-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-height (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 - half-height (x2 mode) ¦ 2 (total) / 1 (free) x M.2 Card |

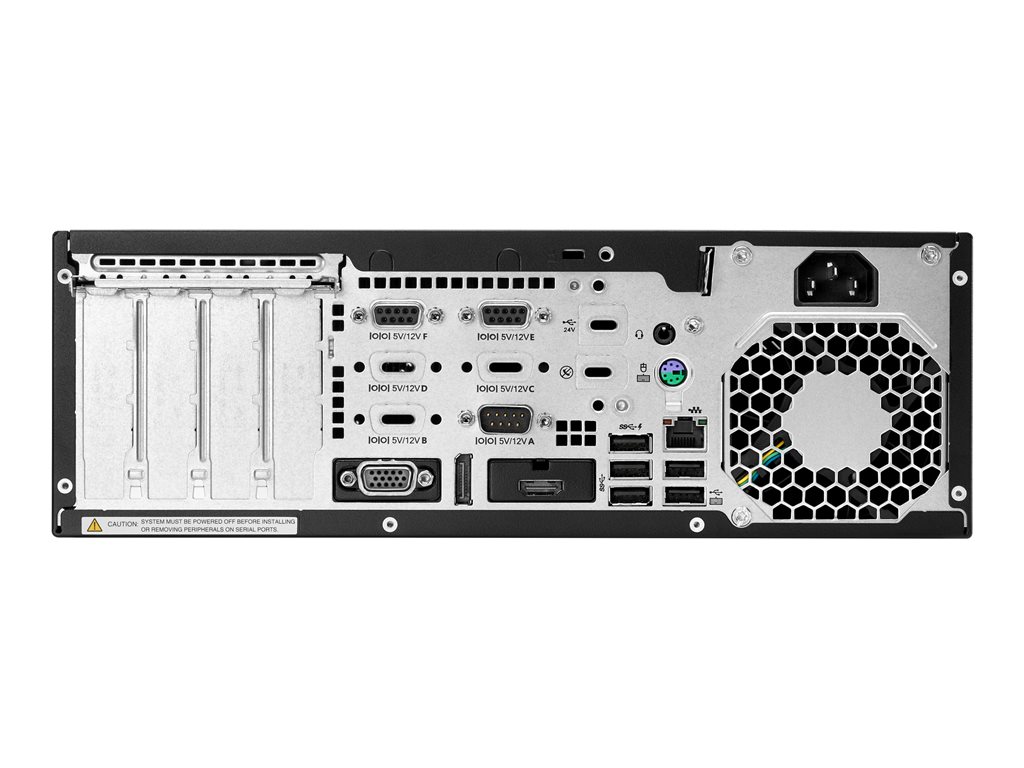

| Interfaces | 5 x USB 3.1 Gen 1 (2 front, 3 rear) (one of them is Sleep and Charge) ¦ 1 x headphones/microphone ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort 2.0 ¦ 1 x VGA ¦ 3 x Mini DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | CSA, UL, VCCI, C-Tick, BSMI, IEC 60601-1-2, FCC, RoHS, WEEE, Common Criteria EAL4+, KC, low halogen, IEC 950, TUV-GS |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AC 9260 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 250 Watt |
| Efficiency | 92% at 50% Load, 90% at 20% Load, 89% at 100% Load |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | L3 cache - 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA Quadro P400 / Intel UHD Graphics 610 |
| Video Memory | 2 GB GDDR5 SDRAM |
| Video Interfaces | VGA, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition |
| Software | HP Recovery Manager, HP Support Assistant, HP ePrint, HP Hotkey Support, Password Manager, HP Secure Erase, HP BIOSphere, HP Client Catalog (free download), HP Client Security Manager, HP JetAdvantage, HP Wireless Wakeup, HP System Software Manager (free download), HP Sure Click, HP BIOSphere Gen4, HP Manageability & Integration Kit Gen2, Power On Authentication, HP Sure Run, HP Sure Recover, HP Sure Sense, Device Guard, HP Sure Admin, HP DriveLock, Absolute Persistence Module, HP Sure Start Gen4, HP Driver Packs (free download) |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | No keyboard, no mouse |
| Dimensions & Weight | |
| Width | 11.8 in |
| Depth | 11.9 in |
| Height | 3.9 in |
| Weight | 8.8 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9 in |
| Shipping Depth | 15.7 in |
| Shipping Height | 19.6 in |
| Shipping Weight | 11 lbs |
| Processor / Chipset | |
| CPU | Intel Core i3 (8th Gen) 8100T |
| Clock Speed | 3.1 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel Q370 |
