USFF 1 x Core i3 8100 up to - RAM 8 GB - SSD 256 GB - NVMe, TLC - UHD Graphics 630 - Gigabit Ethernet - Win 10 Pro (includes Win 11 Pro License) - monitor: none - keyboard: US
| Main Specifications | |
|---|---|
| Product Description | HP Engage Flex Pro-C Retail System - USFF Core i3 8100 3.6 GHz - 8 GB - SSD 256 GB - US |
| Type | Point of sale terminal - USFF |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i3 (8th Gen) 8100 / 3.6 GHz (Quad-Core) |
| Cache Memory | 6 MB L3 cache |
| Cache Per Processor | 6 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB - PCI Express - M.2 2280 - NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 630 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 Pro (downgrade from Windows 11 Pro) + Windows 11 Pro License |
| Software Included | HP Recovery Manager, HP Support Assistant, HP ePrint, HP Hotkey Support, HP Secure Erase, HP Client Catalog, HP BIOS Config Utility, HP JumpStart, HP Noise Cancellation, HP System Software Manager, HP JetAdvantage, HP Wireless Wakeup, HP Sure Click, HP BIOSphere Gen4, HP Manageability & Integration Kit Gen2, HP Client Security Suite Gen4, HP Driver Packs (free download) |
| Dimensions (WxDxH) | 11.8 in x 11.9 in x 3.9 in |
| Weight | 8.8 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | USFF |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x PCIe x16 - half-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe x16 - half-height (x4 mode) ¦ 2 (total) / 2 (free) x PCIe x4 - half-height |

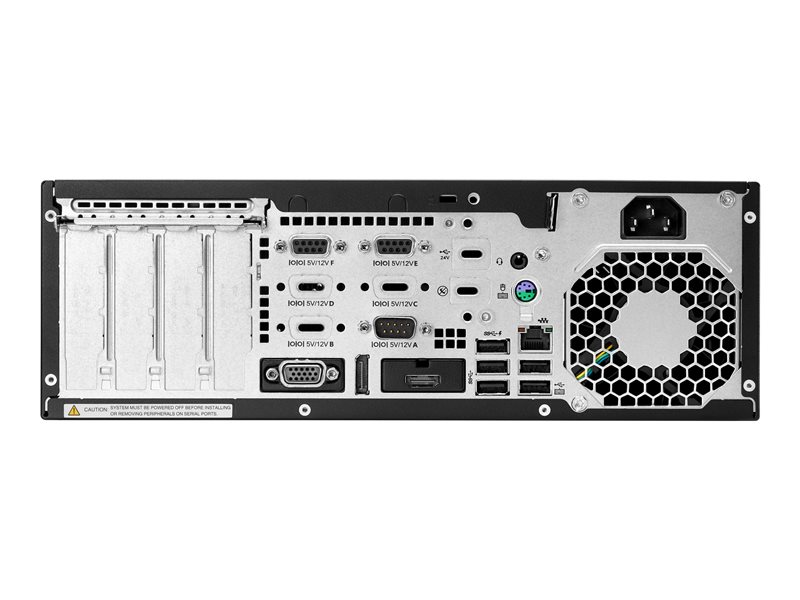

| Interfaces | 1 x USB 3.1 Gen 1 (charging) ¦ 1 x headphones/microphone ¦ 2 x USB 3.1 Gen 1 ¦ 1 x DisplayPort 2.0 ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, TUV GS, VCCI, C-Tick, BSMI, IEC 60601-1-2, FCC, RoHS, WEEE, KC, low halogen, IEC 950 |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 250 Watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | L3 cache - 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 Dynamic Video Memory Technology |
| Video Interfaces | DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Pro (available through downgrade rights from Windows 11 Pro) + Windows 11 Pro License - English |
| Software | HP Recovery Manager, HP Support Assistant, HP ePrint, HP Hotkey Support, HP Secure Erase, HP Client Catalog, HP BIOS Config Utility, HP JumpStart, HP Noise Cancellation, HP System Software Manager, HP JetAdvantage, HP Wireless Wakeup, HP Sure Click, HP BIOSphere Gen4, HP Manageability & Integration Kit Gen2, HP Client Security Suite Gen4, HP Driver Packs (free download) |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 11.8 in |
| Depth | 11.9 in |
| Height | 3.9 in |
| Weight | 8.8 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9 in |
| Shipping Depth | 15.7 in |
| Shipping Height | 19.6 in |
| Keyboard | |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i3 (8th Gen) 8100 |
| Clock Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q370 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
