Rediscover your free time with Ridge. An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals.
With generous compatibility and uncompromising accessibility, building in Ridge is a satisfying journey. And once you're ready to press play, ample ventilation helps keep your system running smoothly so you can focus on what you enjoy more.
An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
Meticulously engineered to maximize its capability while minimizing its footprint. Small form factor case with a volume of 12.6 liters.

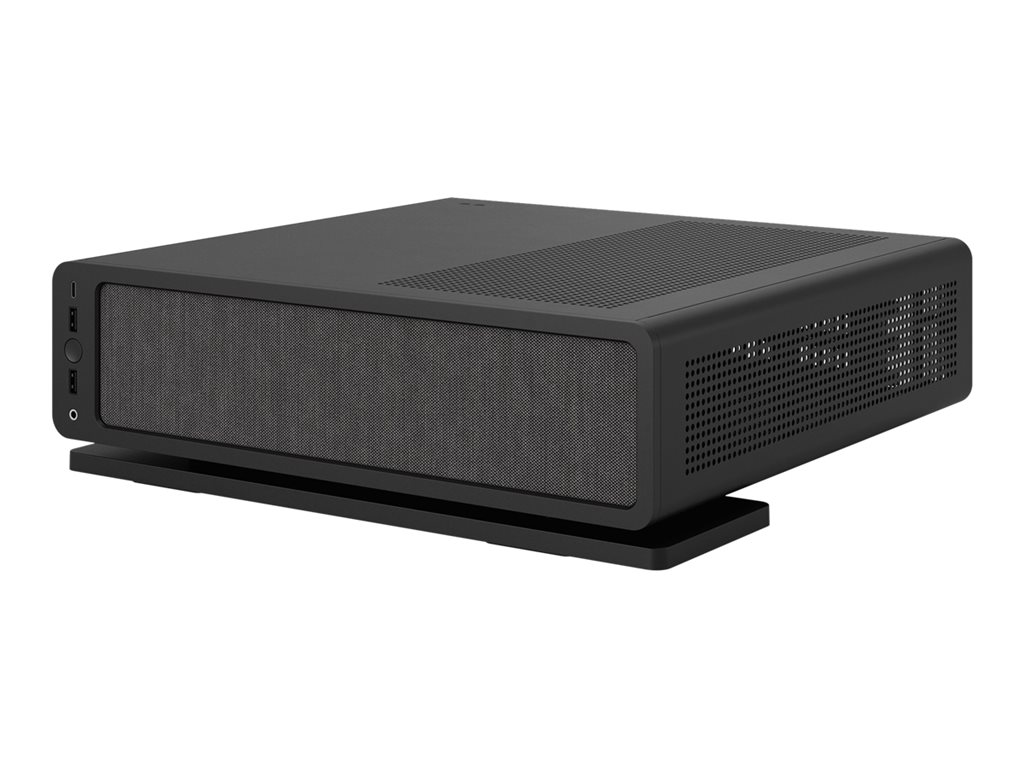

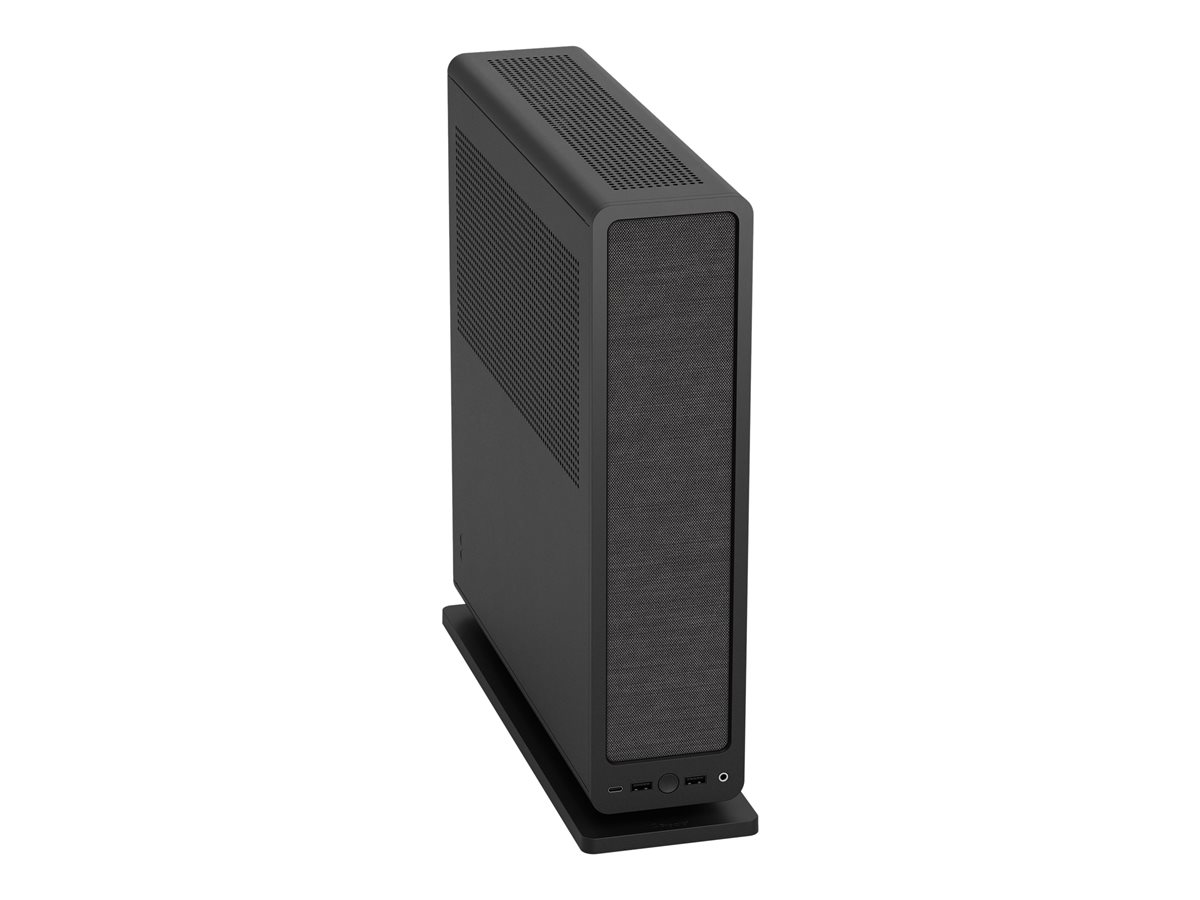

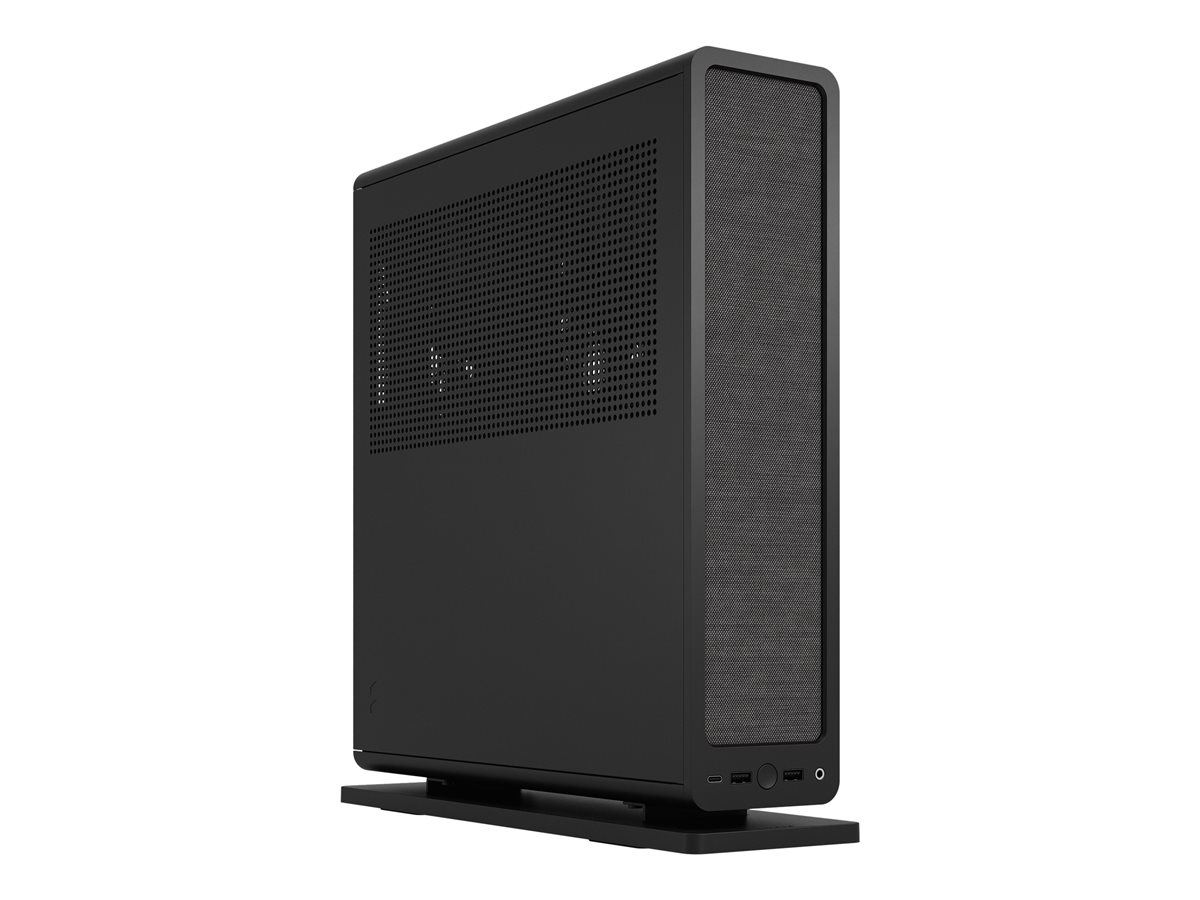

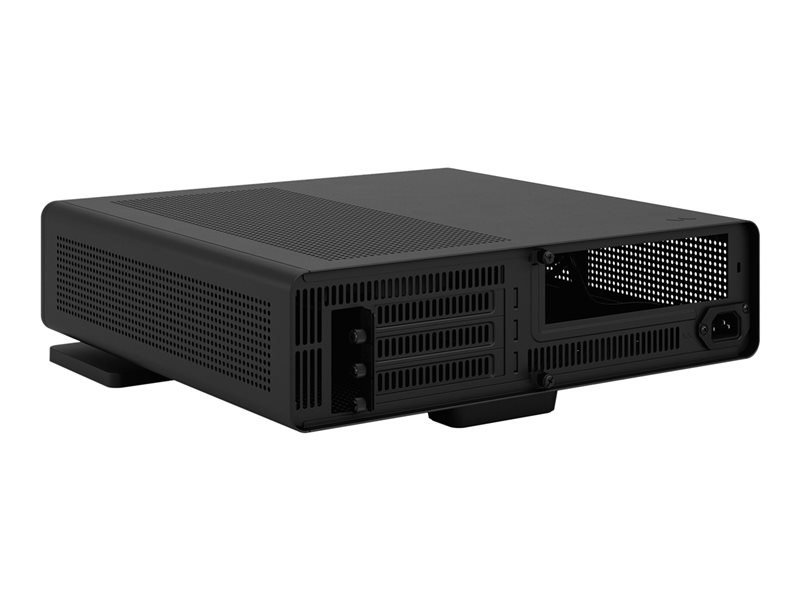

Multiple feet configurations allow for both horizontal and vertical orientation. Elevate any gaming desk, workspace or entertainment area.

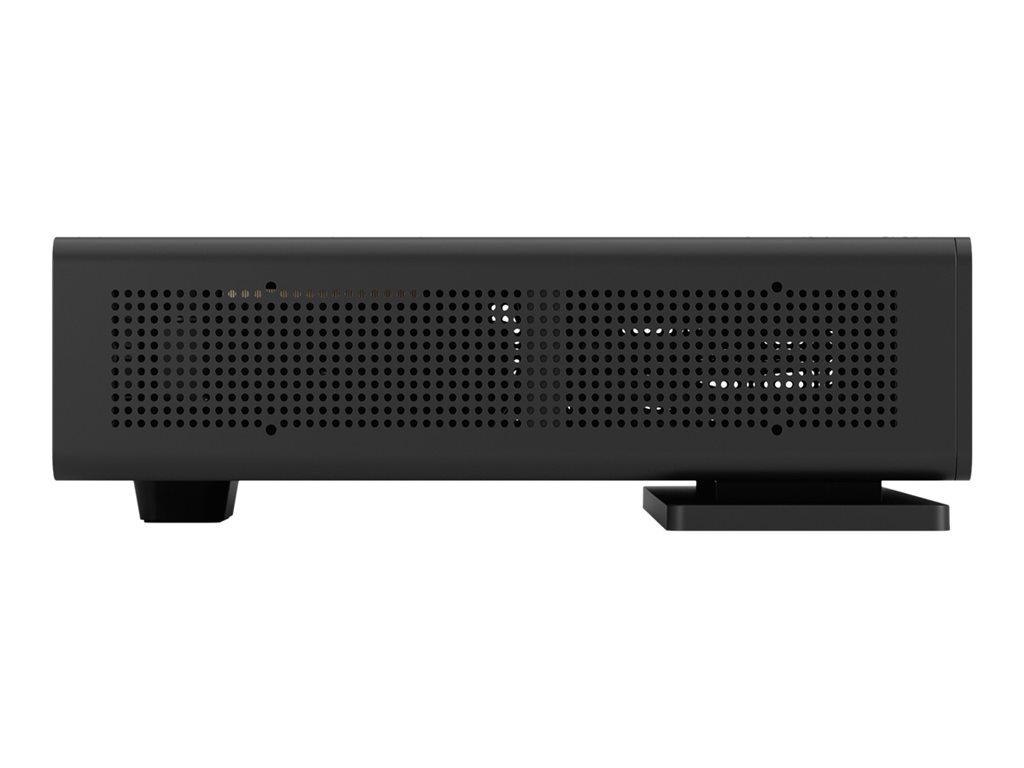

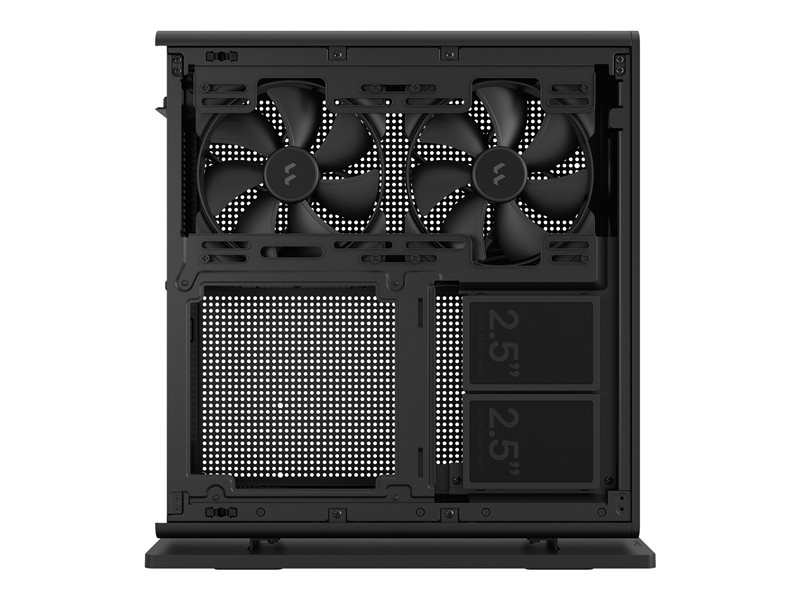

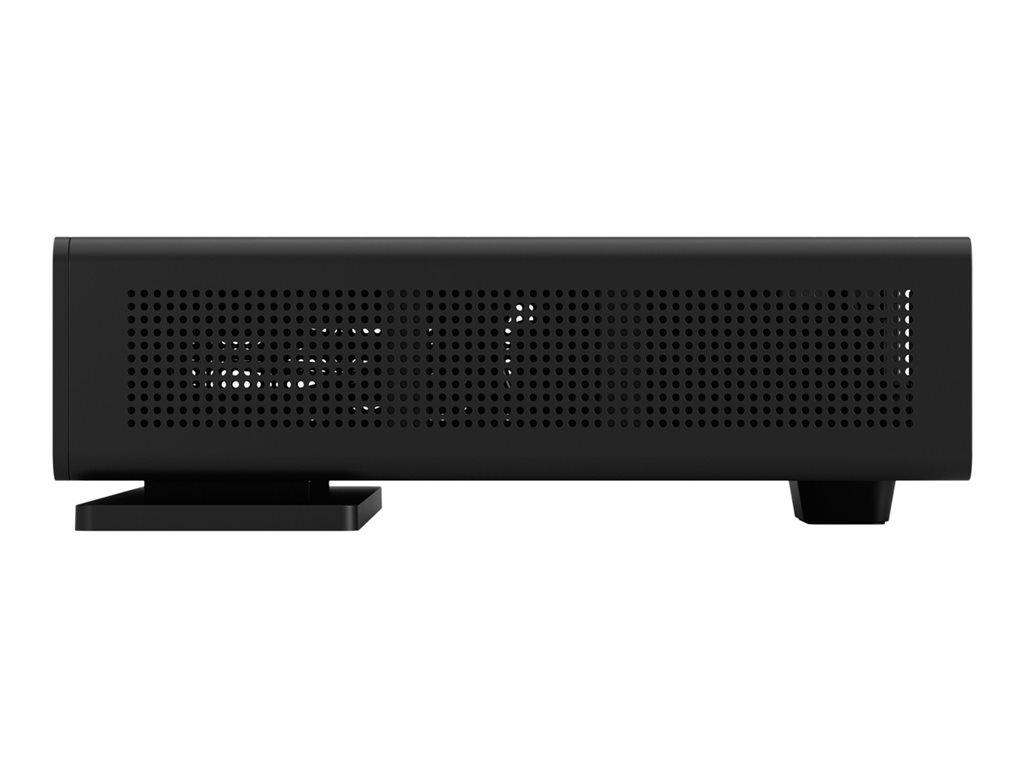

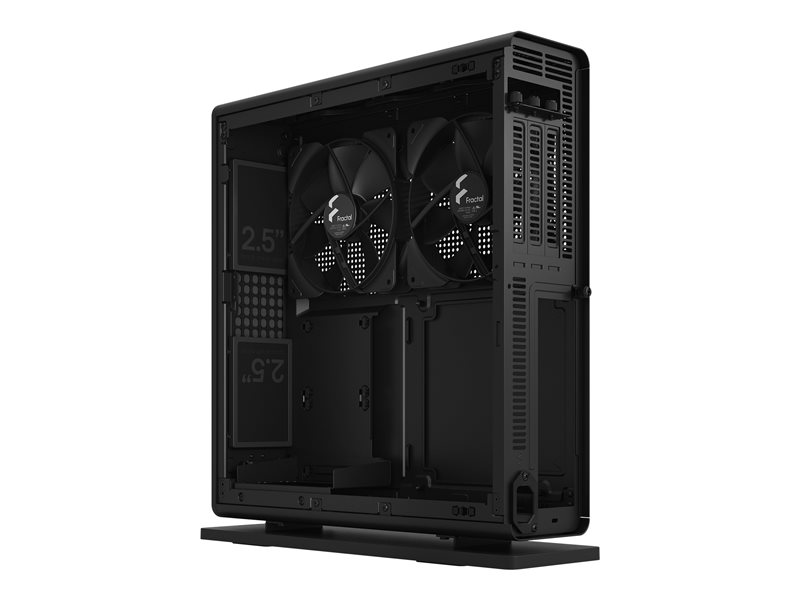

Ventilated on all sides to maximize its cooling potential. Comes with 2x 140 mm PWM Aspect fans pre-installed.

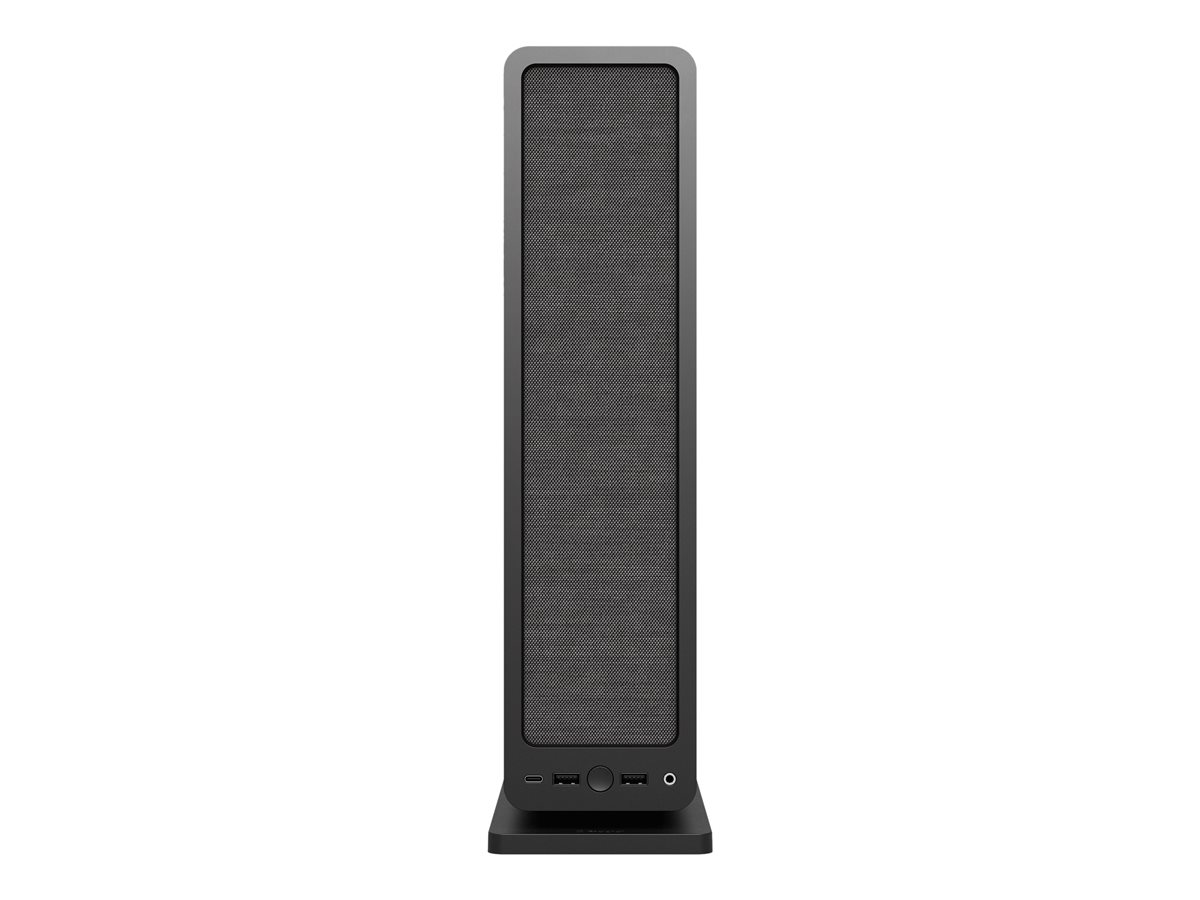

Stylish fabric front with CNC machined aluminum frame. Features a power LED bar in front.
Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack.
| Main Specifications | |
|---|---|
| Product Description | Fractal Design Ridge - SFF - mini ITX |
| Product Type | System cabinet |
| Form Factor | Small form factor |
| Color | Black |
| I/O Connectors | 1 x USB 3.1 Gen 2 ¦ 2 x USB 3.0 ¦ Headphone/microphone |
| Supported Motherboards | Mini-ITX |
| System Cabinet Features | Vertical/horizontal orientation, power button, tool-less side panels, power LED bar, ventilated on all sides, fabric on front panel |
| Power Device | No power supply (SFX12V/SFX-L12V) |
| Dimensions (WxDxH) | 4.3 in x 14.7 in x 15.6 in |
| Weight | 9.48 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Small form factor |
| Max Mainboard Size | Mini ITX |
| Supported Motherboards | Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel, aluminum frame |
| Color | Black |
| Cooling System | Side: 140 mm fan x 2 / 2 x 120 mm supported, Pulse-width modulation (PWM) support ¦ Top: 80 mm fan mount x 3 |
| CPU Cooler Max Height | 70 mm |
| Video Card Max Length | 335 mm |
| System Cabinet Features | Vertical/horizontal orientation, power button, tool-less side panels, power LED bar, ventilated on all sides, fabric on front panel |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x internal - 2.5" |
| Expansion Slots | 3 |
| Interfaces | 1 x USB 3.1 Gen 2 - USB-C ¦ 2 x USB 3.0 ¦ Headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Accessory box, PCIe 4.0 riser card |
| Power | |
| Power Device | No power supply |
| Specification Compliance | SFX12V/SFX-L12V |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 14.7 in |
| Height | 15.6 in |
| Weight | 9.48 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.6 in |
| Shipping Depth | 16.8 in |
| Shipping Height | 17 in |
| Shipping Weight | 12.13 lbs |
