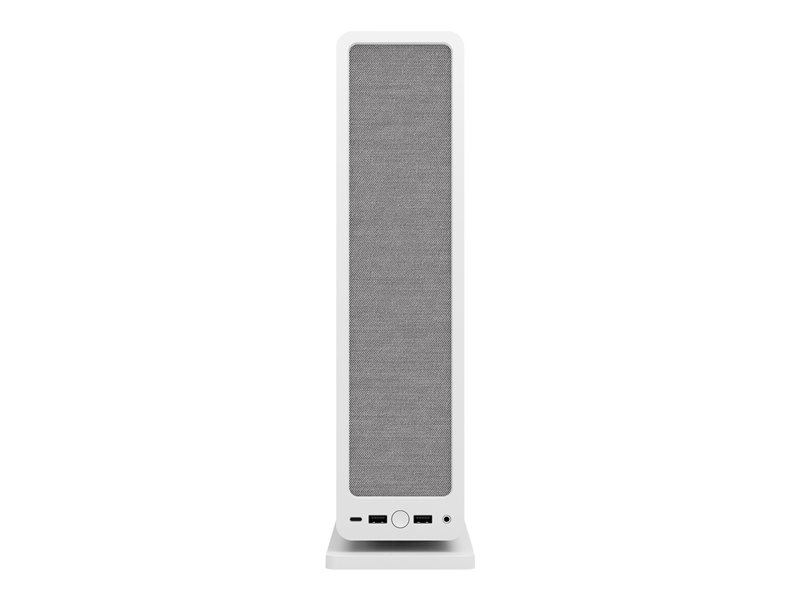

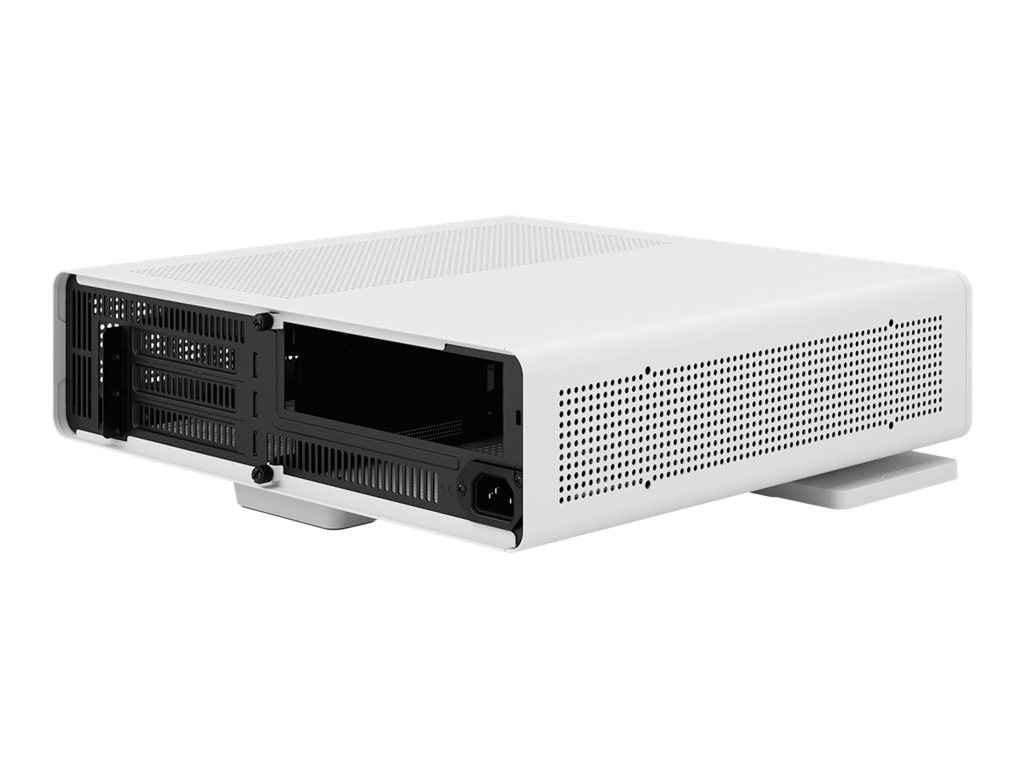

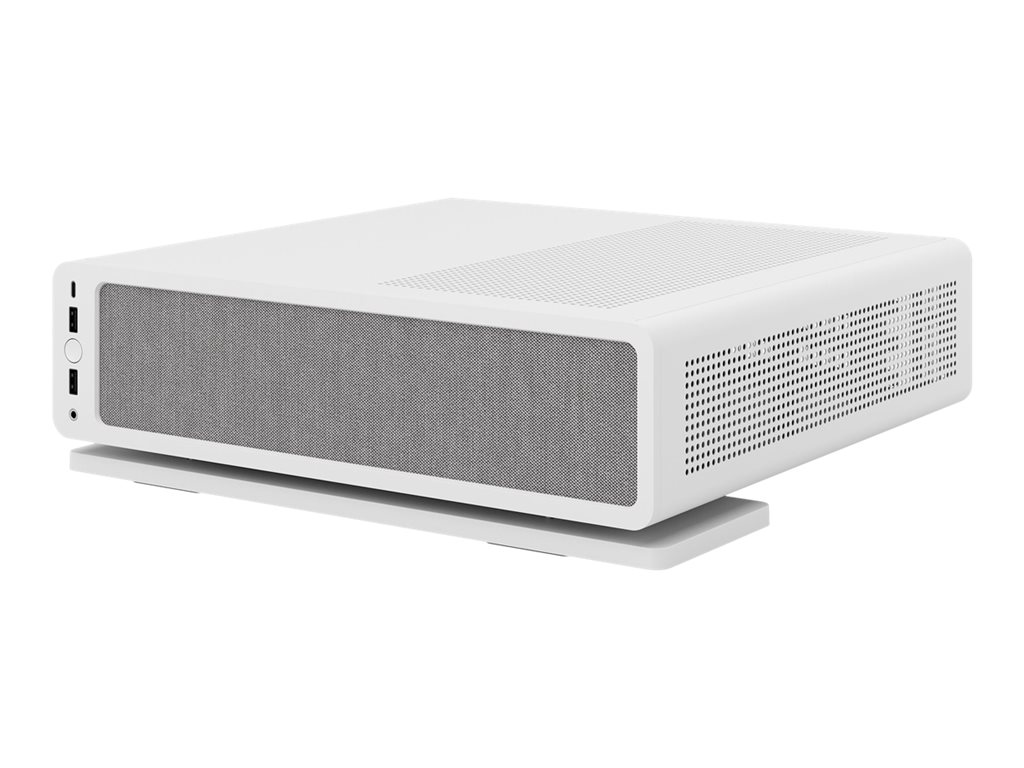

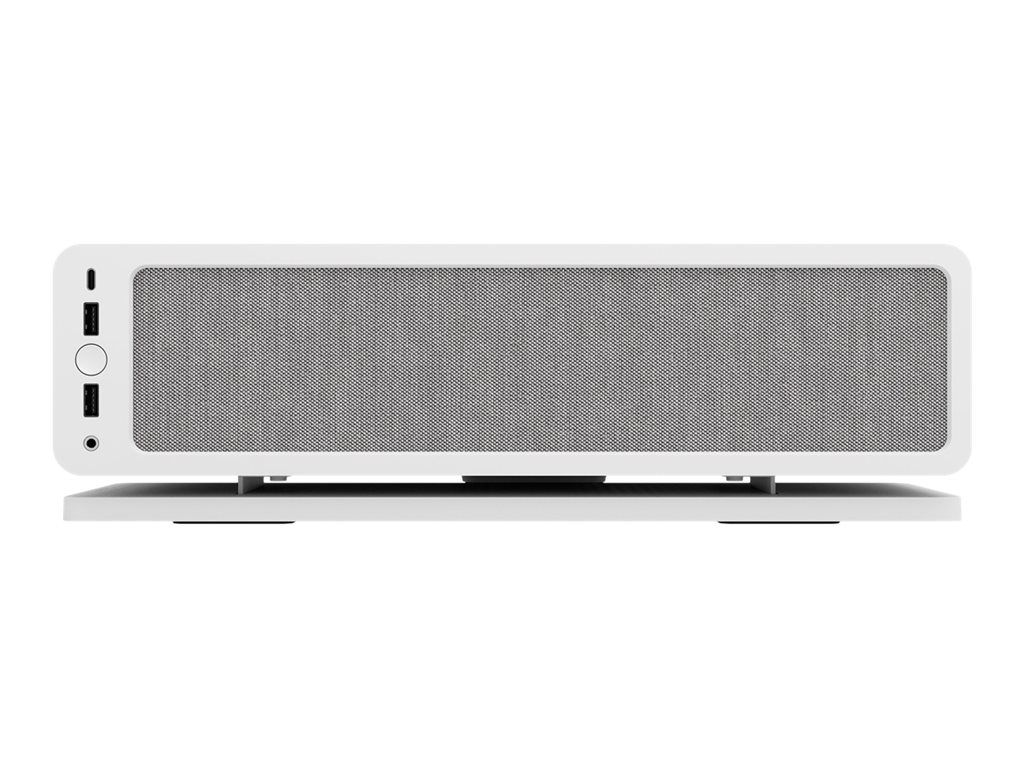

SFF - mini ITX - no power supply (SFX12V/SFX-L12V) - white - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | Fractal Design Ridge - SFF - mini ITX |
| Product Type | System cabinet |
| Form Factor | Small form factor |
| Color | White |
| I/O Connectors | 1 x USB 3.1 Gen 2 ¦ 2 x USB 3.0 ¦ Headphone/microphone |
| Supported Motherboards | Mini-ITX |
| System Cabinet Features | Tool-less side panels, power LED bar, power button, vertical/horizontal orientation, ventilated on all sides, fabric on front panel |
| Power Device | No power supply (SFX12V/SFX-L12V) |
| Dimensions (WxDxH) | 4.3 in x 14.7 in x 15.6 in |
| Weight | 9.48 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Small form factor |
| Max Mainboard Size | Mini ITX |
| Supported Motherboards | Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel, aluminum frame |
| Color | White |

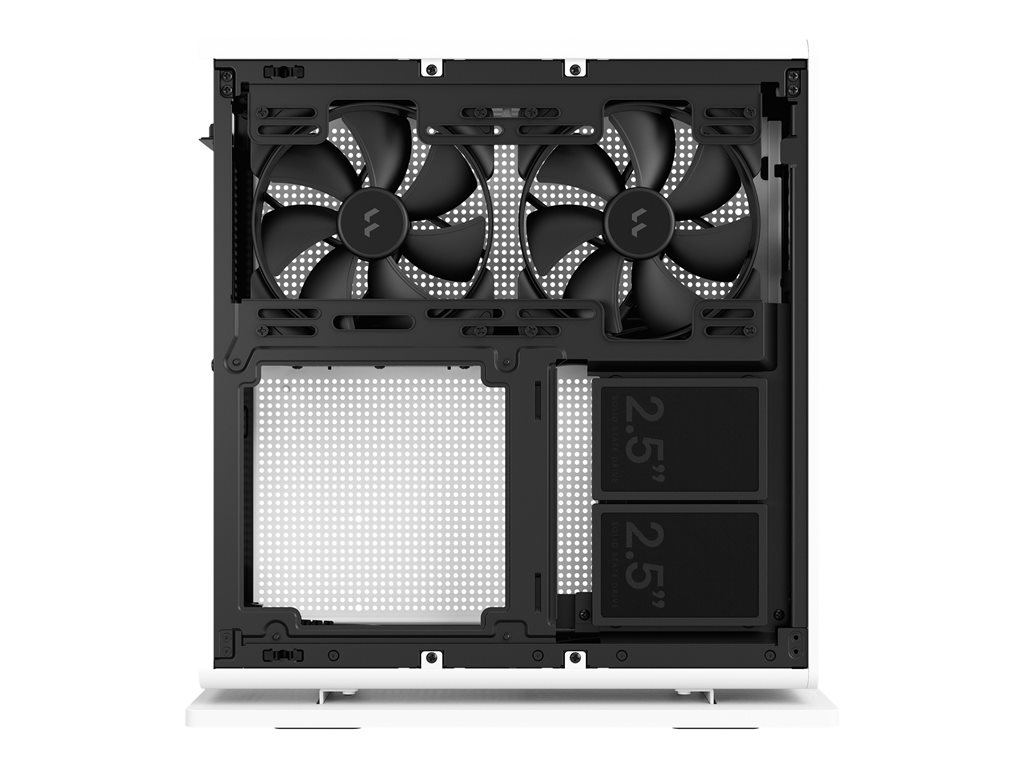

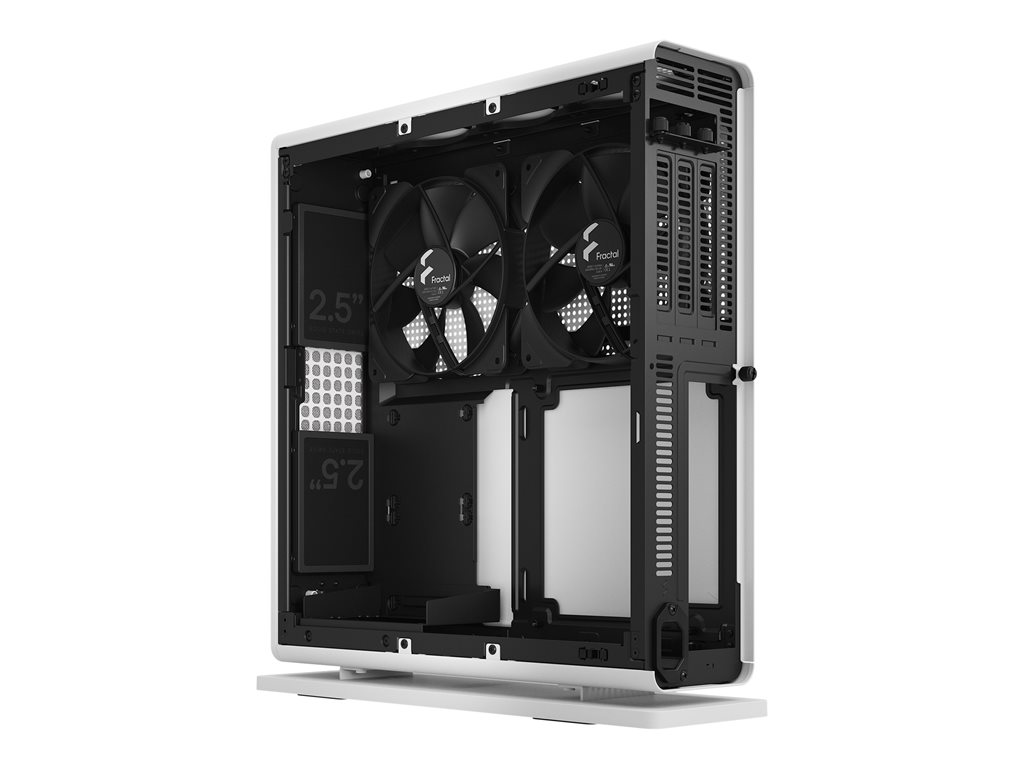

| Cooling System | Side: 140 mm fan x 2 / 2 x 120 mm supported, Pulse-width modulation (PWM) support ¦ Top: 80 mm fan mount x 3 |
| CPU Cooler Max Height | 70 mm |
| Video Card Max Length | 335 mm |
| System Cabinet Features | Tool-less side panels, power LED bar, power button, vertical/horizontal orientation, ventilated on all sides, fabric on front panel |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x internal - 2.5" |

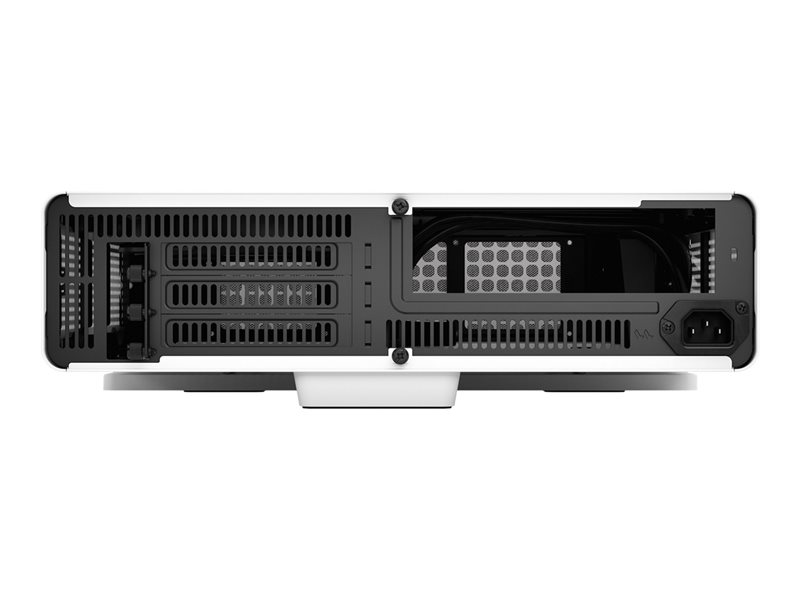

| Expansion Slots | 3 |
| Interfaces | 1 x USB 3.1 Gen 2 - USB-C ¦ 2 x USB 3.0 ¦ Headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Accessory box, PCIe 4.0 riser card |
| Power | |
| Power Device | No power supply |
| Specification Compliance | SFX12V/SFX-L12V |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 14.7 in |
| Height | 15.6 in |
| Weight | 9.48 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.6 in |
| Shipping Depth | 16.8 in |
| Shipping Height | 17 in |
| Shipping Weight | 12.13 lbs |
