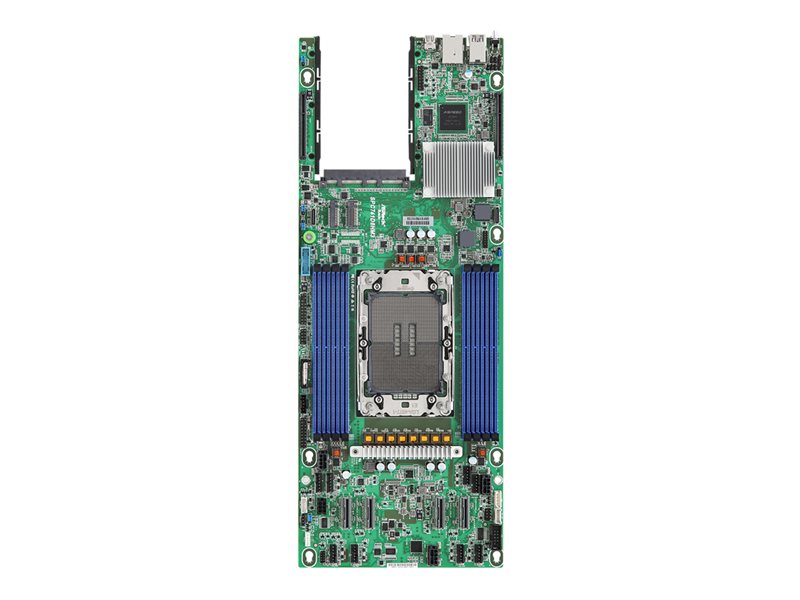

Motherboard - half-width - LGA4677 Socket-E - Intel C741 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required)
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack SPC741D8HM3 - motherboard - half-width - LGA4677 Socket-E - Intel C741 |
| Product Type | Motherboard - half-width |
| Chipset Type | Intel C741 |
| Processor Socket | 1 x LGA4677 Socket-E |
| Compatible Processors | Xeon Scalable (supports 4th and 5th Generation Intel Xeon Scalable) |
| Max RAM Size | 2.048 TB |
| RAM Supported | 8 DIMM slots - DDR5 |
| Storage Ports | 2 x OCuLink port, 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - half-width |
| Chipset Type | Intel C741 |
| Processor Socket | LGA4677 Socket-E |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon Scalable (supports 4th and 5th Generation Intel Xeon Scalable) |
| Expansion / Connectivity | |
| Expansion Slots | 8 x DIMM 288-pin ¦ 1 x CPU ¦ 2 x PCIe 5.0 x16 ¦ 4 x PCIe 5.0 x8 (MCIO) ¦ 1 x PCIe 5.0 x16 (OCP 3.0 module support) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x OCuLink - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet)/management |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x VGA - header ¦ 1 x SGPIO - header |
| Power Connectors | 6-pin auxiliary power connector, 3 x 8-pin ATX12V connectors, 19-pin standby power connector |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screws, 2 x non-fabric CPU carrier |
| Width | 6.6 in |
| Depth | 17 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | IPMI support, UEFI BIOS, ACPI 4.0 support, SPI BIOS flashing, PnP support, SMBIOS 3.4 support |
| Hardware Monitoring | System voltage, fan control, temperature detection |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Realtek RTL8211F |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 2.048 TB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 5600 MHz |
| Features | Registered, 3DS registered |
