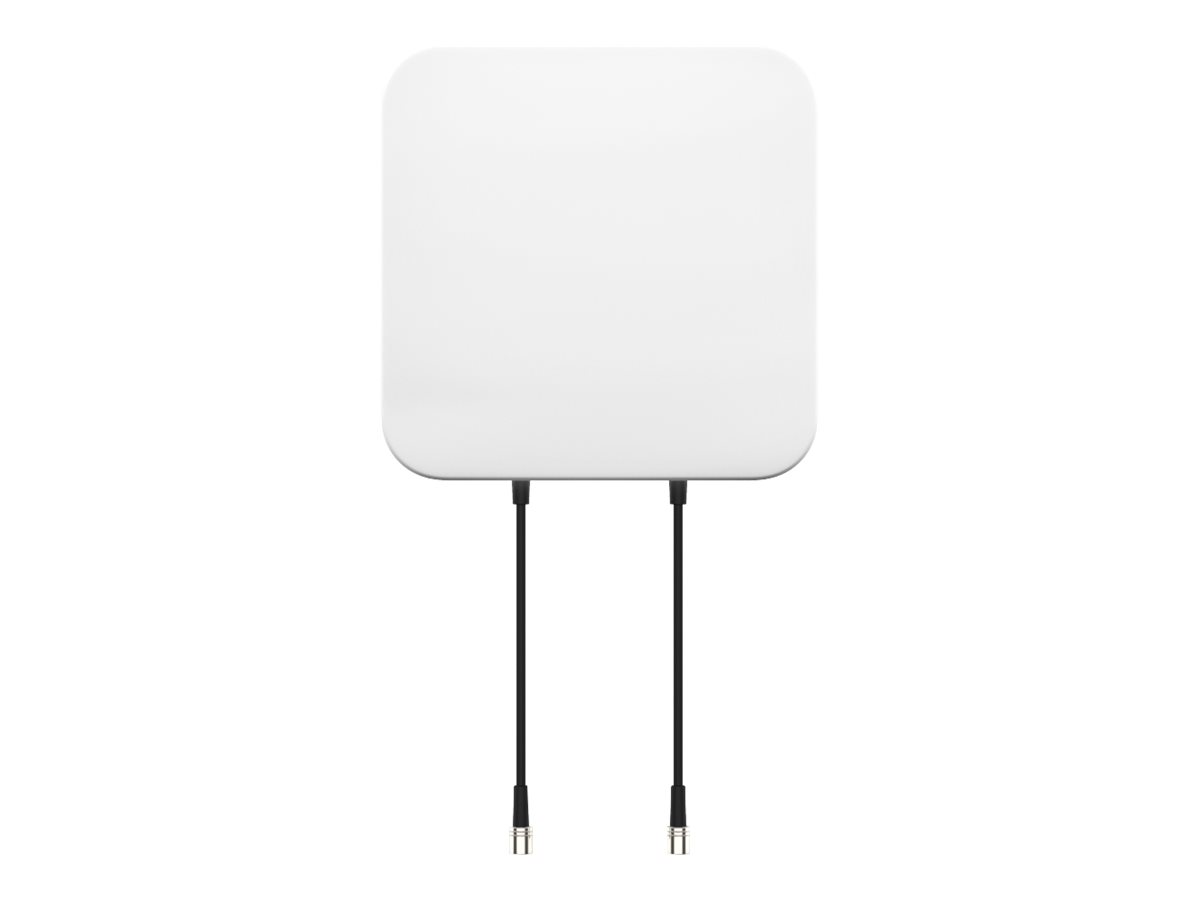

Antenna kit - patch - cellular - 7.7 dBi, 6.3 dBi, 9.7 dBi, 6.6 dBi, 5.7 dBi (for 5 GHz) - directional - wall-mountable, pole mount - with custom mount for MG41E - for P/N: MG51-HW
| Main Specifications | |
|---|---|
| Product Description | Cisco Meraki MA-ANT-DUAL-C1 - antenna kit |
| Product Type | Antenna kit |
| Bundled with | Custom mount for MG41E |
| Dimensions (WxDxH) | 8.7 in x 1.9 in x 8.7 in |
| Weight | 23.98 oz |
| Product Material | UV-resistant polycarbonate |
| Form Factor | Patch |
| Intended For | Cellular |
| Antenna Placing / Mounting | Wall-mountable, pole mount |
| Frequency Range | 1.71 - 2.17 GHz, 617 - 960 MHz, 2.2 - 2.69 GHz, 3.3 - 4.1 GHz, 4.4 - 5.925 Ghz |
| Gain | 7.7 dBi, 6.3 dBi, 9.7 dBi, 6.6 dBi, 5.7 dBi (for 5 GHz) |
| Directivity | Directional |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: MG51-HW |
| General | |
| Product Type | Antenna kit |
| Bundled with | Custom mount for MG41E |
| Product Material | UV-resistant polycarbonate |
| Width | 8.7 in |
| Depth | 1.9 in |
| Height | 8.7 in |
| Weight | 23.98 oz |
| Cable Length | 35.4 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Vertical polarisation, horizontal polarisation, linear polarization |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 95% |
| Cabling & Wiring | |
| Connector Provided | 2 x RP-SMA |
| Antenna | |
| Form Factor | Patch |
| Intended For | Cellular |
| Antenna Placing / Mounting | Wall-mountable, pole mount |
| Frequency Range | 1.71 - 2.17 GHz, 617 - 960 MHz, 2.2 - 2.69 GHz, 3.3 - 4.1 GHz, 4.4 - 5.925 Ghz |
| Gain | 7.7 dBi, 6.3 dBi, 9.7 dBi, 6.6 dBi, 5.7 dBi (for 5 GHz) |
| Directivity | Directional |
| Horizontal Beamwidth | 60° |
| Vertical Beamwidth | 60° |
| Compatibility Information | |
| Designed For | P/N: MG51-HW |
