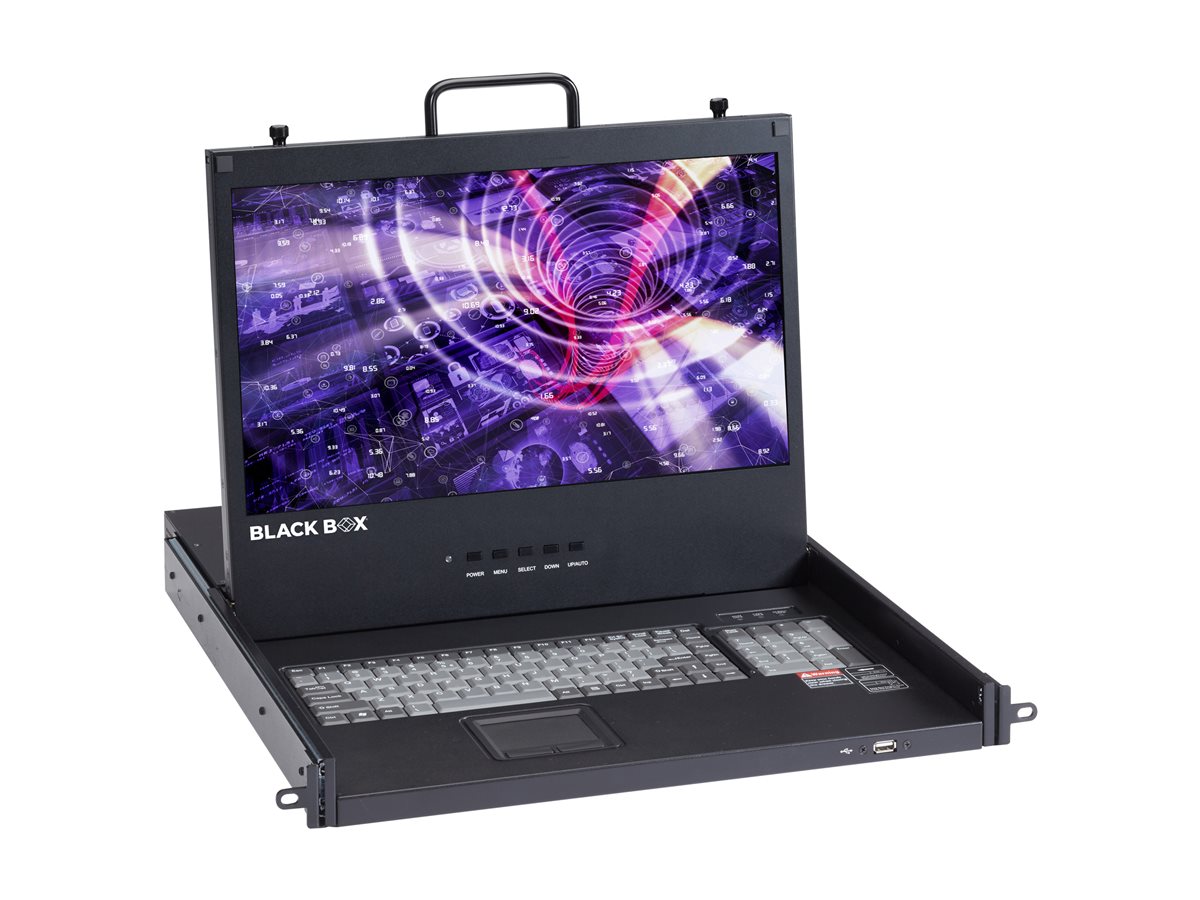

KVM console - USB - US - 17" - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - 300 cd/m² - 650:1 - 2xHDMI, 2xDisplayPort, 2xVGA - 1U
| Main Specifications | |
|---|---|
| Product Description | Black Box ServView HD - KVM console - Full HD (1080p) - 17" |
| Device Type | KVM console - 17" |
| KVM Switch | USB |
| Keyboard Layout | US |
| Features | Keyboard, touchpad, USB hub |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.1989 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 650:1 |
| Color Support | 262,000 colors |
| Input Connectors | 2xHDMI, 2xDisplayPort, 2xVGA |
| Display Position Adjustments | Tilt |
| Voltage | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.1 in x 20.7 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 23.37 lbs |
| Compliant Standards | FCC, BIS, DDC, DDC-2, DDC-2B |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 17" |
| Built-in Devices | USB hub |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.1989 mm |
| Brightness | 300 cd/m² |
| Contrast Ratio | 650:1 |
| Color Support | 262,000 colors |
| Horizontal Viewing Angle | 70 |
| Vertical Viewing Angle | 70 |
| Backlight Technology | LED backlight |
| Dimensions (WxDxH) | 17.1 in x 20.7 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 23.37 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Power cord (US), power cord (India BIS compliant) |
| Cables Included | 1 x USB-A to USB-B cable |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, BIS, DDC, DDC-2, DDC-2B |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Microsoft Windows, Linux, SunOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Connectivity | |
| Interfaces | 2 x USB (Type A) ¦ USB (Type B) ¦ 2 x HDMI ¦ 2 x VGA ¦ 2 x DisplayPort |
| KVM | |
| Keyboard / Mouse Interface | USB |
| Input | |
| Type | Keyboard, touchpad |
| Mechanical | |
| Display Position Adjustments | Tilt |
