SSD - encrypted - 1.92 TB - internal - E3.S - PCI Express 5.0 x4 (NVMe) - 256-bit AES-XTS - TCG Opal Encryption 2.0
| Main Specifications | |
|---|---|

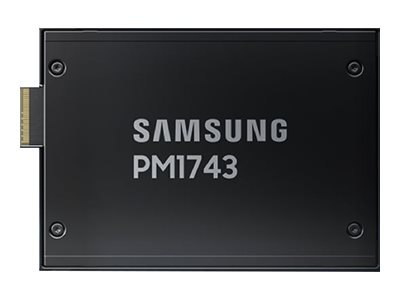

| Product Description | Samsung PM1743 MZ3LO1T9HCJR - SSD - 1.92 TB - PCI Express 5.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 1.92 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES-XTS |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Form Factor | E3.S |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | Power loss data protection, ECC Recovery LDPC, End-to-end data protection, Halogen Free, Dynamic Wear Leveling, S.M.A.R.T. |
| Dimensions (WxDxH) | 3 in x 4.4 in x 0.3 in |
| Weight | 4.06 oz |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 1.92 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES-XTS |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Form Factor | E3.S |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | Power loss data protection, ECC Recovery LDPC, End-to-end data protection, Halogen Free, Dynamic Wear Leveling, S.M.A.R.T. |
| Width | 3 in |
| Depth | 4.4 in |
| Height | 0.3 in |
| Weight | 4.06 oz |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption | 20.1 Watt (read) ¦ 15.4 Watt (write) ¦ 5 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% |
| Shock Tolerance (non-operating) | 1500 g |
| Vibration Tolerance (non-operating) | 20 g @ 20-2000 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 3504 TB |
| Internal Data Rate | 14000 MBps (read) / 3000 MBps (write) |
| Maximum 4KB Random Write | 150000 IOPS |
| Maximum 4KB Random Read | 2000000 IOPS |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | PCI Express 5.0 x4 (NVMe) |
| Compatible Bay | E3.S |
