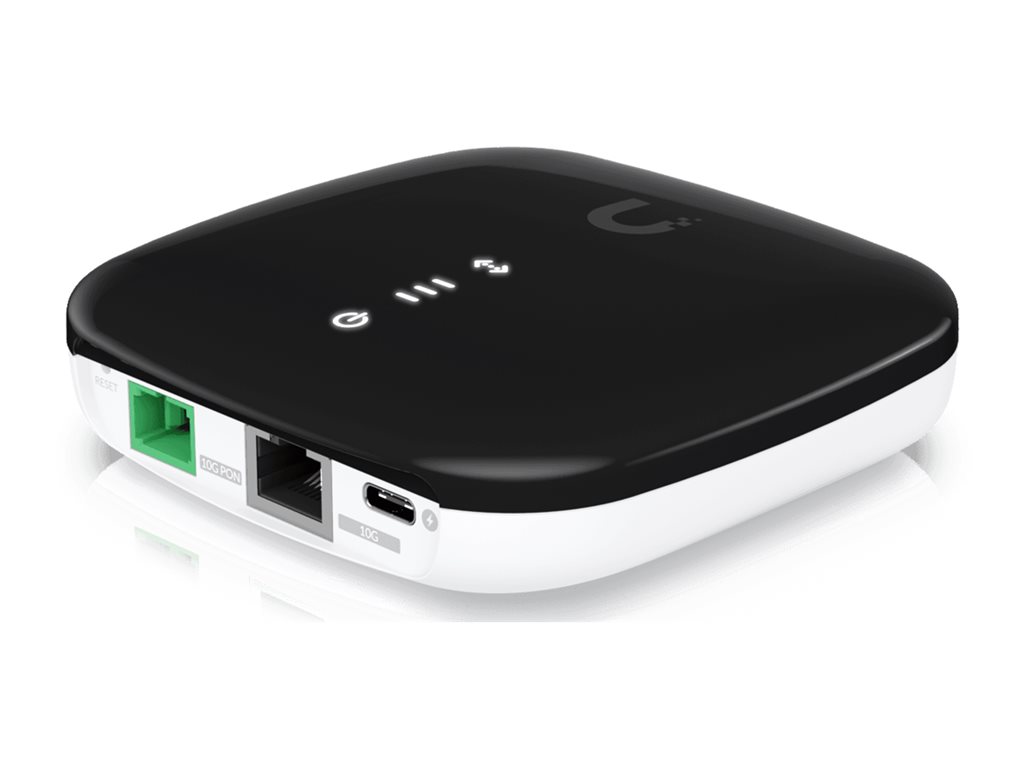

Optical network unit - XGS-PON - 10 Gbps - 1GbE, 10GbE, 5GbE, 2.5GbE
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UISP Fiber XGS - optical network unit |
| Device Type | Optical network unit - XGS-PON |
| Form Factor | External |
| Max Transfer Rate | 10 Gbps |
| Protocols & Specifications | ITU-T G.9807 |
| Line Coding Format | NRZ |
| Networking | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Dimensions (WxDxH) | 3.9 in x 3.9 in x 1.1 in |
| Weight | 7.76 oz |
| General | |
| Device Type | Optical network unit |
| Form Factor | External |
| Built-in Devices | 32MB flash |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T - RJ-45 ¦ 1 x XGS-PON - SC/APC |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Compliant Standards | IC, FCC |
| Networking | |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Passive PoE supported, LED status indicators, 20 km transmission distance |
| Environmental Parameters | |
| Min Operating Temperature | 5 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Modem | |
| Bus | XGS-PON |
| Connectivity Technology | Wired |
| Memory | 256 MB |
| Max Transfer Rate | 10 Gbps |
| Protocols & Specifications | ITU-T G.9807 |
| Line Coding Format | NRZ |
| Features | Wall mountable |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 1.1 in |
| Weight | 7.76 oz |
