Conference camera - PTZ - indoor - color - 8.42 MP - 3840 x 2160 - motorized - audio - HDMI, 3G-SDI - GbE - DC 12 V / PoE Plus
| Main Specifications | |
|---|---|

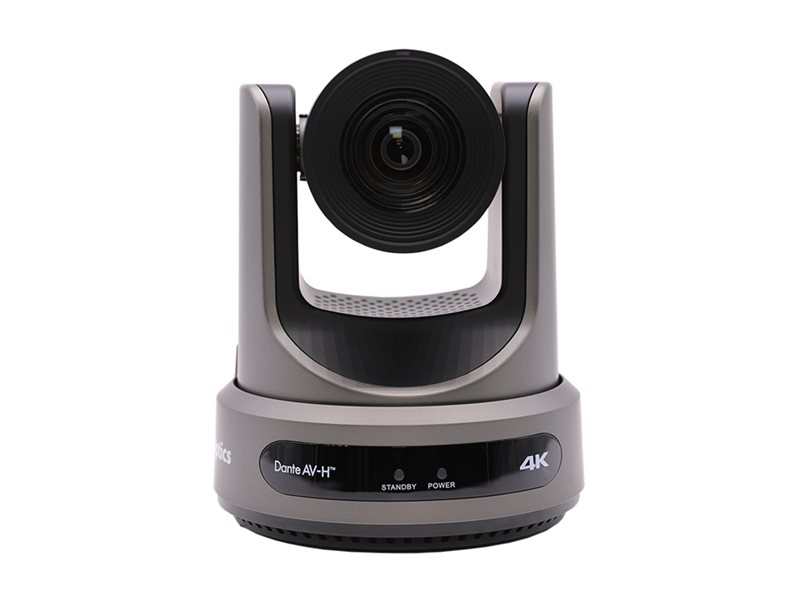

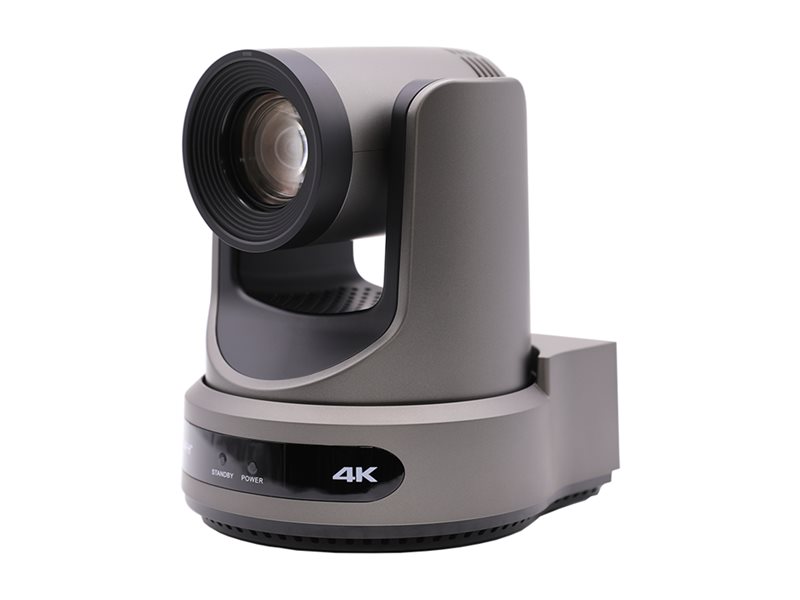

| Product Description | PTZOptics Link PT20X-LINK-4K - conference camera |
| Device Type | Conference camera - pan / tilt / zoom - indoor |
| Audio | Yes |
| Camera Mount Type | Ceiling mount, pole mount, wall mount |
| Dimensions (WxDxH) | 5.6 in x 5.9 in x 6.9 in |
| Weight | 3.24 lbs |
| Color | Gray |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 2160/25p, 2160/29.97p, 2160/30p, 2160/50p, 2160/59.94p, 2160/60p, 720/59.94p, 720/60p |
| Optical Sensor Type | CMOS - 1/1.8" - 8.42 MP |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Focal Length Control | Motorized zoom |
| Focal Length | 6.25 mm - 125 mm |
| Lens Iris | F/1.58-3.95 |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Control Interface | RS-485, RS-232 (VISCA) |
| Cables Included | 1 - USB-A cable - external ¦ 1 - RS-232C cable - external |
| Voltage | DC 12 V / PoE Plus |
| Features | 255 preset positions, image flip, image mirror, image freeze, aluminum housing, plastic housing, 3D Noise Reduction Technology, Wide Dynamic Range (WDR), auto tracking, Dante AV-H, tally light, PELCO D protocol support, PELCO P protocol support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 14 °F - 104 °F |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Camera Mount Type | Ceiling mount, pole mount, wall mount |
| Connectivity Technology | Wired |
| Width | 5.6 in |
| Depth | 5.9 in |
| Height | 6.9 in |
| Weight | 3.24 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ HDMI ¦ 3G-SDI - BNC ¦ USB 2.0 - 4 pin USB Type A ¦ Serial RS-485 - 2 pin Phoenix ¦ Serial RS-232 input - 8 pin mini-DIN ¦ Serial RS-232 output - 8 pin mini-DIN ¦ Audio line in - 3.5 mm jack ¦ Audio line out - 3.5 mm jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control, 2 AA batteries |
| Cables Included | 1 x USB-A cable - external ¦ 1 x RS-232C cable - external |
| Compliant Standards | IEEE 802.3at |
| Color | Gray |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Camera | |
| Type | Color - pan / tilt / zoom - indoor |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 2160/25p, 2160/29.97p, 2160/30p, 2160/50p, 2160/59.94p, 2160/60p, 720/59.94p, 720/60p |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Minimum Illumination | 0.5 lux F1.8 - AGC on |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Frame Rate (max) | 60 frames per second |
| Features | 255 preset positions, image flip, image mirror, image freeze, aluminum housing, plastic housing, 3D Noise Reduction Technology, Wide Dynamic Range (WDR), auto tracking, Dante AV-H, tally light, PELCO D protocol support, PELCO P protocol support |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 6.25 mm - 125 mm |
| Lens Iris | F/1.58-3.95 |
| Horizontal Field of View (degree) | 3.5 - 60.7 |
| Vertical Field of View (degree) | 1.9 - 34.1 |
| Image Sensor | |
| Type | 8.42 MP CMOS 1/1.8" |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | SRT, RTSP, RTMPS, RTMP |
| Control Interface | RS-485, RS-232 (VISCA) |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 100 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 69.9 |
