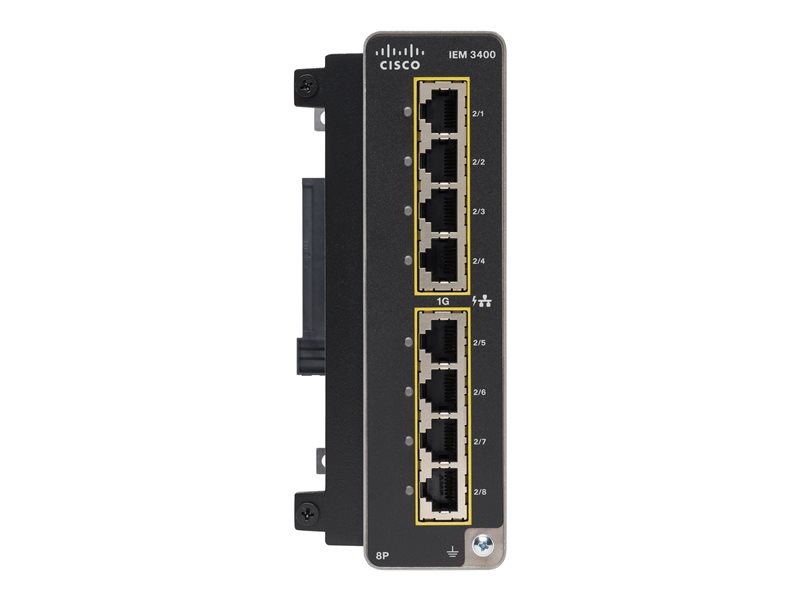

Expansion module - Gigabit Ethernet (PoE+) x 8 - remanufactured
| Main Specifications | |
|---|---|
| Product Description | Cisco Catalyst - expansion module - Gigabit Ethernet (PoE+) x 8 |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Ports | Gigabit Ethernet (PoE+) x 8 |
| Dimensions (WxDxH) | 2.6 in x 5.3 in x 6 in |
| Weight | 31.74 oz |
| Cabling Type | Ethernet 10/100/1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Pricing Type | Remanufactured |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000Base-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 5 years |
| Miscellaneous | |
| MTBF | 1,802,010 hours |
| Compliant Standards | CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 61000-4-17, CAN/CSA C22.2 No. 213, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15, CSA 62368-1, CB 62368-1 |
| Pricing Type | Remanufactured |
| Networking | |
| Ports | Gigabit Ethernet (PoE+) x 8 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10/100/1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Zero Configuration Technology, fanless, FNF, REP, Redundant Ring Technology, DLR, secure boot, SGT caching, SGACL, MRP, TSN |
| Power | |
| Power Consumption Operational | 20 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 31.74 oz |
