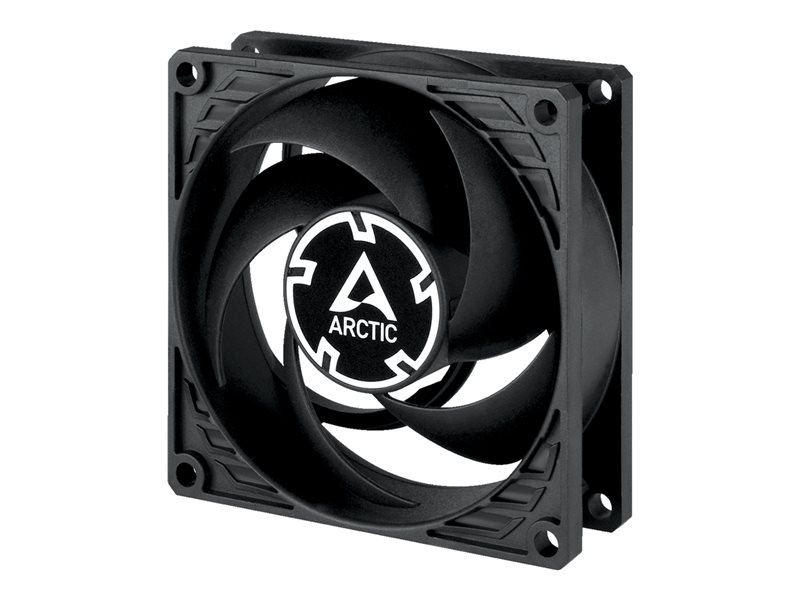

Case fan - PWM high-speed - 80 mm - black
| Main Specifications | |
|---|---|
| Product Description | ARCTIC P8 Max - case fan - PWM high-speed |
| Product Type | Case fan - PWM high-speed |
| Package Content | 4 mounting screws |
| Color | Black |
| Fan Diameter | 80 mm |
| Fan Height | 0.98 in |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 500-5000 rpm |
| Air Flow | 40 cfm |
| Noise Level | 0.6 Sone |
| Power Connector | 4-pin PWM |
| Rated Voltage | 12 V |
| Features | PWM control, 0dB Technology |
| Dimensions (WxDxH) | 3.1 in x 3.1 in x 1 in |
| Weight | 2.96 oz |
| Features | Box package |
| Manufacturer Warranty | 6-year warranty |
| General | |
| Product Type | Case fan - PWM high-speed |
| Package Content | 4 mounting screws |
| Width | 3.1 in |
| Depth | 3.1 in |
| Height | 1 in |
| Weight | 2.96 oz |
| Shipping Dimensions (WxDxH) / Weight | 3.2 in x 3.2 in x 1 in / 3.14 oz |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 6 years |
| Miscellaneous | |
| Features | Box package |
| Compliant Standards | RoHS 2011/65/EC, RoHS 2015/863/EU, Directive 1907/2006/EC, EN 55032:2015/AC:2016, BS EN 55035:2017, BS EN 61000-3-2:2014, BS EN 61000-3-3:2013, 2005/69/EC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Heatsink & Fan | |
| Fan Diameter | 80 mm |
| Fan Height | 0.98 in |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 500-5000 rpm |
| Air Flow | 40 cfm |
| Air Pressure | 5.3 mm |
| Noise Level | 0.6 Sone |
| Power Connector | 4-pin PWM |
| Rated Voltage | 12 V |
| Start Voltage | 3.2 V |
| Rated Current | 0.19 A |
| Cable Length | 15.7 in |
| Features | PWM control, 0dB Technology |
