Power supply (internal) - ATX12V 3.0/ EPS12V 2.92 - 80 PLUS Platinum - AC 100-240 V - 1500 Watt
| Main Specifications | |
|---|---|

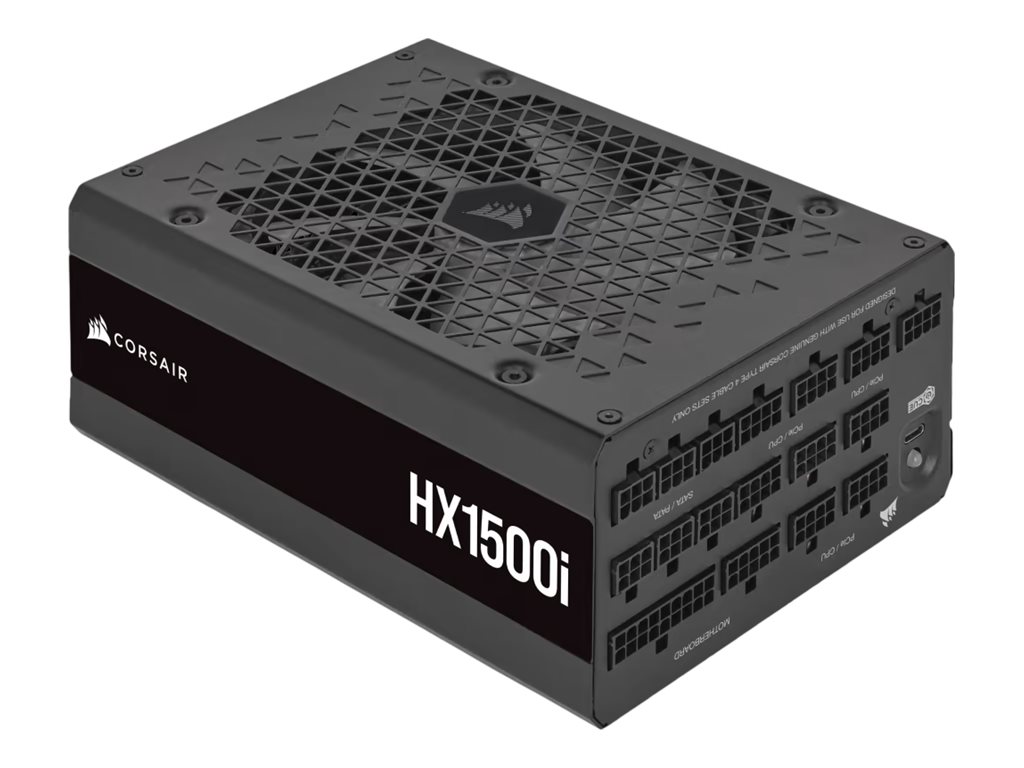

| Product Description | CORSAIR HXi Series HX1500i - power supply - 1500 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| 80 PLUS Certification | 80 PLUS Platinum |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 1500 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 125 A ¦ +5VSB - 3.5 A |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 8 x 4 pin internal power |
| Modular Cable Management | Yes |
| Cooling System | 140 mm fan |
| Included Accessories | Cable ties, mounting screw |
| Dimensions (WxDxH) | 5.9 in x 7.9 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | Cable ties, mounting screw |
| Cables Included | ATX power cable ¦ Power 24 pin ATX modular cable 2 ft ¦ 16-pin 12VHPWR power cable 2 ft ¦ 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 2 ft ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2.5 ft ¦ 2 x power 15 pin SATA cable 2.6 ft ¦ 2 x 4 pin internal power cable 2.5 ft ¦ USB-C to 10-1 pin cable 1.7 ft |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | Corsair iCUE, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 8 x 4 pin internal power |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 1500 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 125 A ¦ +5VSB - 3.5 A |
| Efficiency | 92% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 7.9 in |
| Height | 3.4 in |
