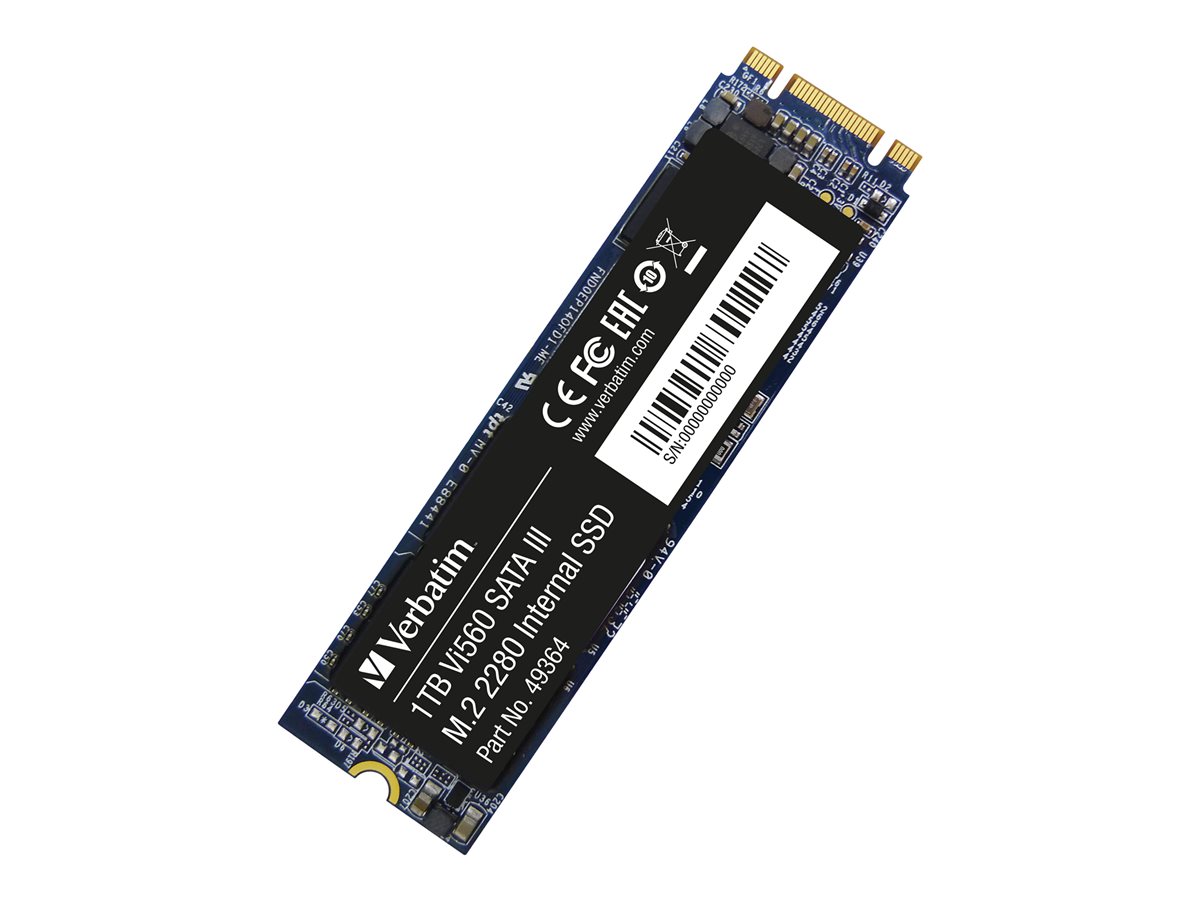

SSD - 1 TB - internal - M.2 2280 - SATA 6Gb/s
| Main Specifications | |
|---|---|
| Product Description | Verbatim Vi560 S3 - SSD - 1 TB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | 3D NAND Technology |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.32 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Features | 3D NAND Technology |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.32 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Power | |
| Power Consumption | 1800 mW (read) ¦ 1600 mW (write) ¦ 620 mW (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine pulse |
| Vibration Tolerance (operating) | 3.08 g @ 7-800 Hz |
| Performance | |
| SSD Endurance | 450 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 520 MBps (write) |
| Maximum 4KB Random Write | 102000 IOPS |
| Maximum 4KB Random Read | 102000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - M.2 B+M Key |
| Compatible Bay | M.2 2280 |
