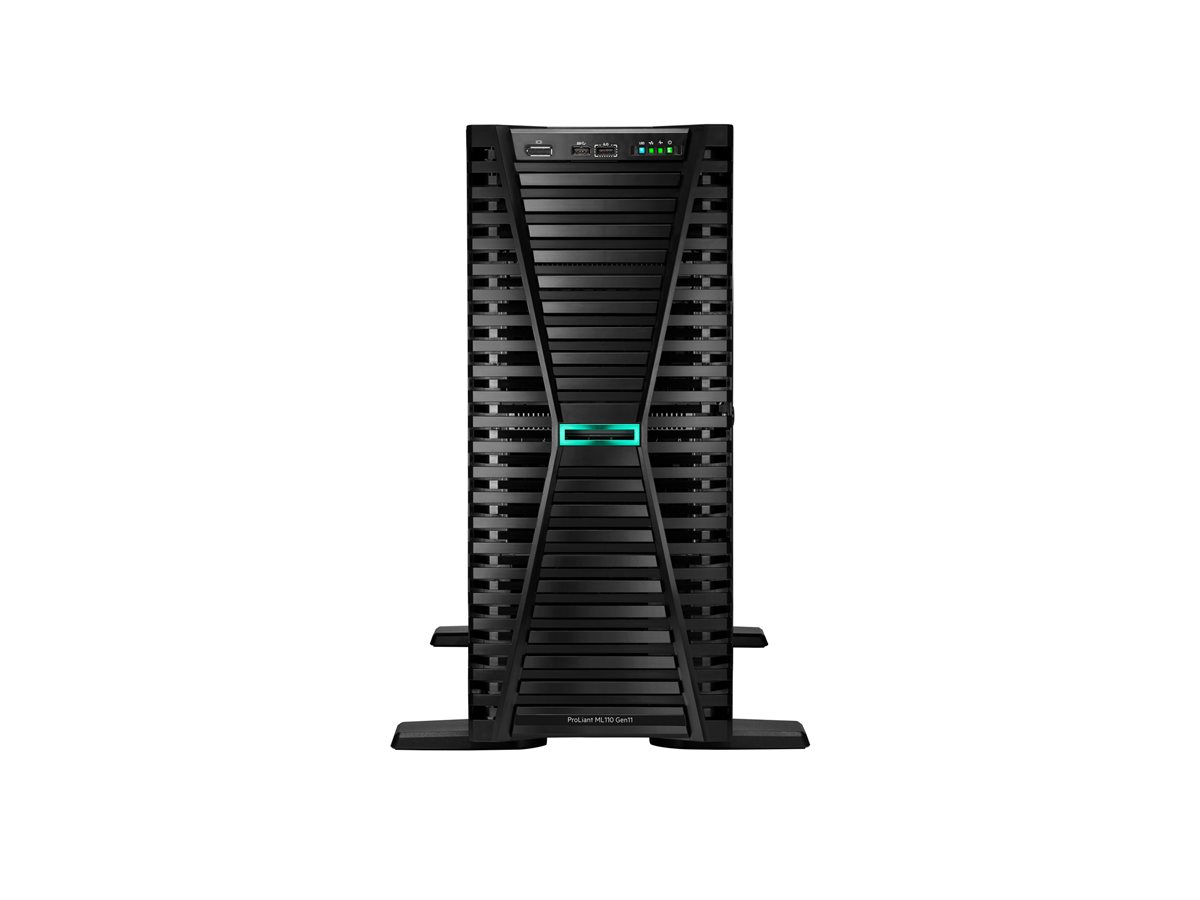

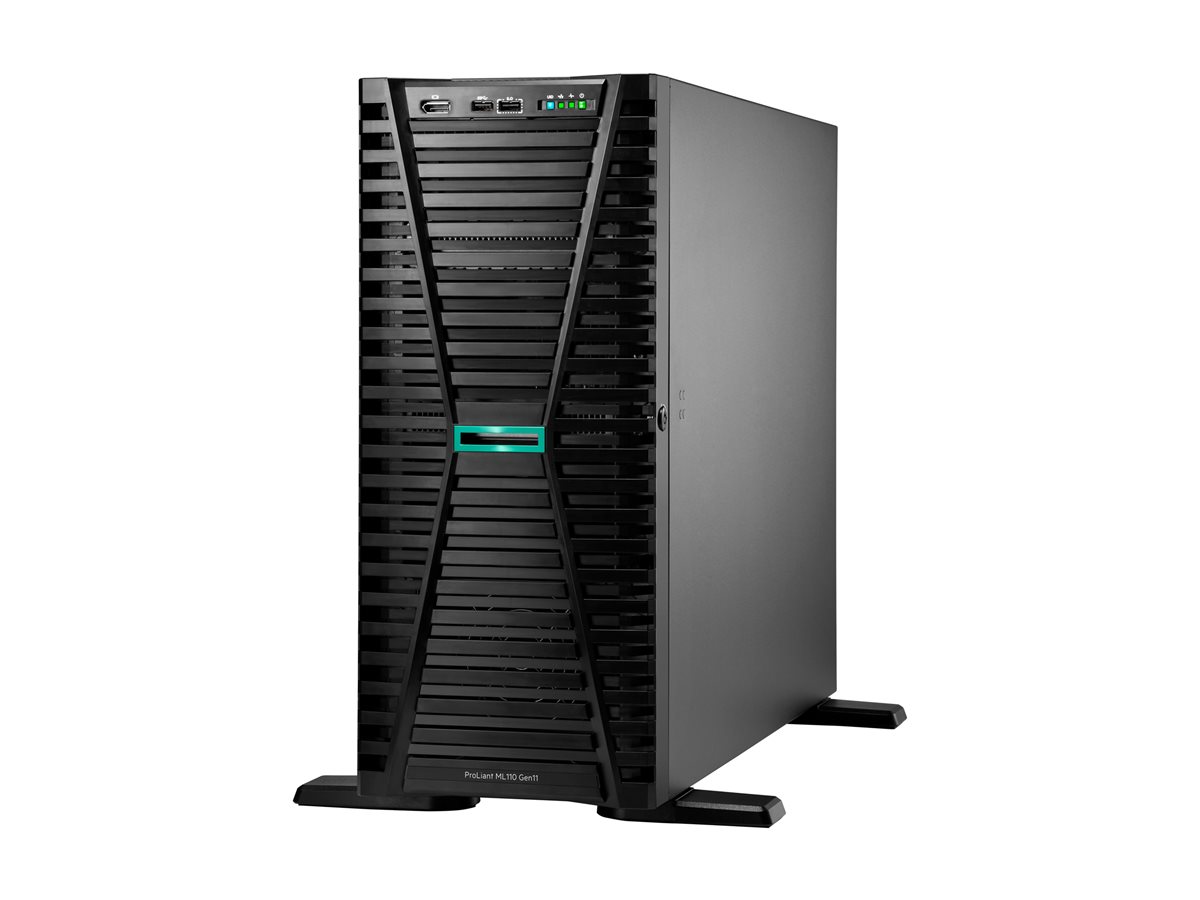

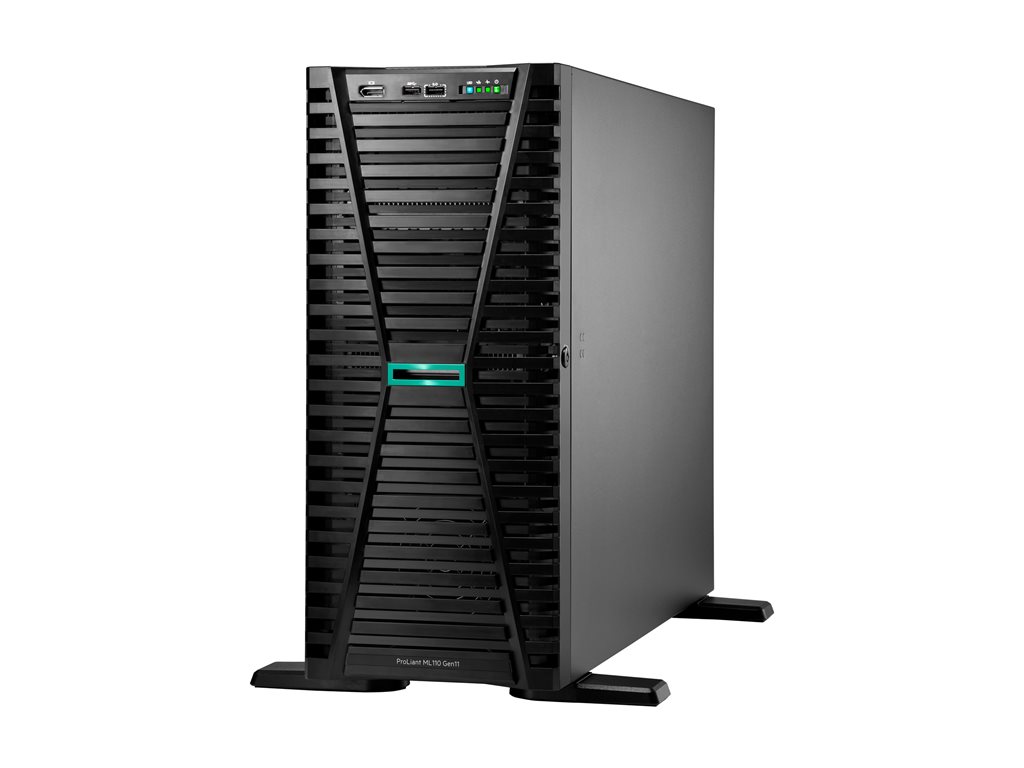

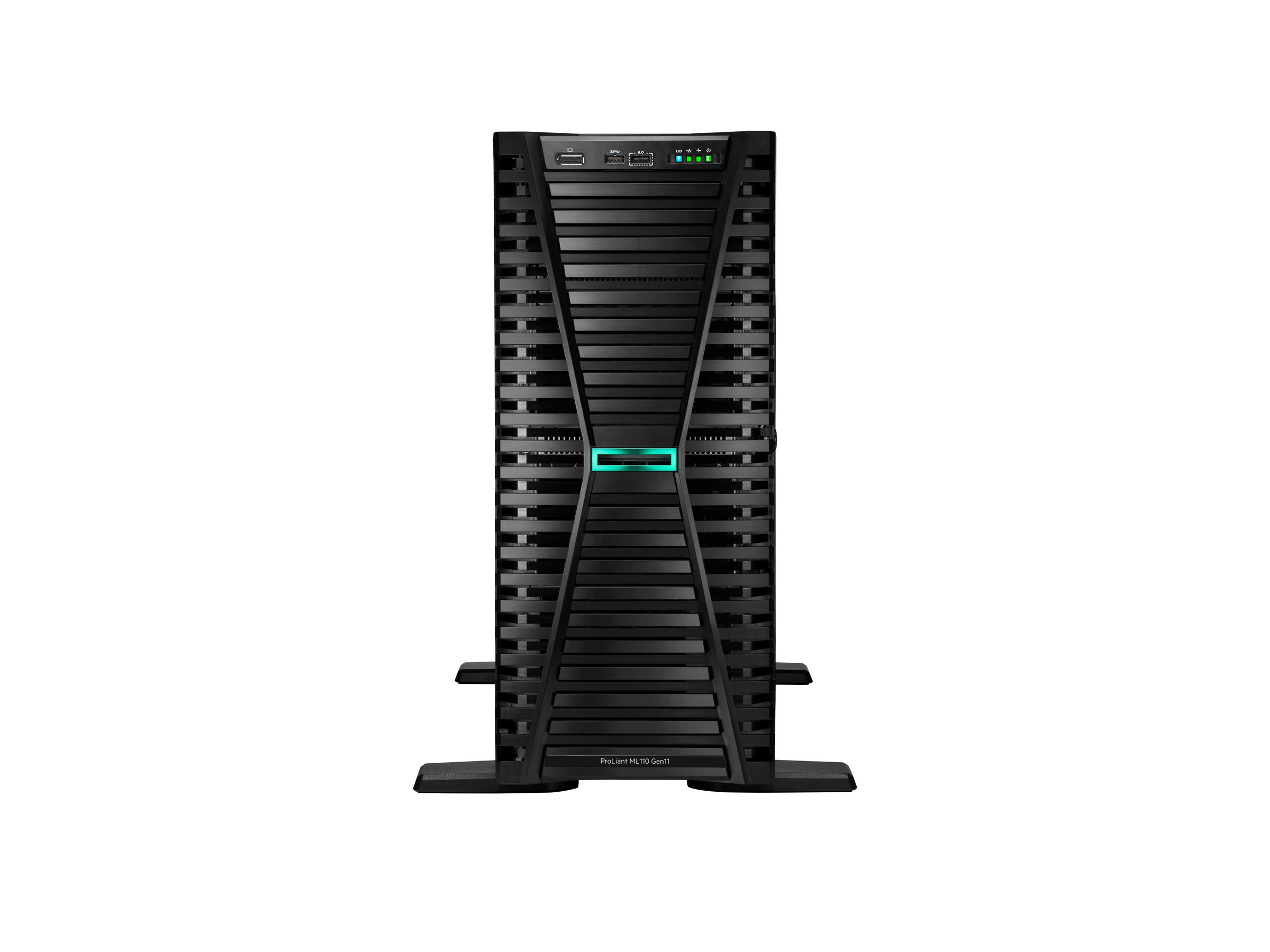

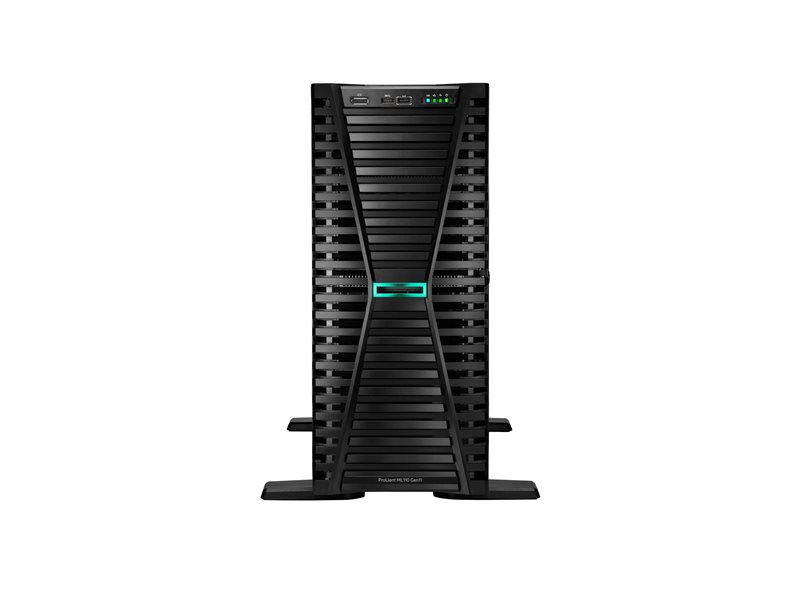

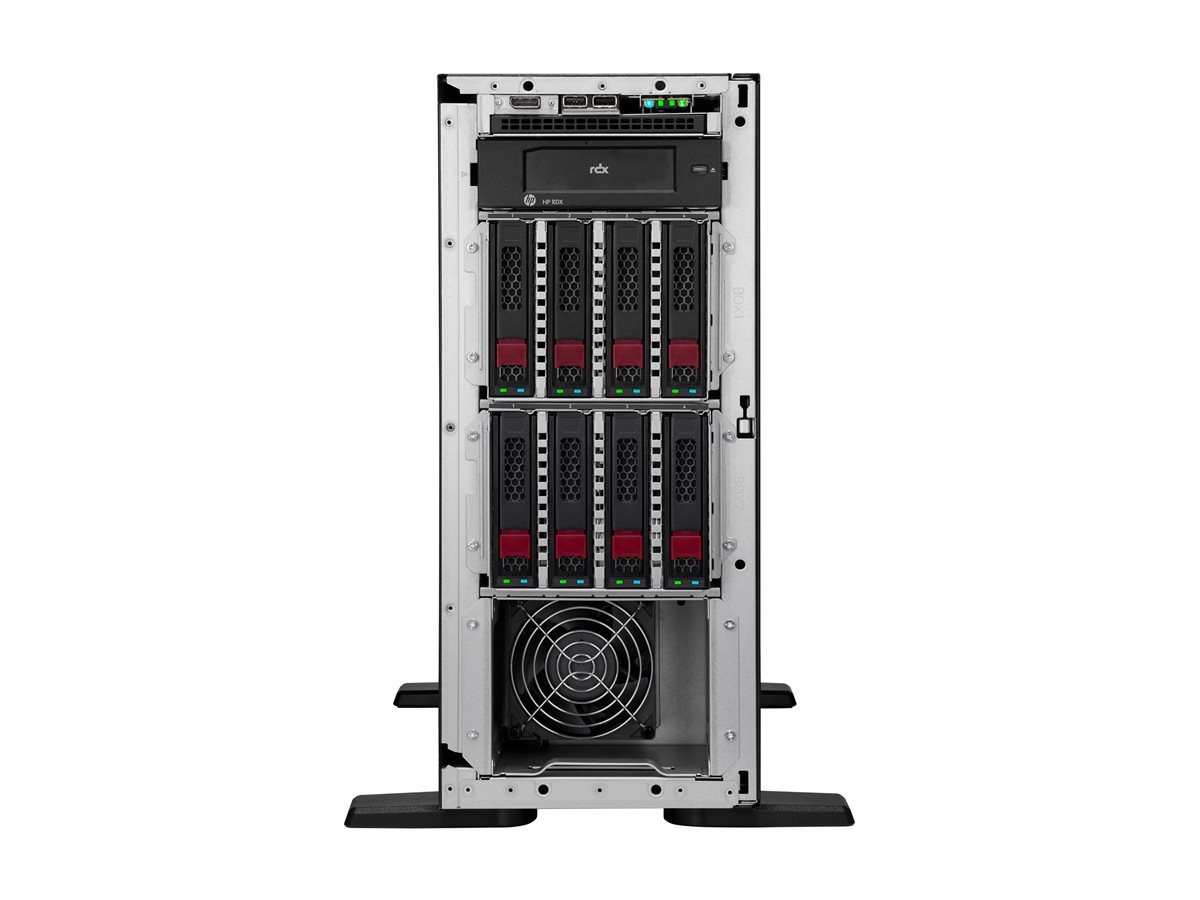

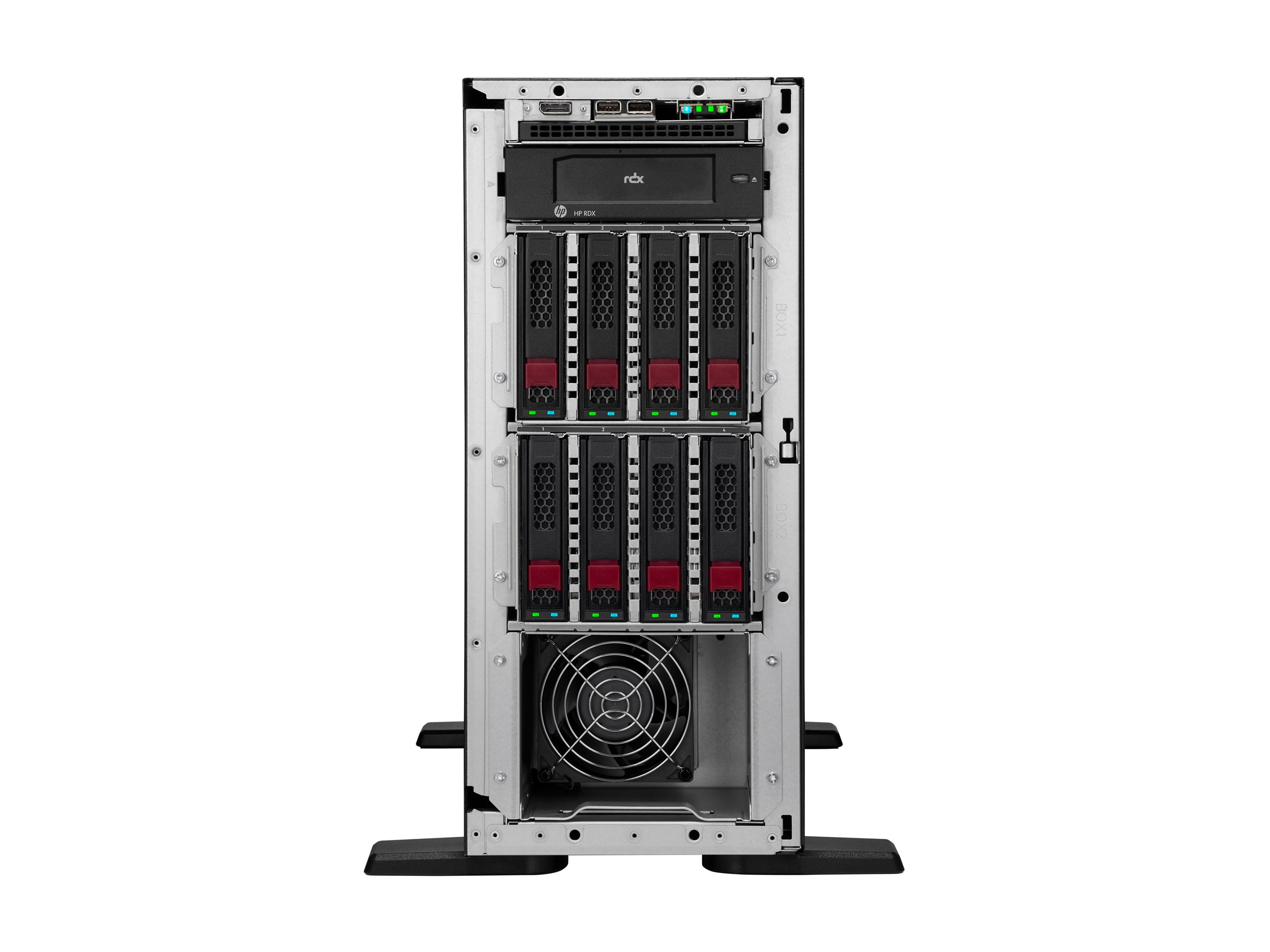

Server - tower 4.5U - 1-way - 1 x Xeon Silver 4410Y / up to 3.9 GHz - RAM 32 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet - monitor: none - CTO
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML110 Gen11 - tower Xeon Silver 4410Y 2 GHz - 32 GB - SSD 2 x 480 GB |
| Type | Server - tower |
| Height (Rack Units) | 4.5U |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon Silver 4410Y / 2 GHz (up to 3.9 GHz, (12-core) |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 1 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID); NVMe (NVM Express) - PCIe 3.0 x8 (HPE NS204i-p) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 480 GB - PCI Express 3.0 x8 (NVMe) - M.2 |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Optional |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 7.7 in x 23.1 in x 18.2 in |
| Pricing Type | CTO |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4.5U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |

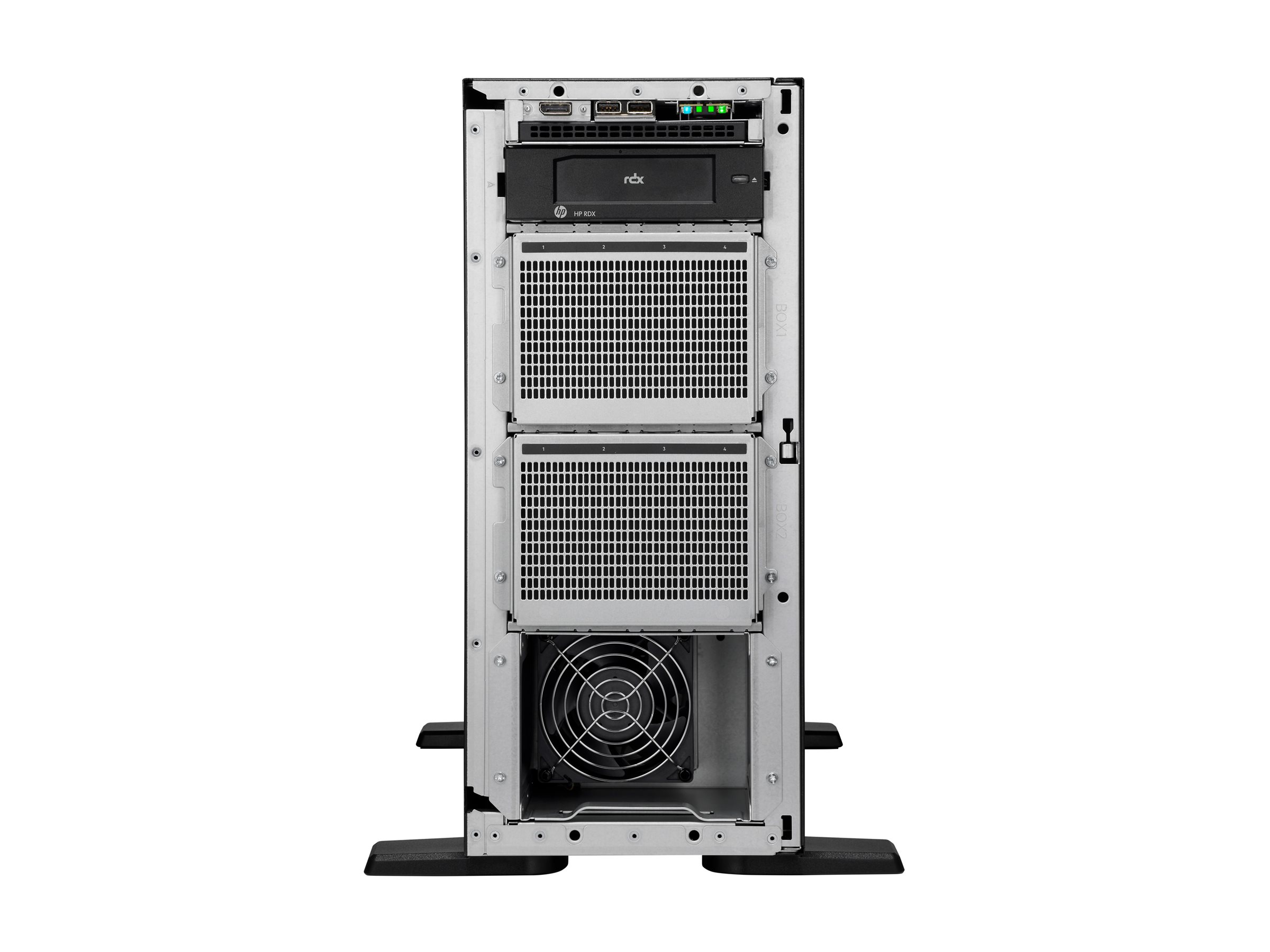

| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |

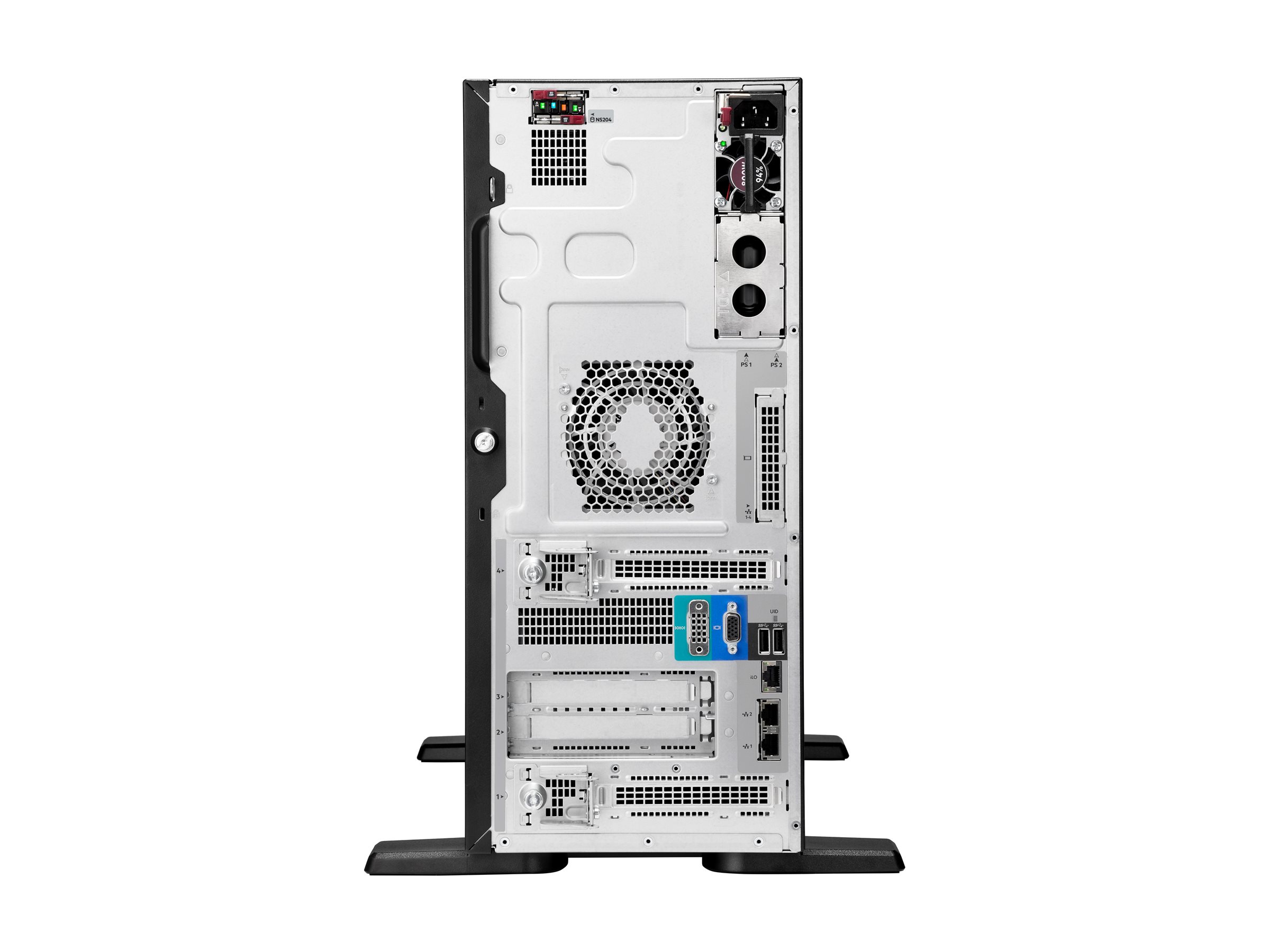

| Interfaces | 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x HPE iLO - Type A (1 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 2 non-hot plug standard fans |
| Compliant Standards | AES, FIPS 140-3, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.4, SMBIOS 3.4 |
| Pricing Type | CTO |
| RAM | |
| Installed Size | 32 GB (installed) / 1 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 4400 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |

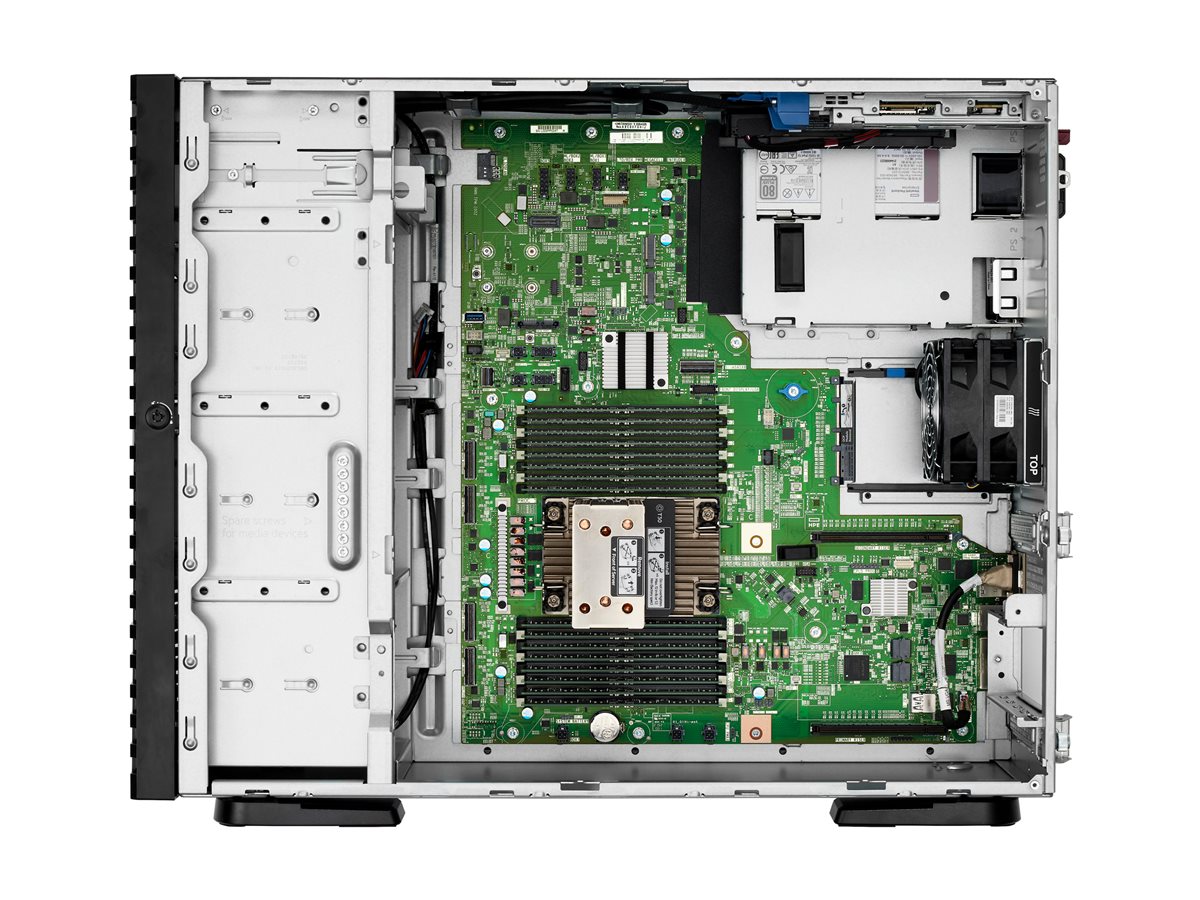

| Slots | 16 (total) / 15 (empty) |
| Features | Registered, HPE SmartMemory |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Remote Management Controller | Integrated Lights-Out 6 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 800 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Intel VROC SATA Software RAID |
| Channel Qty | 8 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Storage Controller (2nd) | |
| Type | 2 x NVMe - PCIe 3.0 x8 |
| Controller Interface Type | NVM Express |
| Storage Controller Name | HPE NS204i-p |
| Channel Qty | 2 |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 2 x 480 GB |
| Interface Type | PCI Express 3.0 x8 (NVMe) |
| Features | Boot drive, NVM Express (NVMe), RAID 1 - factory configured |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 23.1 in |
| Height | 18.2 in |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4410Y |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
