Storage controller - HBA - 8 Channel - M.2 NVMe Card - PCIe 3.0 x16
| Main Specifications | |
|---|---|

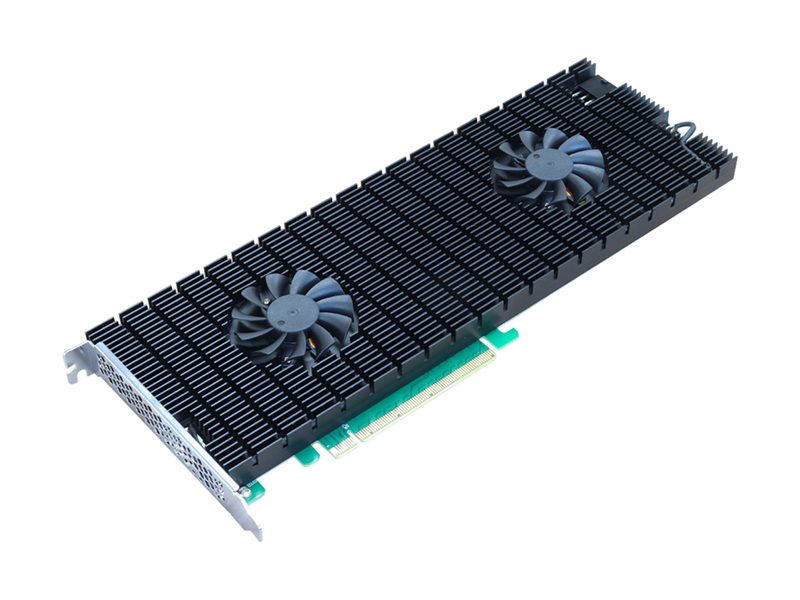

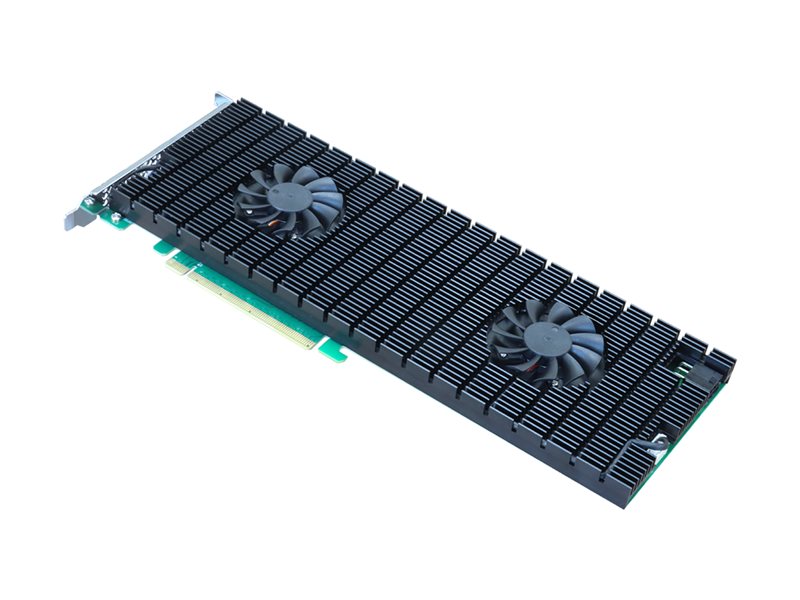

| Product Description | HighPoint Rocket 1108A - storage controller - HBA - M.2 NVMe Card - PCIe 3.0 x16 |
| Device Type | Storage controller - plug-in card |
| Bus Type | PCIe 3.0 x16 |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 8 Gbit/s |
| Supported Devices | Solid state drive |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| System Requirements | Microsoft Windows 10 / 11, Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Hyper-V Server, Linux Kernel 3.10 or later, Apple macOS 10.13 or later, FreeBSD 12.1 or later, VMware ESXi 6.7 |
| Dimensions (WxDxH) | 0.8 in x 6.5 in x 4.4 in |
| Weight | 27.19 oz |
| General | |
| Device Type | Storage controller - plug-in card |
| Host Bus | PCIe 3.0 x16 |
| Expansion / Connectivity | |
| Interfaces | 8 x M.2 Card - M.2 Card |
| Miscellaneous | |
| Features | Anodized aluminum heatsink, built-in low noise cooling fan, Hyper Cool technology, HBA Mode |
| MTBF | 920,585 hours |
| Compliant Standards | FCC, REACH, WEEE, RoHS |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows 10 / 11, Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Hyper-V Server, Linux Kernel 3.10 or later, Apple macOS 10.13 or later, FreeBSD 12.1 or later, VMware ESXi 6.7 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 8 Gbit/s |
| Supported Devices | Solid state drive |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| Dimensions & Weight | |
| Width | 0.8 in |
| Depth | 6.5 in |
| Height | 4.4 in |
| Weight | 27.19 oz |
