Switch - L3 - managed - 32 x 10/100/1000 + 16 x 2.5GBase-T + 4 x 10 Gigabit Ethernet - desktop, rack-mountable
| Main Specifications | |
|---|---|

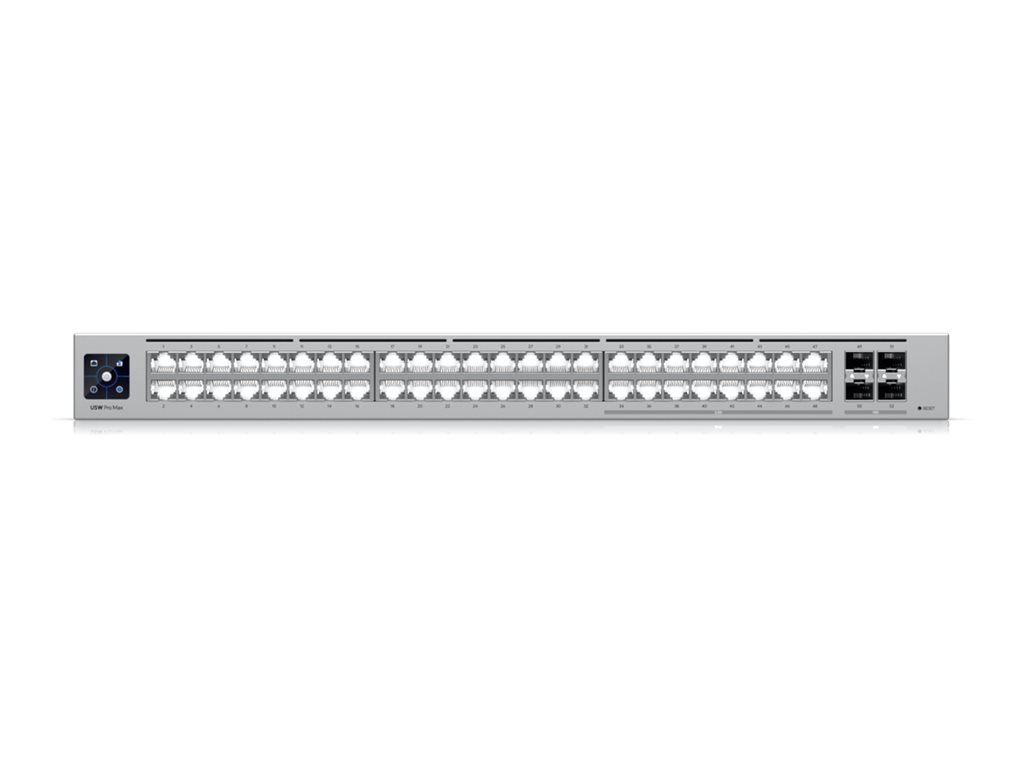

| Product Description | Ubiquiti UniFi Switch Pro Max 48 - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Ports | 32 x 10/100/1000 + 16 x 2.5GBase-T + 4 x 10 Gigabit Ethernet |
| Performance | Non-blocking switching throughput: 112 Gbps ¦ Switching capacity: 224 Gbps |
| Routing Protocol | STP, RSTP |
| Features | Steel housing, reset button, IGMP snooping, port disable, RSTP support, port isolation, Storm Control, Voice VLAN, port mirroring, port aggregation, LACP, multicast/broadcast rate limiting, MAC address authentication, flow control, 802.1x authentication, Jumbo Frames support, loop protection, DHCP snooping, DHCP protection, egress rate limiting, LLDP-MED, ACL support, DHCP relay, Inter-VLAN Routing, static routing, Etherlighting ports, LED status indicators, VLAN support |
| Compliant Standards | IEEE 802.1x |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 12.8 in x 1.7 in |
| Weight | 10.58 lbs |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Ports | 32 x 10/100/1000 + 16 x 2.5GBase-T + 4 x 10 Gigabit Ethernet |
| Performance | Non-blocking switching throughput: 112 Gbps ¦ Switching capacity: 224 Gbps |
| Routing Protocol | STP, RSTP |
| Features | Steel housing, reset button, IGMP snooping, port disable, RSTP support, port isolation, Storm Control, Voice VLAN, port mirroring, port aggregation, LACP, multicast/broadcast rate limiting, MAC address authentication, flow control, 802.1x authentication, Jumbo Frames support, loop protection, DHCP snooping, DHCP protection, egress rate limiting, LLDP-MED, ACL support, DHCP relay, Inter-VLAN Routing, static routing, Etherlighting ports, LED status indicators, VLAN support |
| Compliant Standards | IEEE 802.1x |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | RPS (Redundant Power Supply), status, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 32 x 10/100/1000 Base-T RJ-45 ¦ 16 x 2.5GBase-T RJ-45 ¦ 4 x 10GBase-T SFP+ |
| Miscellaneous | |
| Included Accessories | Rack mount kit, power cord |
| Compliant Standards | SGCC, FCC, IC |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 100 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 12.8 in |
| Height | 1.7 in |
| Weight | 10.58 lbs |
