Switch - L3 - managed - 48 x 10/100/1000 (UPOE+) - rack-mountable - UPOE+ (822 W) - federal government
| Main Specifications | |
|---|---|

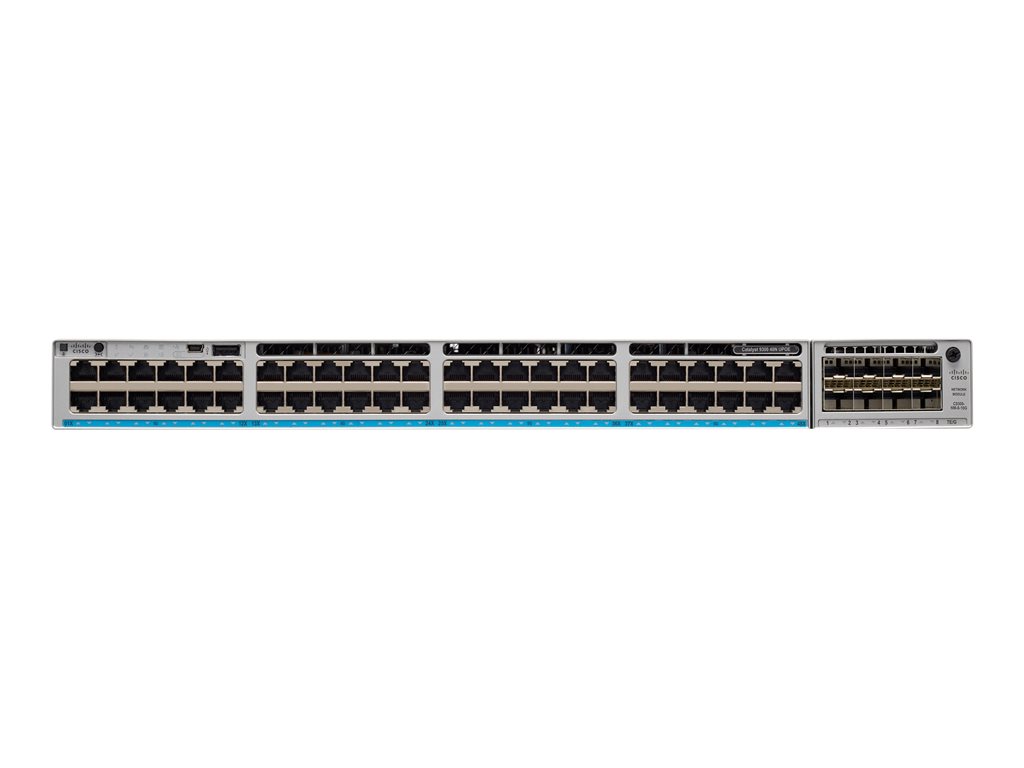

| Product Description | Cisco Catalyst 9300 - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE+) |
| Power Over Ethernet (PoE) | UPOE+ |
| PoE Budget | 822 W |
| Performance | Switching capacity: 256 Gbps ¦ Stacking bandwidth: 736 Gbps ¦ Forwarding rate: 190.48 Mpps ¦ Forwarding rate with stacking: 547.62 Mpps |
| Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | DHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Power | (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 19.2 in x 1.7 in |
| Weight | 17.02 lbs |
| Pricing Type | Federal government |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE+) |
| Power Over Ethernet (PoE) | UPOE+ |
| PoE Budget | 822 W |
| Performance | Switching capacity: 256 Gbps ¦ Stacking bandwidth: 736 Gbps ¦ Forwarding rate: 190.48 Mpps ¦ Forwarding rate with stacking: 547.62 Mpps |
| Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | DHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 UPOE+ ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Miscellaneous | |
| MTBF | 227,410 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Pricing Type | Federal government |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | (50 - 60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco Network Essentials (1 year) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 19.2 in |
| Height | 1.7 in |
| Weight | 17.02 lbs |
