Mid tower - micro ATX - windowed side panel (tempered glass) - no power supply (ATX) - white - USB/Audio
| Main Specifications | |
|---|---|

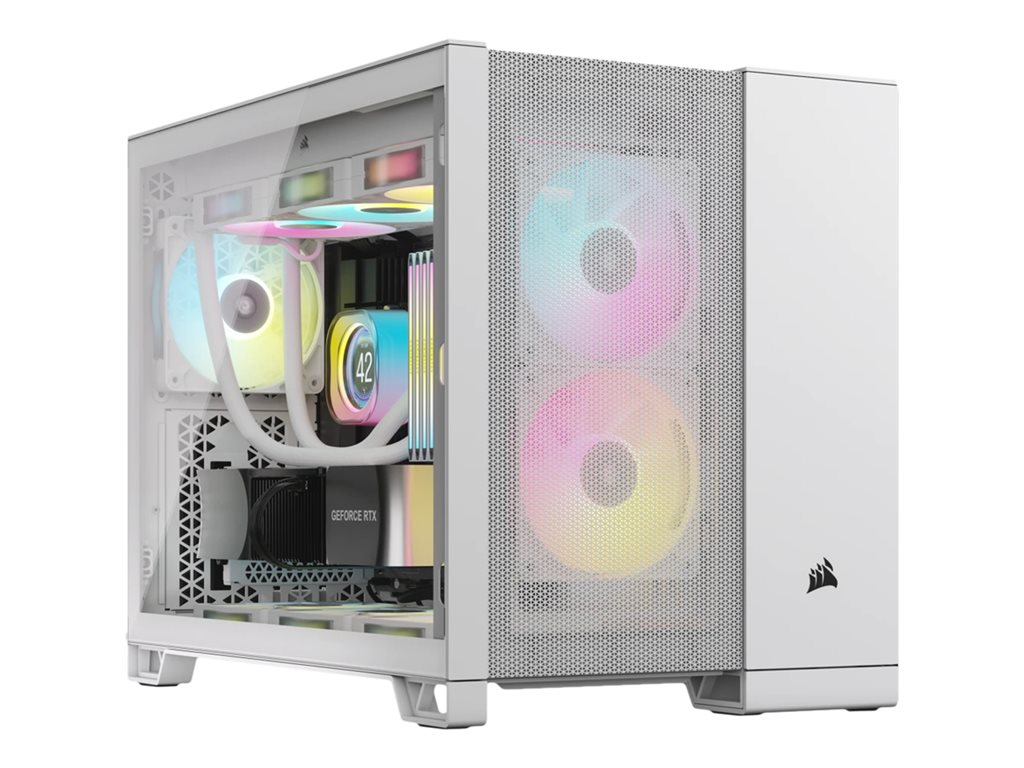

| Product Description | CORSAIR 2500D AIRFLOW - mid tower - micro ATX |
| Product Type | System cabinet |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes, tempered glass |
| Color | White |
| I/O Connectors | 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x headphone/microphone |
| Supported Motherboards | microATX, Mini-ITX |
| System Cabinet Features | Dual chamber layout, BTF design compatible, meshed front panel, meshed bottom, meshed top, meshed side panel |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 12 in x 18.9 in x 14.8 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Micro ATX |
| Supported Motherboards | microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Color | White |
| Cooling System | Side: 120 mm fan mount x 2 / 240mm radiator supported ¦ Rear: 120 mm fan mount x 1 / 120 mm radiator supported ¦ Bottom: 120 mm fan mount x 3 / 3 x 140 mm fan supported or 280/360 mm radiator supported ¦ Top: 120 mm fan mount x 3 / 3 x 140 mm fan supported or 280/360 mm radiator supported ¦ Front: 120 mm fan mount x 2 / 2 x 140 mm fan or up to 240/280mm radiator supported |
| CPU Cooler Max Height | 180 mm |
| Video Card Max Length | 400 mm |
| Power Supply Max Length | 225 mm |
| System Cabinet Features | Dual chamber layout, BTF design compatible, meshed front panel, meshed bottom, meshed top, meshed side panel |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 3.5" ¦ 2 (total) / 2 (free) x internal - 2.5" |
| Expansion Slots | 4 |
| Interfaces | 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Width | 12 in |
| Depth | 18.9 in |
| Height | 14.8 in |
